IC RESET GENERATOR SOT23 The APX803S is used for microprocessor (μP) supervisory circuits to monitor the power supplies in μP and digital systems. The APX803S is available with different reset thresholds suitable for operation with a variety of supply voltages.
173
Jan 31, 2022
Winston Ann
What is POWER-ON RESET? What does POWER-ON RESET mean? POWER-ON RESET meaning & explanation
The APX803S is used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. The APX803S is available with different reset thresholds suitable for operation with a variety of supply voltages. Low supply current makes the APX803S ideal for use in portable equipment. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
APX803S-31SA-7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.21222 | $0.21 |
| 10+ | $0.2002 | $2 |
| 100+ | $0.18887 | $18.89 |
| 500+ | $0.17818 | $89.09 |
| 1000+ | $0.16809 | $168.09 |
The following figure is the diagram of APX803S pinout.
Pinout
The followings are APX803S Symbol, Footprint, and 3D Model.

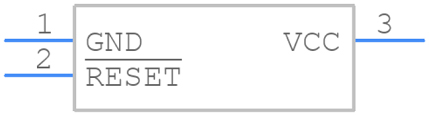

PCB Symbol

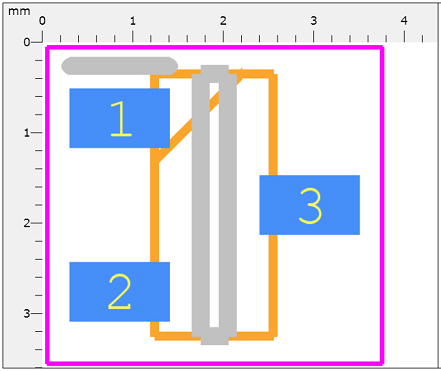

PCB Footprint

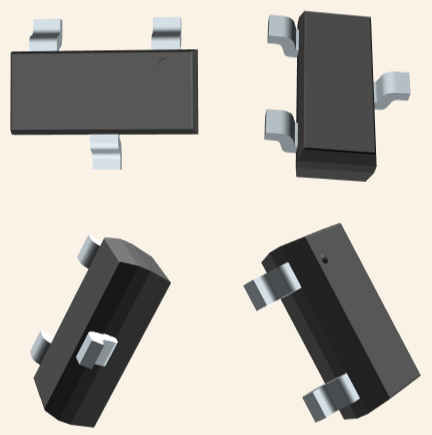

3D Model
The APX803S is used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5.0V, 3.3V, 3.0V and 2.5V powered circuits. These circuits perform a single function: they assert a reset signal on power up and whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for a fixed period of time after VCC has risen above the reset threshold. For the APX803S this period is a minimum of 1ms while for other APX803S variants it is at least 140ms. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1V. The APX803S is available with different reset thresholds suitable for operation with a variety of supply voltages. Low supply current makes the APX803S ideal for use in portable equipment. The APX803S is available in two pin out variants of the 3-pin SOT23 package.
This article will introduce APX803S systematically from its features, pinout to its specifications, applications, also including APX803S datasheet and so much more.
● Precision Monitoring of 2.5V, 3.0V, 3.3V, and 5.0V Power-Supply Voltages
● Fully Specified Over Temperature
● Power-On/Power Supply Glitch Reset Pulse
◆ APX803S00: 1.7ms (Typ.)
◆ APX803S05: 50ms (Typ.)
◆ APX803S: 240ms (Typ.)
● 10µA Supply Current (Typ.)
● Guaranteed Reset Valid to VCC = 1V
● Totally Lead-Free & Fully RoHS Compliant
● Halogen and Antimony Free. “Green” Device

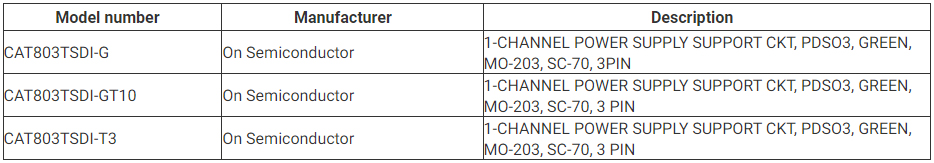

Diodes Incorporated APX803S-31SA-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated APX803S-31SA-7.
Diodes Incorporated APX803S-31SA-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated APX803S-31SA-7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 24 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 2011 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Type | Simple Reset/Power-On Reset | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Output | Open Drain or Open Collector | |
| JESD-30 Code | R-PDSO-G3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Max (Vsup) | 5.5V | |
| Supply Voltage-Min (Vsup) | 1V | |
| Number of Channels | 1Channel | |
| Adjustable Threshold | NO | |
| Reset | Active Low | |
| Voltage - Threshold | 3.08V | |
| Number of Voltages Monitored | 1 | |
| Reset Timeout | 140ms Minimum | |
| Length | 2.9mm | |
| RoHS Status | ROHS3 Compliant |

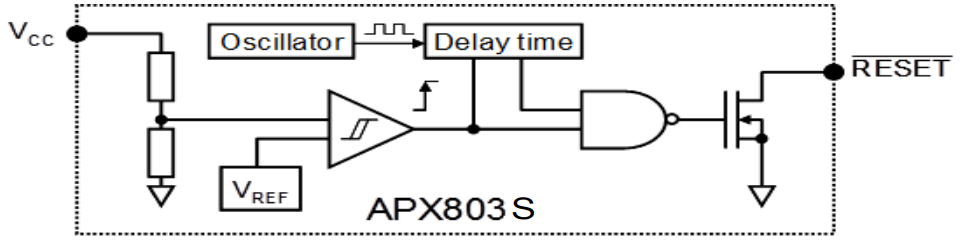

Functional Block Diagram
● Computers
● Controllers
● Intelligent Instruments
● Critical µP and µC Power Monitoring
● Portable/Battery Powered Equipment
The following is the Typical Applications Circuit of APX803S.

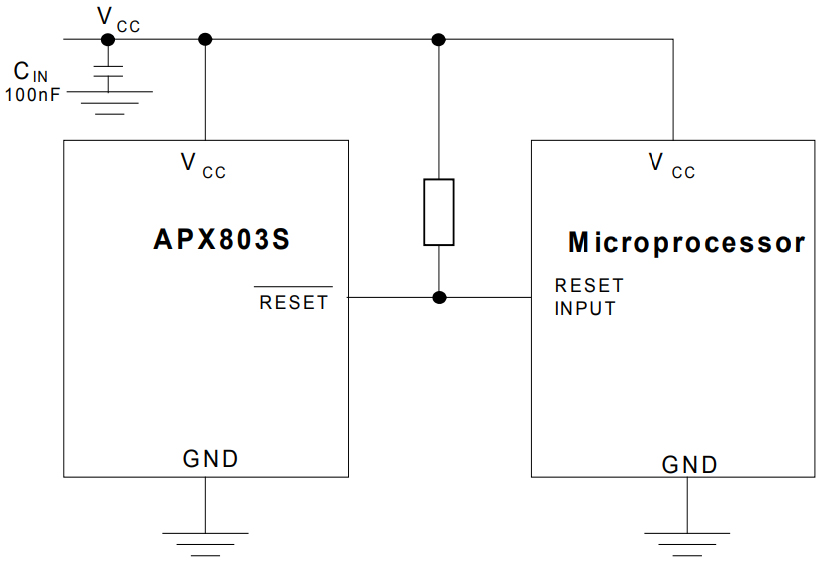

Typical Applications Circuit
The following diagrams show the APX803S package.

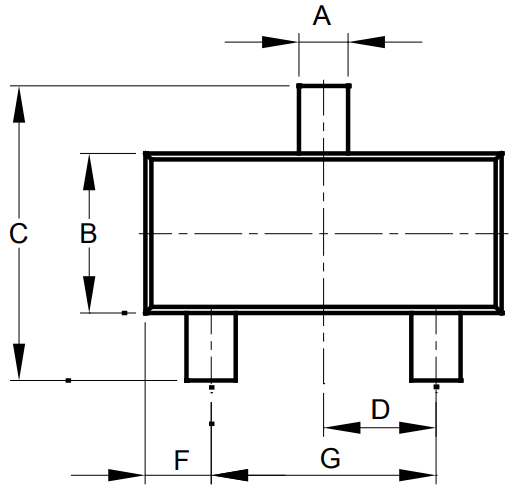

View A

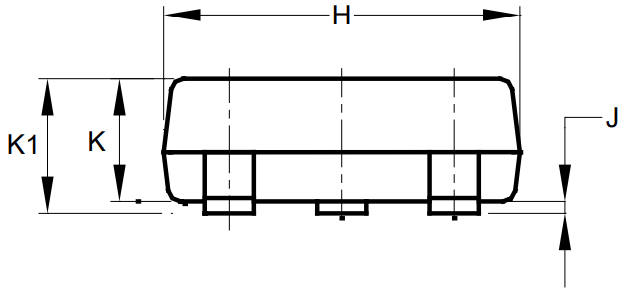

View B

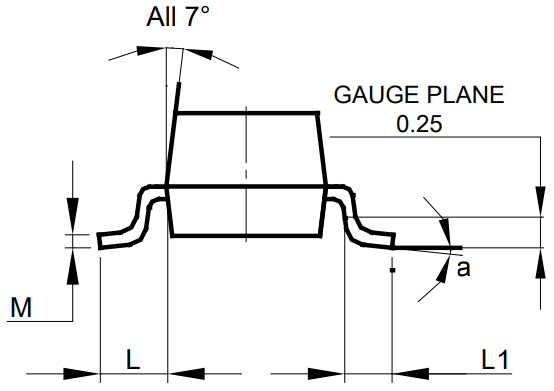

View C
The following is the Marking Information of APX803S.

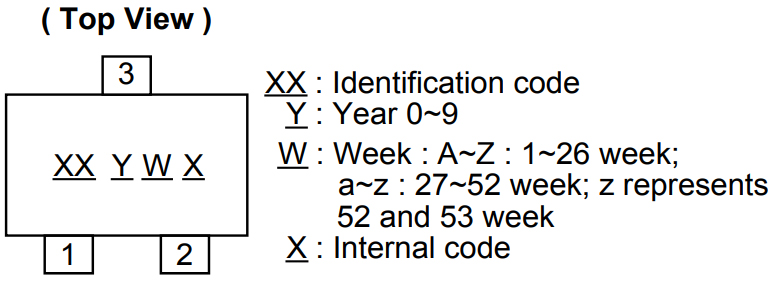

Marking Information

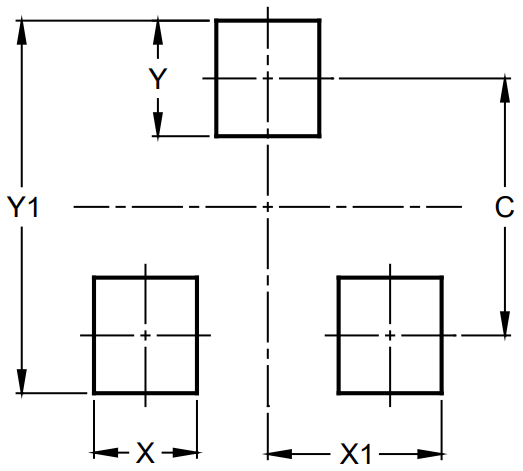

The following diagram shows the APX803S Suggested Pad Layout.
Suggested Pad Layout
Diodes Incorporated delivers high-quality semiconductor products to the world's leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers' needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Download datasheets and manufacturer documentation for APX803S-31SA-7
