AR8031 Ethernet Transceiver: Features, Equivalent and Datasheet

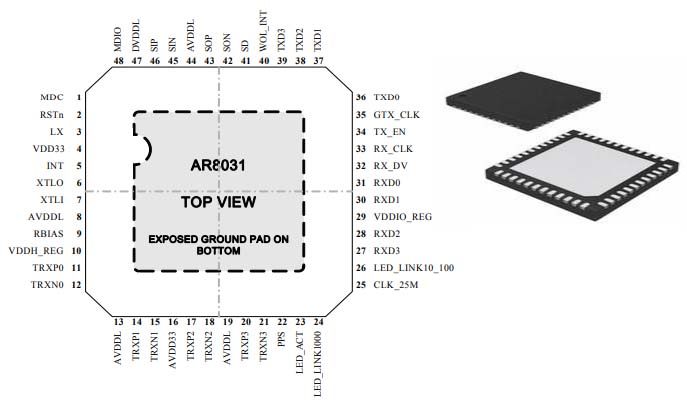

The following figure is the diagram of AR8031 pinout.

Pinout

The followings are AR8031 Symbol, Footprint, and 3D Model.

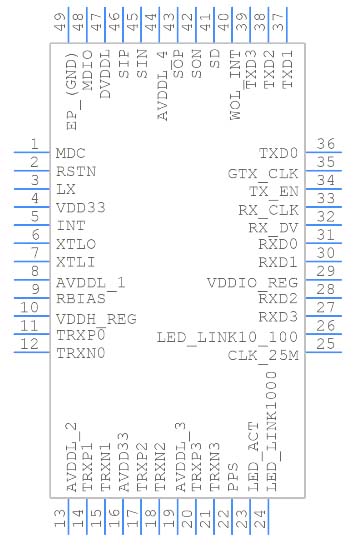

PCB Symbol

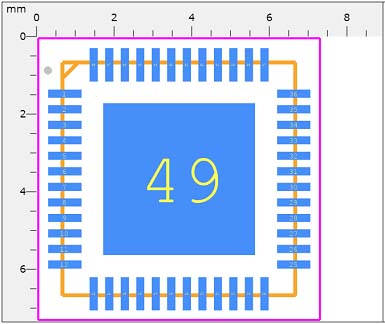

PCB Footprint

3D Model

The AR8031 is part of the Arctic family of devices — which includes the AR8031, AR8033, and AR8035. The AR8031 is Atheros' 4^th generation, single port, 10/100/1000 Mbps, Trispeed Ethernet PHY. It supports both RGMII and SGMII interfaces to the MAC. The AR8031 provides a low power, low BOM (Bill of Materials) cost solution for comprehensive applications including enterprise, carrier and home networks such as CPE, home gateway, enterprise switch, carrier switch/router, mobile base station and base station controller, optical module and media converter, industry automation and measurement. The AR8031 integrates Atheros Green ETHOS^® power saving technologies and significantly saves power not only during the work time, but also overtime. The AR8031 also supports IEEE 802.3az EEE standard (Energy Efficient Ethernet) and Atheros proprietary SmartEEE. The AR8031 requires only a single, 3.3V power supply. The AR8031 supports both 1588v2 and synchronous Ethernet to offer a complete time synchronization solution to meet the next generation network requirements. The AR8031 can attain an additional 25% power savings when a cable length is detected that is <30M vs. standard power consumption for a 100M Cat5 cable. AR8031 supports both crystal and external clock input as reference.

This article provides you with a basic overview of the AR8031 Ethernet Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what AR8031 is.

● 10/100/1000 BASE-T IEEE 802.3 compliant

● Supports 1000 BASE-T PCS and autonegotiation with next page support

● Supports RGMII and / or SGMII interfaces to MAC devices

● Supports Fiber and Copper combo mode when MAC interface works in RGMII mode

● Supports additional IEEE 1000 BASE-X and 100 BASE-FX with Integrated SerDes

● RGMII timing modes support internal delay and external delay on Rx path

● Supports Atheros Green ETHOS^® power saving modes with internal automatic DSP power saving scheme

● Supports IEEE 802.3az (Energy Efficient Ethernet)

● Supports SmartEEE which allows MAC/SoC devices withoug 802.3az support to function as the complete 802.3az system

● Supports Wake-on-LAN (WoL) to detect magic packet and notify the sleeping system to wake up

● Fully integrated digital adaptive equalizers, echo cancellers, and Near End Crosstalk (NEXT) cancellers

● Supports Synchronous Ethernet with selectable recovered clock output

● Robust Cable Discharge Event (CDE) protection of ±6 kV

● Error-free operation over up to 140 meters of CAT5 cable

● Automatic channel swap (ACS)

● Automatic MDI/MDIX crossover

● Automatic polarity correction

● IEEE 802.3u compliant Auto-Negotiation

● Jumbo Frame support up to 10KB (full duplex)

● Multiple loopback modes for diagnostics

● Robust Surge Protection with ±750 V/differential mode and ±4 kV/common mode

● Cable Diagnostic Test (CDT)

● Single power supply: 3.3V, optional for external regulator for core voltage

● 6mm x 6mm, 48-pin QFN package

● Industry temperature (I-temp) option available.

Qualcomm AR8031-AL1B technical specifications, attributes, parameters and parts with similar specifications to Qualcomm AR8031-AL1B.

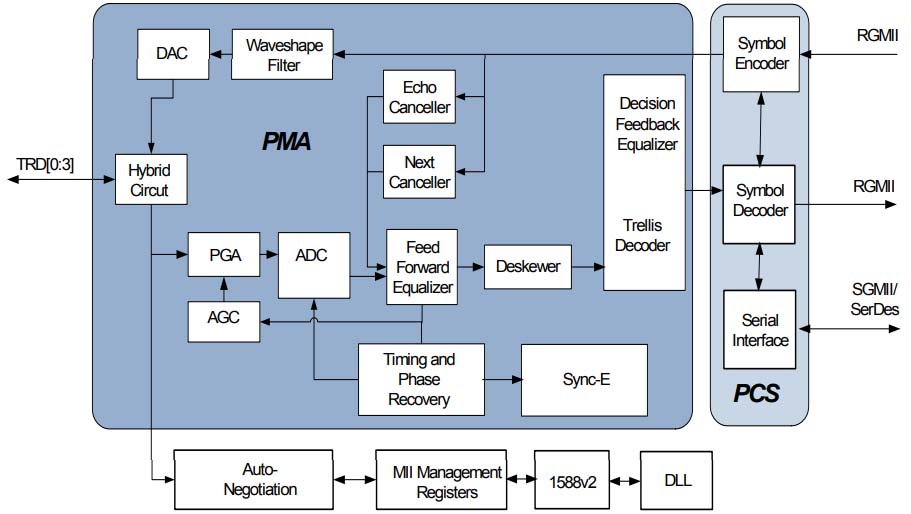

The following is the Block Diagram of AR8031.

AR8031 Functional Block Diagram

● CPE

● Home gateway

● Enterprise switch

● Carrier switch/router

● Mobile base station and base station controller

● Optical module and media converter

● Industry automation and measurement

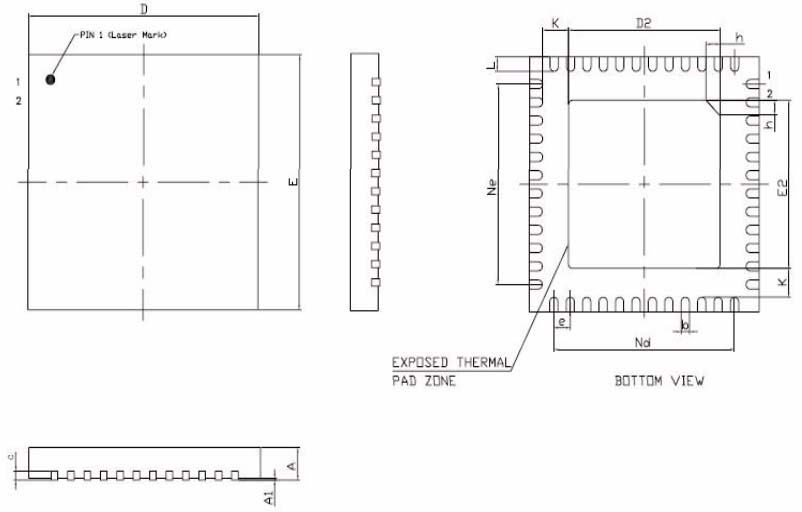

The following diagram shows the AR8031 package.

Package

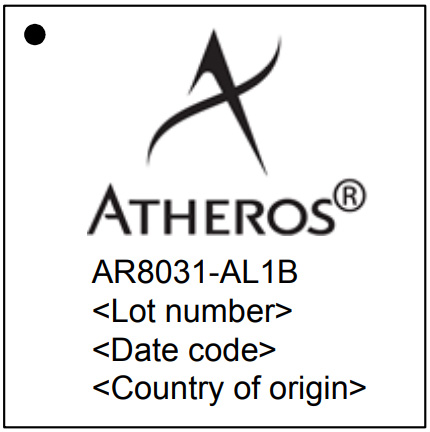

The following is the Topside Marking of AR8031.

Topside Marking
