IC EEPROM 8KBIT 1MHZ 8DIP The AT24C08D provides 8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 1,024 words of 8 bits each.
172
Mar 30, 2022
Elroy Forster
What Is EEPROM?
IC EEPROM 8KBIT 1MHZ 8DIP
The AT24C08D provides 8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 1,024 words of 8 bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
AT24C08D-PUM
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.50965 | $1.51 |
| 10+ | $1.4242 | $14.24 |
| 100+ | $1.34359 | $134.36 |
| 500+ | $1.26753 | $633.77 |
| 1000+ | $1.19579 | $1195.79 |
The following figure is the diagram of AT24C08D Pinout.
Pinout

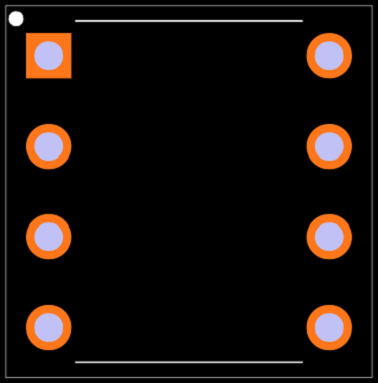

The followings are AT24C08D Footprint and 3D Model.
Footprint
3D Model
The AT24C08D provides 8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 1,024 words of 8 bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, 8-ball VFBGA and 4-ball WLCSP packages. All packages operate from 1.7V to 3.6V. The AT24C08D is internally organized as 64 pages of 16 bytes each.
This article provides you with a basic overview of the AT24C08D I²C-Compatible Serial EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what AT24C08D is.
● Low-Voltage Operation:
◆ Vcc = 1.7V to 3.6V
● Internally Organized as 1,024 x 8 (8K)
● Industrial Temperature Range -40°C to +85°C
● I2C-Compatible (2-Wire) Serial Interface:
◆ 100 kHz Standard mode, 1.7V to 3.6V
◆ 400 kHz Fast mode, 1.7V to 3.6V
◆ 1 MHz Fast Mode Plus (FM+), 2.5V to 3.6V
● Schmitt Triggers, Filtered Inputs for Noise Suppression
● Bidirectional Data Transfer Protocol
● Write-Protect Pin for Full Array Hardware Data Protection (except WLCSP)
● Ultra Low Active Current (1 mA maximum) and Standby Current (0.8 μA maximum)
● 16-Byte Page Write Mode:
◆ Partial page writes allowed
● Random and Sequential Read Modes
● Self-Timed Write Cycle within 5 ms Maximum
● ESD Protection > 4,000V
● High Reliability:
◆ Endurance: 1,000,000 write cycles
◆ Data retention: 100 years
● Green Package Options (Lead-free/Halide-free/RoHS compliant)
● Die Sale Options: Wafer Form and Bumped Wafers
Microchip Technology AT24C08D-PUM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT24C08D-PUM.
Microchip Technology AT24C08D-PUM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT24C08D-PUM.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Operating Temperature | -40°C~85°C TC | |
| Packaging | Tube | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| Voltage - Supply | 1.7V~3.6V | |
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.8V | |
| Terminal Pitch | 2.54mm | |
| Base Part Number | AT24C08 | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 1.7V | |
| Interface | 2-Wire, I2C, Serial | |
| Memory Size | 8Kb 1K x 8 | |
| Operating Mode | SYNCHRONOUS |
| Product Attribute | Attribute Value | |
|---|---|---|
| Clock Frequency | 1MHz | |
| Access Time | 4.5μs | |
| Memory Format | EEPROM | |
| Memory Interface | I2C | |
| Memory Width | 8 | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 8 kb | |
| Serial Bus Type | I2C | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Length | 9.271mm | |
| Height Seated (Max) | 5.334mm | |
| Width | 7.62mm | |
| RoHS Status | ROHS3 Compliant |

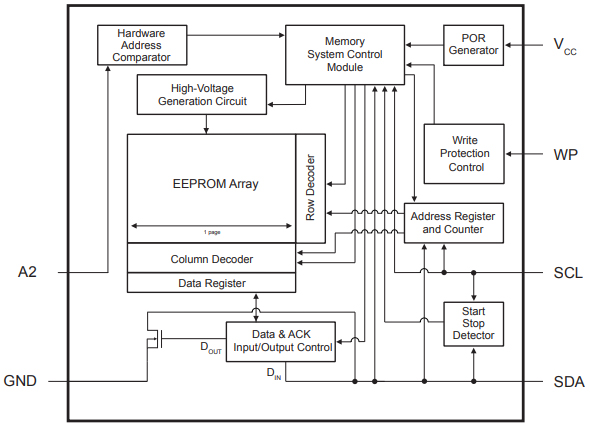

The following is the Block Diagram of AT24C08D.
Block Diagram
| Model number | Manufacturer | Description |
| AT24C08D-WWU11M | Microchip Technology Inc | 1 MHz, 8192 bit, EEPROM, EAR99 |
| AT24C08D-MAHM-E | Microchip Technology Inc | 0.4 MHz, 8192 bit, EEPROM, EAR99 |

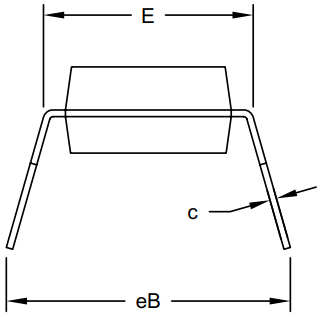

The following diagrams show the AT24C08D Package.
Top View
Side View
End View
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
