AT24CM01 Serial EEPROM: Pinout, Equivalent and Datasheet

Memory AT24CM01 Non-Volatile 8-SOIC (0.209, 5.30mm Width) 1Mb 128K x 8 EEPROM -40°C~85°C TA 2.5V~5.5V I2C 5V 1MHz 1.27mm EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V 8-Pin SOIC EIAJ T/R

68

Nov 16, 2021

Tracy Noah

Using EEPROM with Arduino - Internal & External

Memory AT24CM01 Non-Volatile 8-SOIC (0.209, 5.30mm Width) 1Mb 128K x 8 EEPROM -40°C~85°C TA 2.5V~5.5V I2C 5V 1MHz 1.27mm EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V 8-Pin SOIC EIAJ T/R

The AT24CM01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 131,072 words of eight bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

AT24CM01-SHD-T

8000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.95324$1.95
10+ $1.84268$18.43
100+ $1.73838$173.84
500+ $1.63998$819.99
1000+ $1.54715$1547.15
Unit Price:$1.95324
Subtotal: $1.95
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

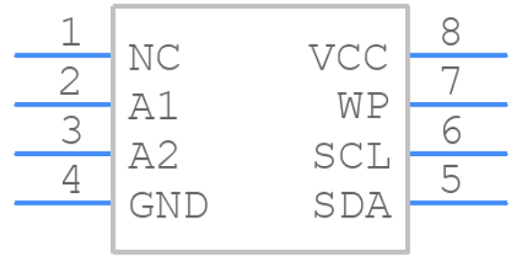

AT24CM01 Pinout

AT24CM01 CAD Model

PCB Symbol

PCB Footprint

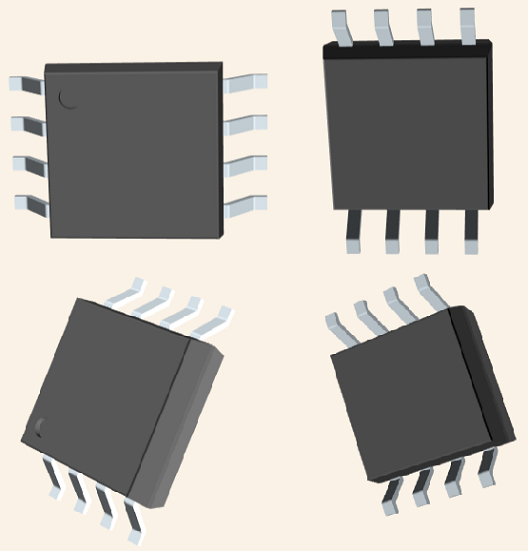

3D Model

AT24CM01 Overview

The AT24CM01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 131,072 words of eight bits each. The device's cascading feature allows up to four devices to share a common two-wire bus. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The device is available in space-saving 8-lead SOIC, 8-Lead TSSOP, 8-Lead SOIJ and 8-ball WLCSP packages. All packages operate from 1.7V to 5.5V. The AT24CM01 operates as a slave device and utilizes a simple I2C-compatible two-wire digital serial interface to communicate with a host controller, commonly referred to as the bus master.

This article provides you with a basic overview of the AT24CM01 Serial EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what AT24CM01 is.

AT24CM01 Features

● Low-Voltage and Standard Voltage Operation:

   ◆ VCC = 1.7V to 5.5V

   ◆ VCC = 2.5V to 5.5V

● Internally Organized as 131,072 x 8 (1M)

● Industrial Temperature Range: -40°C to +85°C

● I2C-Compatible (Two-Wire) Serial Interface:

   ◆ 100 kHz Standard mode, 1.7V to 5.5V

   ◆ 400 kHz Fast mode, 1.7V to 5.5V

   ◆ 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

● Schmitt Triggers, Filtered Inputs for Noise Suppression

● Bidirectional Data Transfer Protocol

● Write-Protect Pin for Full Array Hardware Data Protection

● Ultra Low Active Current (3 mA maximum) and Standby Current (6 µA maximum)

● 256-byte Page Write Mode: Byte write and partial page writes allowed

● Random and Sequential Read Modes

● Self-Timed Write Cycle: All Write operations complete within 5 ms maximum

● Built in Error Detection and Correction

● High Reliability:

   ◆ Endurance: 1,000,000 write cycles

   ◆ Data retention: 100 years

● Green Package Options (Lead-free/Halide-free/RoHS compliant)

● Die Sale Options: Wafer Form and Bumped Wafers

Specifications

Microchip Technology AT24CM01-SHD-T technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT24CM01-SHD-T.

AT24CM01-SHD-T Tech Specifications

Microchip Technology AT24CM01-SHD-T technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT24CM01-SHD-T.

Product Attribute Attribute Value
Factory Lead Time15 Weeks
Contact PlatingGold
MountSurface Mount
Mounting TypeSurface Mount
Package / Case8-SOIC (0.209, 5.30mm Width)
Number of Pins8Pins
Memory TypesNon-Volatile
Operating Temperature-40°C~85°C TA
PackagingTape & Reel (TR)
Published1997
JESD-609 Codee4
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)3 (168 Hours)
Number of Terminations8Terminations
Voltage - Supply2.5V~5.5V
Terminal PositionDUAL
Product Attribute Attribute Value
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage5V
Terminal Pitch1.27mm
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberAT24CM01
Supply Voltage-Max (Vsup)5.5V
Power Supplies2.7/5V
Supply Voltage-Min (Vsup)2.5V
Interface2-Wire, I2C, Serial
Memory Size1Mb 128K x 8
Nominal Supply Current3mA
Clock Frequency1MHz
Access Time550ns
Memory FormatEEPROM
Memory InterfaceI2C
Memory Width8
Product Attribute Attribute Value
Write Cycle Time - Word, Page5ms
Density1 Mb
Standby Current-Max0.000001A
Serial Bus TypeI2C
Endurance1000000 Write/Erase Cycles
Write Cycle Time-Max (tWC)5ms
Data Retention Time-Min40
Write ProtectionHARDWARE
I2C Control Byte1010DDMR
Length5.29mm
Height Seated (Max)2.16mm
Width5.24mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

AT24CM01 Functional Block Diagram

Block Diagram

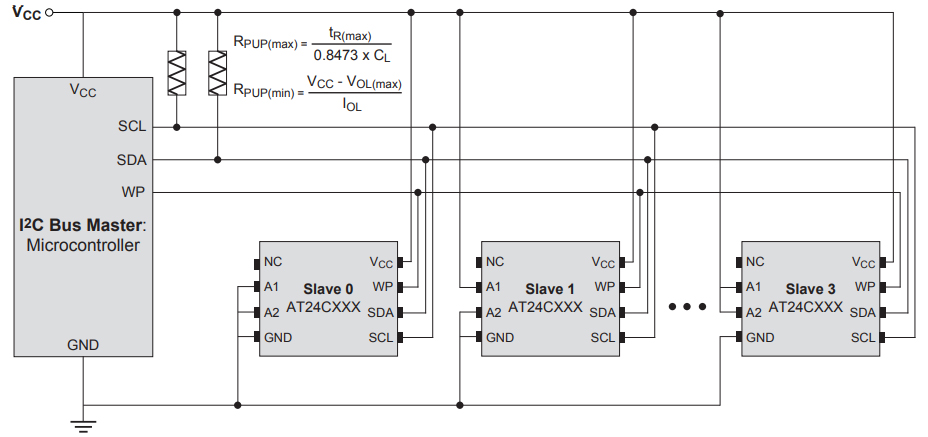

System Configuration Using Two-Wire Serial EEPROMs

AT24CM01 Equivalent

                  Model number                            Manufacturer                              Description
AT24CM01-SUD Atmel Corporation EEPROM
AT24CM01-SHD Atmel Corporation EEPROM
AT24CM01-UHM Atmel Corporation EEPROM
AT24CM01-X11D Atmel Corporation EEPROM
AT24CM01-UUM Atmel Corporation EEPROM
AT24CM01-SSUD-B Atmel Corporation EEPROM
AT24CM01-WWU11D-B Atmel Corporation EEPROM
AT24CM01-SSUM-T Microchip Technology Inc EEPROM
AT24CM01-SSUM-B Microchip Technology Inc EEPROM
AT24CM01-SS11D-T Atmel Corporation EEPROM

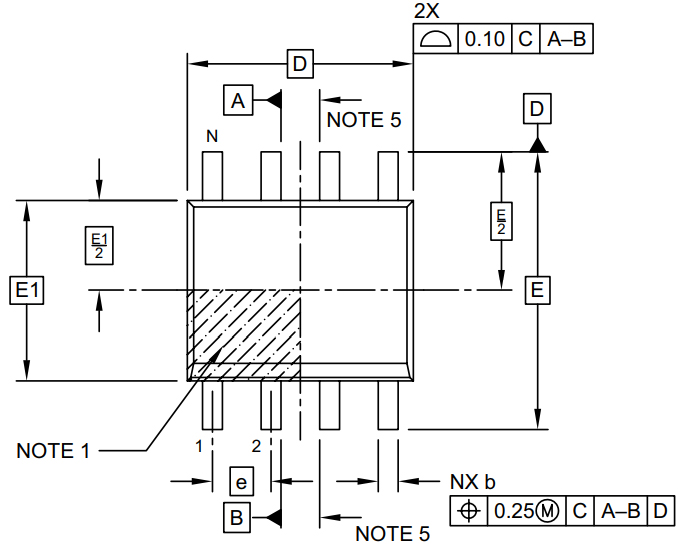

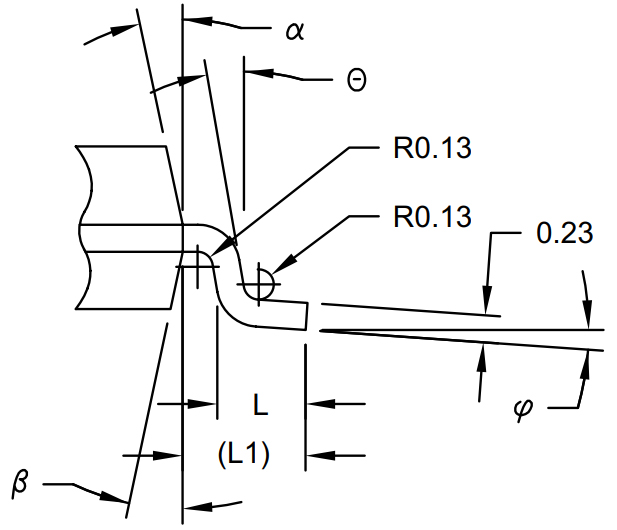

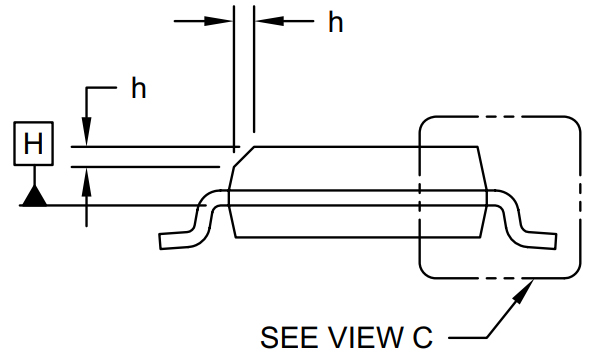

AT24CM01 Package

Top View

Side View

View A-A

View C

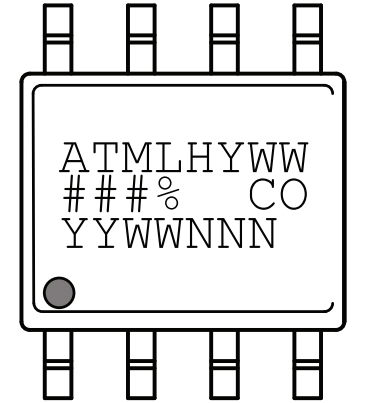

Package Marking Information



Recommended Land Pattern

AT24CM01 Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
