AT28BV256 EEPROMs: Pinout, Equivalent and Datasheet

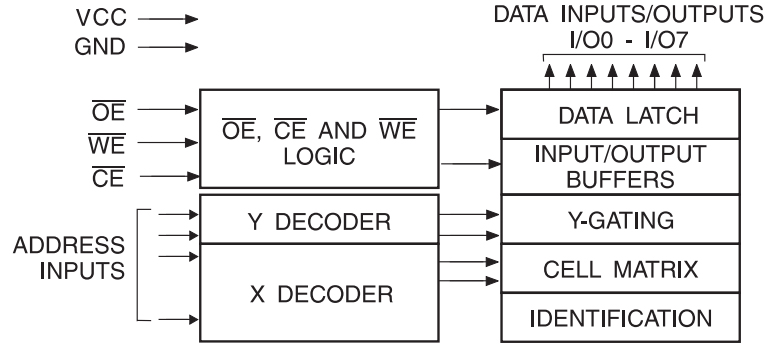

The AT28BV256 is a high-performance electrically erasable and programmable readonly memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel's advanced nonvolatile CMOS technology, the device offers access times to 200 ns with power dissipation of just 54 mW. When the device is deselected, the CMOS standby current is less than 200 µA. The AT28BV256 is accessed like a Static RAM for the read or write cycle without the need for external components. The device contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. During a write cycle, the addresses and 1 to 64 bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the device will automatically write the latched data using an internal control timer. The end of a write cycle can be detected by Data polling of I/O7. Once the end of a write cycle has been detected a new access for a read or write can begin.

This article provides you with a basic overview of the AT28BV256 EEPROMs, including its pin descriptions, features and specifications, etc., to help you quickly understand what AT28BV256 is.

● Single 2.7V - 3.6V Supply

● Fast Read Access Time – 200 ns

● Automatic Page Write Operation

   ◆ Internal Address and Data Latches for 64 Bytes

   ◆ Internal Control Timer

● Fast Write Cycle Times

   ◆ Page Write Cycle Time: 10 ms Maximum

   ◆ 1- to 64-byte Page Write Operation

● Low Power Dissipation

   ◆ 15 mA Active Current

   ◆ 20 µA CMOS Standby Current

● Hardware and Software Data Protection

● Data Polling for End of Write Detection

● High Reliability CMOS Technology

   ◆ Endurance: 10,000 Cycles

   ◆ Data Retention: 10 Years

● JEDEC Approved Byte-wide Pinout

● Industrial Temperature Ranges

● Green (Pb/Halide-free) Packaging Option Only

Microchip Technology AT28BV256-20SU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT28BV256-20SU.

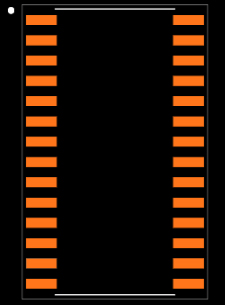

Package

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
