The AT89C52 is an 8-bit microcontroller with an 8K bytes flash. This post will unlock more details about AT89C52. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
AT89C52-24AC
AT89C52 Pinout
AT89C52 Symbol

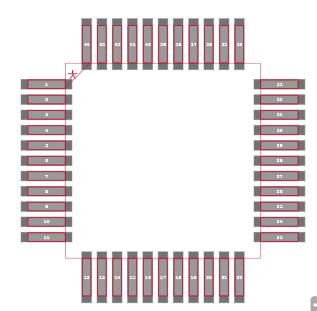

AT89C52 Footprint
AT89C52 3D Model
The AT89C52 is an 8-bit microcontroller and belongs to Atmel's 8051 families.
The AT89C52 is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of Flash programmable and erasable read-only memory (PEROM). The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C52 is a powerful microcomputer that provides a highly-flexible and cost-effective solution to many embedded control applications.
• Compatible with MCS-51™ Products
• 8K Bytes of In-System Reprogrammable Flash Memory
• Endurance: 1,000 Write/Erase Cycles
• Fully Static Operation: 0 Hz to 24 MHz
• Three-level Program Memory Lock
• 256 x 8-bit Internal RAM
• 32 Programmable I/O Lines
• Three 16-bit Timer/Counters
• Eight Interrupt Sources
• Programmable Serial Channel
• Low-power Idle and Power-down Modes
The Atmel microcontroller can be programmed using a variety of software available on the market. The most popular platforms are Arduino and Keil uVision, to mention a few. Keil is recommended if you want to do serious programming and expand with community help.
To program the Atmel microcontroller, we'll need an IDE (Integrated Development Environment), which acts as a programming environment. A compiler converts our software into HEX files, which can be read by MCUs. Our hex file is dumped into our MCUs using an IPE (Integrated Programming Environment).
Keil uVision IDE is an integrated development environment.
MAX232 with RS232 to USB converter as programming hardware
USBASP is a programmer.
A programmer is required to dump or upload our code into an Atmel IC; the most often used programmer is the USBASP, which must be purchased separately. Simulating your program in software before attempting it on hardware will also save you time. As a result, you can simulate your applications using software such as Labcenter's ISIS proteus.
AT89C52-Programming the Flash Memory
AT89C52-Verifying the Flash Memory
AT89C52-Flash Programming and Verification Waveforms - High-voltage Mode (VPP=12V)
AT89C52 Programming and Verification Waveforms - Low-voltage Mode (VPP=5V)
Every code byte in the Flash array can be written, and the entire array can be erased, by using the appropriate combination of control signals. The write operation cycle is self-timed and once initiated, will automatically time itself to completion. All major programming vendors offer worldwide support for the Atmel microcontroller series. Please contact your local programming vendor for the appropriate software revision.
Microchip Technology AT89C52-24AC technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT89C52-24AC.
Microchip Technology AT89C52-24AC technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT89C52-24AC.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 44-TQFP | |
| Number of Pins | 44Pins | |
| Supplier Device Package | 44-TQFP (10x10) | |
| Memory Types | FLASH | |
| Number of I/Os | 32I/Os | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tray | |
| Series | 89C | |
| Published | 1997 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Max Operating Temperature | 70°C | |
| Min Operating Temperature | 0°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Frequency | 24MHz | |
| Base Part Number | AT89C52 | |
| Operating Supply Voltage | 5V | |
| Interface | SPI | |
| Max Supply Voltage | 6V | |
| Min Supply Voltage | 4V | |
| Memory Size | 8kB | |
| Oscillator Type | Internal | |
| Speed | 24MHz | |
| RAM Size | 256 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 4V~6V | |
| Number of Bits | 12Bits | |
| Core Processor | 8051 | |
| Program Memory Type | FLASH | |
| Core Size | 8-Bit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Program Memory Size | 8KB 8K x 8 | |
| Connectivity | SIO, UART/USART | |
| Access Time | 24 μs | |
| Data Bus Width | 8b | |
| Number of Inputs | 4Inputs | |
| Number of Timers/Counters | 3Timers/Counters | |
| Sampling Rate | 1 Msps | |
| Core Architecture | 8051 | |
| Max Frequency | 24MHz | |
| Number of A/D Converters | 1A/D Converter | |
| Number of Programmable I/O | 32Programmable I/Os | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
AT89C52 Package
Note: The AT89C51 datasheet of the Microcontroller and more detailed package can be found below.
Microchip Technology Inc. is a leading provider of microcontroller and analogue semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
