Arduino Uno to ATMEGA328P
MCU, 8BIT, AVR, 20MHZ, DIP-28; Controller Family/Series: AVR MEGA; Core Size: 8bit
ATMEGA328P is a high performance, low power controller from Microchip. This blog mainly introduces its pinout, datasheet, applications and other detailed information of ATMEGA328P.
ATMEGA328P-PN
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $6.82812 | $6.83 |
| 10+ | $6.44163 | $64.42 |
| 100+ | $6.07701 | $607.7 |
| 500+ | $5.73303 | $2866.52 |
| 1000+ | $5.40851 | $5408.51 |
The ATmega328P is a low power, CMOS 8-bit microcontrollers based on the AVR® enhanced RISC architecture. By executing instructions in a single clock cycle, the devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz, allowing the system designer to optimize power consumption versus processing speed.
Symbol
Footprint
3D Model
Microchip Technology ATMEGA328P-PN technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATMEGA328P-PN.
Microchip Technology ATMEGA328P-PN technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATMEGA328P-PN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 28-DIP (0.300, 7.62mm) | |
| Number of Pins | 28Pins | |
| Data Converters | A/D 6x10b | |
| Number of I/Os | 23I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~105°C TA | |
| Packaging | Tube | |
| Series | AVR® ATmega | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 28Terminations | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | NOT APPLICABLE | |
| Supply Voltage | 5V | |
| Terminal Pitch | 2.54mm | |
| Frequency | 20MHz | |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE | |
| Base Part Number | ATMEGA328P | |
| Qualification Status | Not Qualified | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Power Supplies | 2/5V | |
| Supply Voltage-Min (Vsup) | 4.5V | |
| Interface | 2-Wire, I2C, SPI, UART, USART | |
| Memory Size | 32kB | |
| Oscillator Type | Internal | |
| RAM Size | 2K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8V~5.5V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | AVR | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Program Memory Type | FLASH |
| Product Attribute | Attribute Value | |
|---|---|---|
| Core Size | 8-Bit | |
| Program Memory Size | 32KB 16K x 16 | |
| Connectivity | I2C, SPI, UART/USART | |
| Bit Size | 8 | |
| Has ADC | YES | |
| DMA Channels | NO | |
| Data Bus Width | 8b | |
| Number of Timers/Counters | 3Timers/Counters | |
| EEPROM Size | 1K x 8 | |
| Number of ADC Channels | 8ADC Channels | |
| Number of PWM Channels | 6PWM Channels | |
| Height | 4.064mm | |
| Length | 34.8mm | |
| Width | 7.493mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

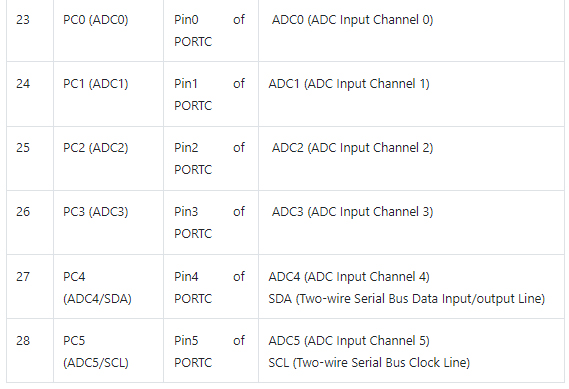

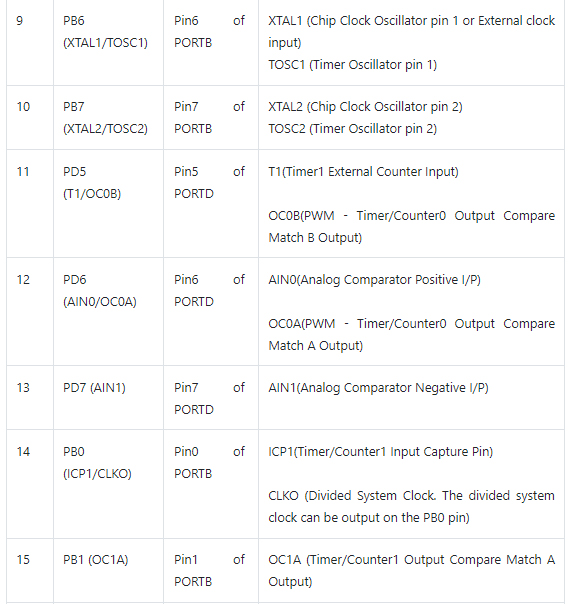

ATMEGA8535,ATMEGA16, ATMEGA32,
Although we have many controllers ATMEGA328P is most popular of all because of its features and cost. ARDUINO boards are also developed on this controller because of its features.
With program memory of 32 Kbytes ATMEGA328P applications are many.
With various POWER SAVING modes it can work on MOBILE EMBEDDED SYSTEMS.
With Watchdog timer to reset under error it can be used on systems with minimal human interference.
With advanced RISC architecture, the controller executes programs quickly.
Also with in chip temperature sensor the controller can be used at extreme temperatures.
ATMEGA328P is used similar to any other controller. All there to do is programming.First, we need to program the controller and that is done by writing the appropriate program file in the FLASH memory. After dumping this program code, the controller executes this code and provides appropriate response.
Entire process of using an ATMEGA328 is as followed:
List the functions to be executed by controller.
Write the functions in programming language in IDE programs.
ATMEGA328P programming can also be done in ARDUINO IDE.
After writing the program, compile it to eliminate errors.
Make the IDE generate HEX file for the written program after compiling.
This HEX file contains the machine code which should be written in controller flash memory.
Choose the programming device (usually SPI programmer made for AVR controllers) which establishes communication between PC and ATMEGA328P. You can also program ATMEGA328P using ARDUINO UNO board.
Run the programmer software and choose the appropriate hex file.
Burn the HEX file of written program in ATMEGA328P flash memory using this program.
Disconnect the programmer, connect the appropriate peripherals for the controller and get the system started.
Used in ARDUINO UNO, ARDUINO NANO and ARDUINO MICRO boards.
Industrial control systems.
SMPS and Power Regulation systems.
Digital data processing.
Analog signal measuring and manipulations.
Embedded systems like coffee machine, vending machine.
Motor control systems.
Display units.
Peripheral Interface system.
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for Microchip Technology ATMEGA328P-PN.
Download datasheets and manufacturer documentation for ATMEGA328P-PN
