ATMEGA328P-MU AVR 8-bit Microcontrollers - MCU 32KB In-system: Datasheet, Pinout, and Equivalents

The ATMEGA328P-MU is a high-performance picoPower  8bit AVR RISC  -based microcontroller that combines 32kb ISP  flash memory with read-while-write capabilities, 1024B EEPROM, 23 general-purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI  serial port, a 6-channel 10-bit A/D converter  (8-channels in TQFP  and QFN  /MLF packages), programmable watchdog timer with internal oscillator and five software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• High-performance, low-power AVR® 8bit microcontroller

• Advanced RISC Architecture

• High endurance non-volatile memory segments

• Atmel® QTouch  ® library support

• Power-on reset and programmable brown-out detection

• Internal Calibrated Oscillator

• External and internal interrupt sources

• Idle, ADC  noise reduction, power-save, power-down, standby, and extended standby sleep modes

• 0 to 20MHz at 4.5 to 5.5V speed grade

• 2mA active mode, 0.1µA power-down  mode, 0.75µA (32KHz RTC) power-save  mode power consumption

ATMEGA328P-MU Block Diagram

ATMEGA328P-MU Symbol

ATMEGA328P-MU Footprint

ATMEGA328P-MU 3D Model

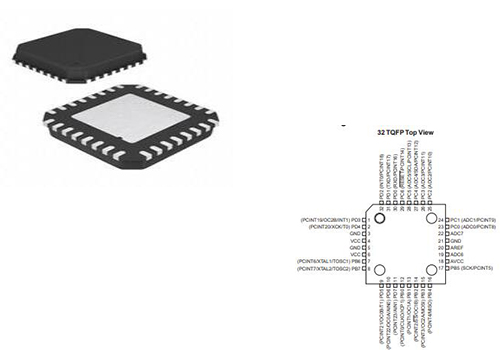

ATMEGA328P-MU Package information

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost, and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
