ATTINY13V Pinout

The following figure is the diagram of ATTINY13V pinout.

Pinout

ATTINY13V CAD Model

The followings are ATTINY13V Symbol, Footprint, and 3D Model.

Symbol

Footprint

3D Model

ATTINY13V Overview

The ATTINY13V is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13V achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATtiny13 AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, and Evaluation kits.

This article provides you with a basic overview of the ATTINY13V CMOS 8-bit Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what ATTINY13V is.

ATTINY13V Features

● High Performance, Low Power AVR^® 8-Bit Microcontroller

● Advanced RISC Architecture

◆ 120 Powerful Instructions – Most Single Clock Cycle Execution

◆ 32 x 8 General Purpose Working Registers

◆ Fully Static Operation

◆ Up to 20 MIPS Througput at 20 MHz

● High Endurance Non-volatile Memory segments

◆ 1K Bytes of In-System Self-programmable Flash program memory

◆ 64 Bytes EEPROM

◆ 64 Bytes Internal SRAM

◆ Write/Erase cyles: 10,000 Flash/100,000 EEPROM

◆ Data retention: 20 years at 85°C/100 years at 25°C

◆ Programming Lock for Self-Programming Flash & EEPROM Data Security

● Peripheral Features

◆ One 8-bit Timer/Counter with Prescaler and Two PWM Channels

◆ 4-channel, 10-bit ADC with Internal Voltage Reference

◆ Programmable Watchdog Timer with Separate On-chip Oscillator

◆ On-chip Analog Comparator

● Special Microcontroller Features

◆ debugWIRE On-chip Debug System

◆ In-System Programmable via SPI Port

◆ External and Internal Interrupt Sources

◆ Low Power Idle, ADC Noise Reduction, and Power-down Modes

◆ Enhanced Power-on Reset Circuit

◆ Programmable Brown-out Detection Circuit

◆ Internal Calibrated Oscillator

● I/O and Packages

◆ 8-pin PDIP/SOIC: Six Programmable I/O Lines

◆ 20-pad MLF: Six Programmable I/O Lines

● Operating Voltage: 1.8 - 5.5V

● Speed Grade: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V

● Industrial Temperature Range

● Low Power Consumption

◆ Active Mode: 1 MHz, 1.8V: 240 µA

◆ Power-down Mode: < 0.1 µA at 1.8V

Specifications

Microchip Technology ATTINY13V-10SSU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATTINY13V-10SSU.

ATTINY13V-10SSU Tech Specifications

Microchip Technology ATTINY13V-10SSU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATTINY13V-10SSU.

Product Attribute	Attribute Value
Factory Lead Time	5 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8Pins
Data Converters	A/D 4x10b
Number of I/Os	6I/Os
Watchdog Timers	Yes
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	AVR® ATtiny
Published	2004
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	8Terminations
Terminal Finish	Matte Tin (Sn) - annealed

Product Attribute	Attribute Value
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Frequency	10MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATTINY13
Supply Voltage-Max (Vsup)	5.5V
Interface	SPI
Memory Size	1kB
Oscillator Type	Internal
RAM Size	64 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit

Product Attribute	Attribute Value
Program Memory Size	1KB 512 x 16
Bit Size	8
Access Time	10 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
EEPROM Size	64 x 8
Number of ADC Channels	4ADC Channels
Number of PWM Channels	2PWM Channels
Number of SPI Channels	1SPI Channel
Height	1.75mm
Length	5mm
Width	4mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

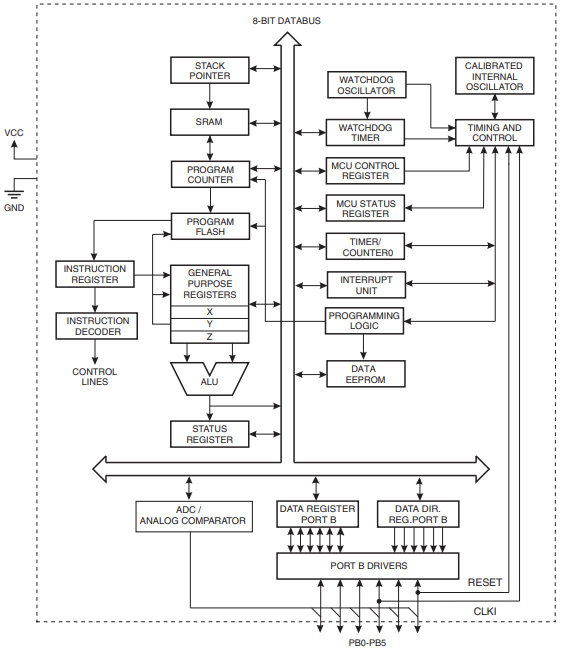

ATTINY13V Functional Block Diagram

The following is the Block Diagram of ATTINY13V.

Block Diagram

ATTINY13V Equivalent

Model number	Manufacturer	Description
ATTINY13V-10MI	Microchip Technology Inc	RISC Microcontroller, 8-Bit, FLASH, 10MHz, CMOS
ATTINY13V-10MMUR	Microchip Technology Inc	IC MCU 8BIT 1KB FLASH 10MLP
ATTINY13V-10SSI	Atmel Corporation	RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 10MHz, CMOS, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8

ATTINY13V Applications

● USB ASP AVR Programmer

● AVR Development Board

● Crystal Oscillators

● Capacitors

● 12V Adapter

● 7805 Voltage Regulator

ATTINY13V Package

The following diagram shows the ATTINY13V package.

Top View

Side View

End View

ATTINY13V Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Datasheet PDF

ATTINY13V-10SSU Documents

Download datasheets and manufacturer documentation for ATTINY13V-10SSU

Datasheets

ATTINY13(V) Datasheet

ATTINY13(V) Summary

PCN Design/Specification

Copper Bonding Wire 17/Oct/2013

Marking Chgs 11/Jul/2017

PCN Packaging

Transfer to Microchip/Label/Pkg 5/Sep/2016

MBB/Label Chgs 16/Nov/2018

ConflictMineralStatement

Microchip-company-68.pdf

Frequently Asked Questions

What is the essential property of the ATTINY13V?

The ATTINY13V is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13V achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

What are the classifications of ATtiny microcontrollers?

ATtiny series: such as tiny13, tiny15, tiny26, belong to low-end, suitable for relatively single-function systems. AT90S series: AT90S8515, 8535, are mid-range, suitable for general system development. ATmega series: Mega8, Mega16, belong to high-end, suitable for various systems with higher requirements.

What system development tools does ATtiny13 AVR support?

The ATtiny13 AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, and Evaluation kits.
