ATTINY20 8-bit AVR Microcontroller: Pinout, Features and Datasheet

The following figure is the diagram of ATTINY20 Pinout.

Pinout

The followings are ATTINY20 Symbol, Footprint, and 3D Model.

PCB Symbol

PCB Footprint

3D Model

ATtiny20 is a low-power CMOS 8-bit microcontroller based on the compact AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny20 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

This article provides you with a basic overview of the ATTINY20 8-bit AVR Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what ATTINY20 is.

● High performance, low power 8-bit AVR^® microcontroller

● Advanced RISC architecture

   ◆ 112 powerful instructions – most single clock cycle execution

   ◆ 16 x 8 general purpose working registers

   ◆ Fully static operation

   ◆ Up to 12 MIPS throughput at 12MHz

● Non-volatile program and data memories

   ◆ 2K bytes of in-system programmable flash program memory

   ◆ 128 bytes internal SRAM

   ◆ Flash write/erase cycles: 10,000

   ◆ Data retention: 20 years at 85 ℃ / 100 years at 25 ℃

● Peripheral features

   ◆ One 8-bit timer/counter with two PWM channels

   ◆ One 16-bit timer/counter with two PWM channels

   ◆ 10-bit analog to digital converter

      ★ 8 single-ended channels

   ◆ Programmable watchdog timer with separate on-chip oscillator

   ◆ On-chip analog comparator

   ◆ Master/slave SPI serial interface

   ◆ Slave TWI serial interface

● Special microcontroller features

   ◆ In-system programmable

   ◆ External and internal interrupt sources

   ◆ Low power idle, ADC noise reduction, stand-by and power-down modes

   ◆ Enhanced power-on reset circuit

   ◆ Internal calibrated oscillator

● I/O and packages

   ◆ 14-pin SOIC/TSSOP: 12 programmable I/O lines

   ◆ 12-ball WLCSP: 10 programmable I/O lines

   ◆ 15-ball UFBGA: 12 programmable I/O lines

   ◆ 20-pad VQFN: 12 programmable I/O lines

● Operating voltage: 1.8 – 5.5V

● Programming voltage: 5V

● Speed grade

   ◆ 0 – 4MHz @ 1.8 – 5.5V

   ◆ 0 – 8MHz @ 2.7 – 5.5V

   ◆ 0 – 12MHz @ 4.5 – 5.5V

● Industrial temperature range

● Low power consumption

   ◆ Active mode: 200 μA at 1MHz and 1.8V

   ◆ Idle mode: 25μA at 1MHz and 1.8V

   ◆ Power-down mode: < 0.1μA at 1.8V

The following is the Block Diagram of ATTINY20.

Block Diagram

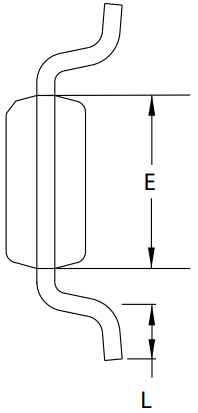

The following diagrams show the ATTINY20 Package.

Top View

Side View

End View
