MICROCHIP - ATTINY2313-20PU - MICROCONTROLLER MCU, 8 BIT, ATTINY, 20MHZ, DIP-20 ATTINY2313-20PU is an integrated circuit. This article is going to introduce pinout, applications, features, and more details about ATTINY2313-20PU.
773
Jan 25, 2022
Emily Grey
Arduino Tutorial 8: Understanding Pulse Width Modulation (PWM) and the Arduino Analog Write Command
MICROCHIP - ATTINY2313-20PU - MICROCONTROLLER MCU, 8 BIT, ATTINY, 20MHZ, DIP-20
ATTINY2313-20PU is an integrated circuit. This article is going to introduce pinout, applications, features, and more details about ATTINY2313-20PU.
ATTINY2313-20PU
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.13727 | $3.14 |
| 10+ | $2.95969 | $29.6 |
| 100+ | $2.79216 | $279.22 |
| 500+ | $2.63411 | $1317.06 |
| 1000+ | $2.48501 | $2485.01 |
The ATTINY2313-20PU provides the following features: 2K bytes of In-System Programmable Flash, 128 bytes EEPROM, 128 bytes SRAM, 18 general-purpose I/O lines, 32 general purpose working registers, a single-wire Interface for On-chip Debugging, two flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, Universal Serial Interface with Start Condition Detector, a programmable Watchdog Timer with Internal Oscillator, and three software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, and interrupt system to continue functioning. The Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next interrupt or hardware reset. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low-power consumption.
Utilizes the AVR® RISC Architecture
120 powerful instructions – most single clock cycle execution
32 x 8 general-purpose working registers
Fully static operation
Up to 20MIPS throughput at 20MHz
128 Bytes internal SRAM
Programming lock for the flash program and EEPROM data security
One 8 bit timer/counter with separate Prescaler and compare mode
One 16 bit timer/counter with separate Prescaler, compare and capture modes
Four PWM channels
Data and non-volatile program and data memories
2K Bytes of in-system self-programmable flash
Endurance 10,000 Write/Erase Cycles
128 Bytes in system programmable EEPROM
Endurance: 100,000 write/erase cycles
On-chip analog comparator
Programmable watchdog timer with on-chip oscillator
Universal Serial Interface
Full-duplex USART
DebugWIRE on-chip debugging
ATTINY2313-20PU Pinout
ATTINY2313-20PU Symbol
ATTINY2313-20PU Footprint
ATTINY2313-20PU 3D Model
Microchip Technology ATTINY2313-20PU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATTINY2313-20PU.
Microchip Technology ATTINY2313-20PU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATTINY2313-20PU.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 20-DIP (0.300, 7.62mm) | |
| Number of Pins | 20Pins | |
| Memory Types | EEPROM, FLASH | |
| Number of I/Os | 18I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| Series | AVR® ATtiny | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 20Terminations | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 245 | |
| Supply Voltage | 5V | |
| Frequency | 20MHz | |
| Base Part Number | ATTINY2313 | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Power Supplies | 3/5V | |
| Interface | SPI, UART, USART | |
| Memory Size | 2kB | |
| Oscillator Type | Internal | |
| RAM Size | 128 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7V~5.5V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Number of Bits | 8Bits | |
| Core Processor | AVR | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 8-Bit | |
| Program Memory Size | 2KB 1K x 16 | |
| Connectivity | SPI, UART/USART |
| Product Attribute | Attribute Value | |
|---|---|---|
| Bit Size | 8 | |
| Access Time | 20 μs | |
| Has ADC | NO | |
| DMA Channels | NO | |
| Data Bus Width | 8b | |
| DAC Channels | NO | |
| Address Bus Width | 8b | |
| Density | 16 kb | |
| EEPROM Size | 128 x 8 | |
| Number of PWM Channels | 4PWM Channels | |
| Number of I2C Channels | 1I2C Channel | |
| Number of SPI Channels | 2SPI Channels | |
| Height | 4.953mm | |
| Length | 25.98mm | |
| Width | 7.112mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Automation & Process Control
Automotive
Clock & Timing
Consumer Electronics
Defense
Military & Aerospace
Embedded Design & Development
Industrial
Motor Drive & Control
Portable Devices

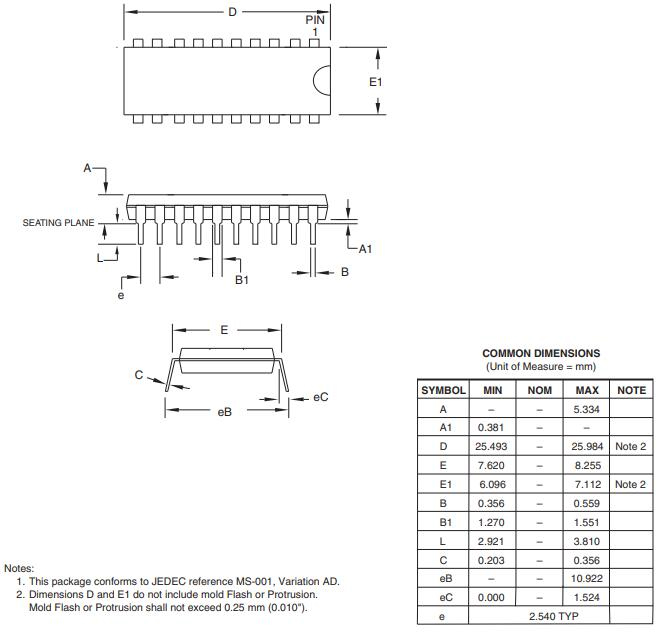

ATTINY2313-20PU Package information
