ATTINY26L 8-bit Microcontroller: Pinout, Features and Datasheet

PCB Symbol

PCB Footprint

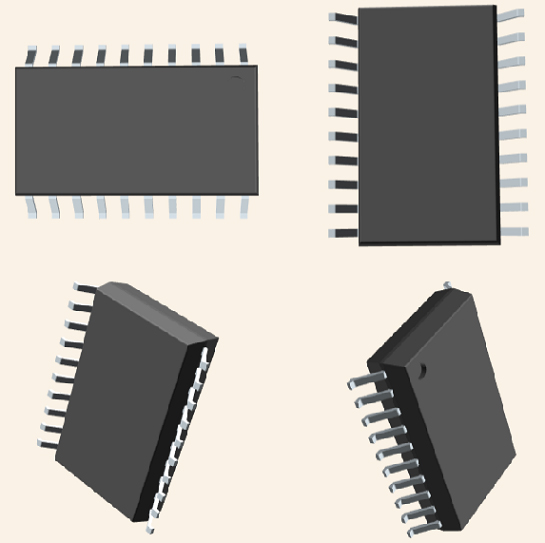

3D Model

The ATtiny26L has a high precision ADC with up to 11 single ended channels and 8 differential channels. Seven differential channels have an optional gain of 20x. Four out of the seven differential channels, which have the optional gain, can be used at the same time. ATtiny26L also has a high frequency 8-bit PWM module with two independent outputs. Two of the PWM outputs have inverted non-overlapping output pins ideal for synchronous rectification. The Universal Serial Interface of the ATtiny26L allows efficient software implementation of TWI (Two-wire Serial Interface) or SM-bus interface. These features allow for highly integrated battery charger and lighting ballast applications, low-end thermostats, and firedetectors, among other applications. By combining an enhanced RISC 8-bit CPU with Flash on a monolithic chip, the ATtiny26L is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications. The ATtiny26L AVR is supported with a full suite of program and system development tools including: Macro assemblers, program debugger/simulators, In-circuit emulators, and evaluation kits.

This article provides you with a basic overview of the ATTINY26L 8-bit Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what ATTINY26L is.

● High-performance, Low-power AVR^® 8-bit Microcontroller

● RISC Architecture

   ◆ 118 Powerful Instructions – Most Single Clock Cycle Execution

   ◆ 32 x 8 General Purpose Working Registers

   ◆ Fully Static Operation

   ◆ Up to 16 MIPS Throughput at 16 MHz

● Data and Non-volatile Program Memory

   ◆ 2K Bytes of In-System Programmable Program Memory Flash Endurance: 10,000 Write/Erase Cycles

   ◆ 128 Bytes of In-System Programmable EEPROM Endurance: 100,000 Write/Erase Cycles

   ◆ 128 Bytes Internal SRAM

   ◆ Programming Lock for Flash Program and EEPROM Data Security

● Peripheral Features

   ◆ 8-bit Timer/Counter with Separate Prescaler

   ◆ 8-bit High-speed Timer with Separate Prescaler: 2 High Frequency PWM Outputs with Separate Output Compare              Registers; Non-overlapping Inverted PWM Output Pins

   ◆ Universal Serial Interface with Start Condition Detector

   ◆ 10-bit ADC

      ■ 11 Single Ended Channels

      ■ 8 Differential ADC Channels

      ■ 7 Differential ADC Channel Pairs with Programmable Gain (1x, 20x)

   ◆ On-chip Analog Comparator

   ◆ External Interrupt

   ◆ Pin Change Interrupt on 11 Pins

   ◆ Programmable Watchdog Timer with Separate On-chip Oscillator

● Special Microcontroller Features

   ◆ Low Power Idle, Noise Reduction, and Power-down Modes

   ◆ Power-on Reset and Programmable Brown-out Detection

   ◆ External and Internal Interrupt Sources

   ◆ In-System Programmable via SPI Port

   ◆ Internal Calibrated RC Oscillator

● I/O and Packages

   ◆ 20-lead PDIP/SOIC: 16 Programmable I/O Lines

   ◆ 32-lead QFN/MLF: 16 programmable I/O Lines

● Operating Voltages: 2.7V - 5.5V

● Speed Grades: 0 - 8 MHz

● Power Consumption at 1 MHz, 3V and 25°C for ATtiny26L

   ◆ Active 16 MHz, 5V and 25°C: Typ 15 mA

   ◆ Active 1 MHz, 3V and 25°C: 0.70 mA

   ◆ Idle Mode 1 MHz, 3V and 25°C: 0.18 mA

   ◆ Power-down Mode: < 1 µA

Microchip Technology ATTINY26L-8SU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATTINY26L-8SU.

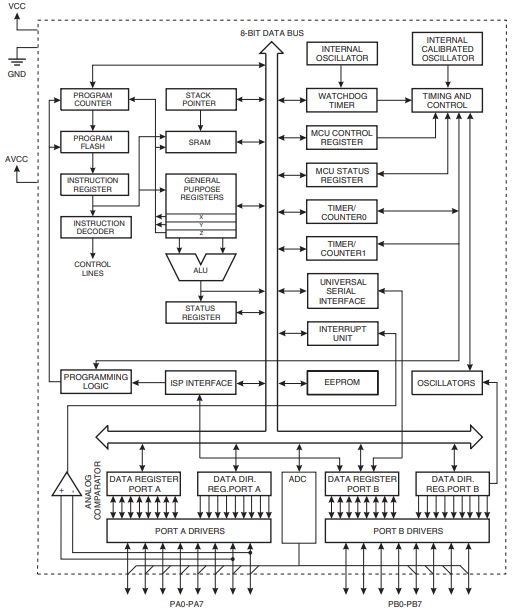

Block Diagram

● Highly Integrated Battery Charger

● Lighting Ballast Applications

● Low-end Thermostats

● Fire Detectors

Top view

Side view

End view
