ATTINY26L-8MU 8-bit Microcontroller: Pinout, Equivalent and Datasheet

The following figure is the diagram of ATTINY26L-8MU Pinout.

Pinout

The followings are ATTINY26L-8MU Symbol, Footprint, and 3D Model.

PCB Symbol

PCB Footprint

3D Model

The ATtiny26(L) is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny26(L) achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

The ATtiny26(L) has a high precision ADC with up to 11 single ended channels and 8 differential channels. The ATtiny26(L) also has a high frequency 8-bit PWM module with two independent outputs. Two of the PWM outputs have inverted non-overlapping output pins ideal for synchronous rectification. The Universal Serial Interface of the ATtiny26(L) allows efficient software implementation of TWI (Two-wire Serial Interface) or SM-bus interface. These features allow for highly integrated battery charger and lighting ballast applications, low-end thermostats, and firedetectors, among other applications. By combining an enhanced RISC 8-bit CPU with Flash on a monolithic chip, the ATtiny26(L) is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.

This article provides you with a basic overview of the ATTINY26L-8MU 8-bit Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what ATTINY26L-8MU is.

● High-performance, Low-power AVR^® 8-bit Microcontroller

● RISC Architecture

   ◆ 118 Powerful Instructions – Most Single Clock Cycle Execution

   ◆ 32 x 8 General Purpose Working Registers

   ◆ Fully Static Operation

   ◆ Up to 16 MIPS Throughput at 16 MHz

● Data and Non-volatile Program Memory

   ◆ 2K Bytes of In-System Programmable Program Memory Flash

        ★ Endurance: 10,000 Write/Erase Cycles

   ◆ 128 Bytes of In-System Programmable EEPROM

        ★ Endurance: 100,000 Write/Erase Cycles

   ◆ 128 Bytes Internal SRAM

   ◆ Programming Lock for Flash Program and EEPROM Data Security

● Peripheral Features

   ◆ 8-bit Timer/Counter with Separate Prescaler

   ◆ 8-bit High-speed Timer with Separate Prescaler

        ★ 2 High Frequency PWM Outputs with Separate Output Compare Registers Non-overlapping Inverted PWM Output Pins

   ◆ Universal Serial Interface with Start Condition Detector

   ◆ 10-bit ADC

        ★ 11 Single Ended Channels

        ★ 8 Differential ADC Channels

        ★ 7 Differential ADC Channel Pairs with Programmable Gain (1x, 20x)

   ◆ On-chip Analog Comparator

   ◆ External Interrupt

   ◆ Pin Change Interrupt on 11 Pins

   ◆ Programmable Watchdog Timer with Separate On-chip Oscillator

● Special Microcontroller Features

   ◆ Low Power Idle, Noise Reduction, and Power-down Modes

   ◆ Power-on Reset and Programmable Brown-out Detection

   ◆ External and Internal Interrupt Sources

   ◆ In-System Programmable via SPI Port

   ◆ Internal Calibrated RC Oscillator

● I/O and Packages

   ◆ 20-lead PDIP/SOIC: 16 Programmable I/O Lines

   ◆ 32-lead QFN/MLF: 16 programmable I/O Lines

● Operating Voltages: 2.7V - 5.5V for ATTINY26L

● Speed Grades: 0 - 8 MHz for ATTINY26L

● Power Consumption at 1 MHz, 3V and 25°C for ATTINY26L

   ◆ Active 16 MHz, 5V and 25°C: Typ 15 mA

   ◆ Active 1 MHz, 3V and 25°C: 0.70 mA

   ◆ Idle Mode 1 MHz, 3V and 25°C: 0.18 mA

   ◆ Power-down Mode: < 1 µA

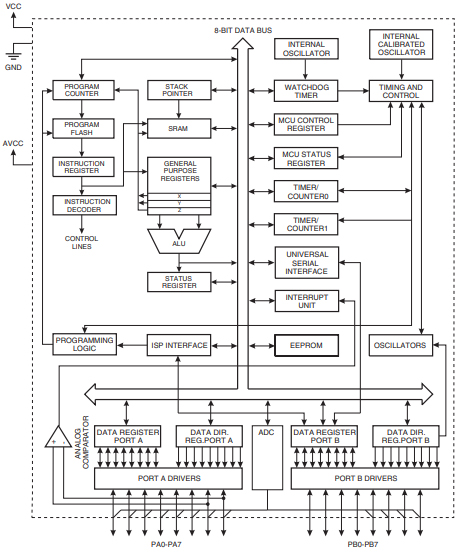

The following is the Block Diagram of ATTINY26L-8MU.

Block Diagram

The following diagrams show the ATTINY26L-8MU Package.

Top View

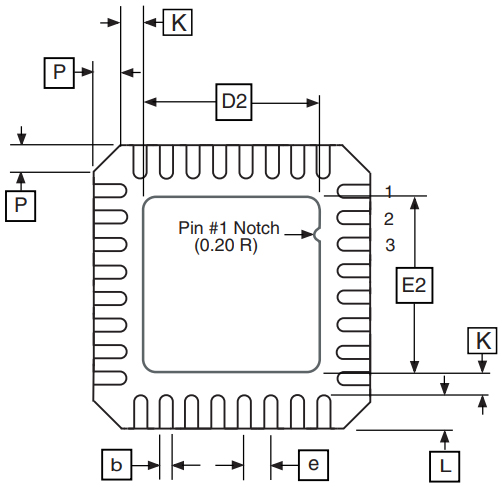

Bottom View

Side View
