IC MCU 8BIT 8KB FLASH 32VQFN The ATtiny88 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle,
163
Mar 9, 2022
Cheryl Edie
Difference between 8Bit and 16Bit Micro controllers | Difference between 32Bit and 64Bit processor
The ATtiny88 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny88 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
ATTINY88-MU
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.41579 | $3.42 |
| 10+ | $3.22244 | $32.22 |
| 100+ | $3.04004 | $304 |
| 500+ | $2.86796 | $1433.98 |
| 1000+ | $2.70562 | $2705.62 |
The following figure is the diagram of ATTINY88-MU Pinout.
Pinout
The followings are ATTINY88-MU Symbol, Footprint, and 3D Model.
PCB Symbol

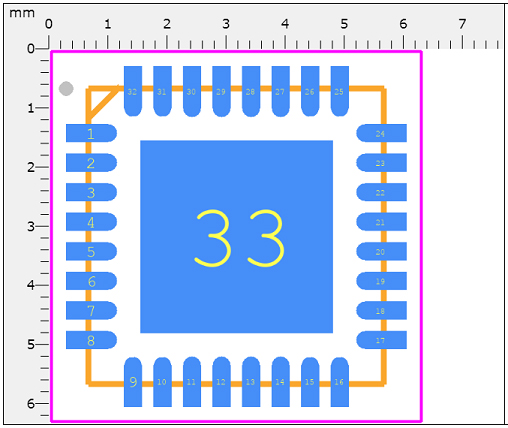

PCB Footprint
3D Model
The ATtiny88 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny88 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
This article provides you with a basic overview of the ATTINY88-MU 8-bit Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what ATTINY88-MU is.
● High Performance, Low Power AVR® 8-Bit Microcontroller
● Advanced RISC Architecture
◆ 123 Powerful Instructions – Most Single Clock Cycle Execution
◆ 32 x 8 General Purpose Working Registers
◆ Fully Static Operation
● High Endurance Non-volatile Memory Segments
◆ 8K Bytes of In-System Self-Programmable Flash Program Memory
◆ 64 Bytes EEPROM
◆ 512 Bytes Internal SRAM
◆ Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
◆ Data Retention: 20 years at 85°C / 100 years at 25°C
◆ Programming Lock for Software Security
● Peripheral Features
◆ One 8-bit Timer/Counter with Separate Prescaler and Compare Mode
◆ One 16-bit Timer/Counter with Prescaler, and Compare and Capture Modes
◆ 6- or 8-channel 10-bit ADC
◆ Master/Slave SPI Serial Interface
◆ Byte-oriented 2-wire Serial Interface (Philips I2C Compatible)
◆ Programmable Watchdog Timer with Separate On-Chip Oscillator
◆ On-Chip Analog Comparator
◆ Interrupt and Wake-up on Pin Change
● Special Microcontroller Features
◆ debugWIRE On-Chip Debug System
◆ In-System Programmable via SPI Port
◆ Power-On Reset and Programmable Brown-Out Detection
◆ Internal Calibrated Oscillator
◆ External and Internal Interrupt Sources
◆ Three Sleep Modes: Idle, ADC Noise Reduction and Power-Down
◆ On-Chip Temperature Sensor
● I/O and Packages
◆ 24 Programmable I/O Lines:
★ 28-pin PDIP
★ 28-pad QFN
◆ 28 Programmable I/O Lines:
★ 32-lead TQFP
★ 32-pad QFN
★ 32-ball UFBGA
● Operating Voltage: 1.8 – 5.5V
● Temperature Range: -40°C to +85°C
● Speed Grade:
◆ 0 – 4 MHz @ 1.8 – 5.5V
◆ 0 – 8 MHz @ 2.7 – 5.5V
◆ 0 – 12 MHz @ 4.5 – 5.5V
● Low Power Consumption
◆ Active Mode: 1 MHz, 1.8V: 240 µA
◆ Power-Down Mode: 0.1 µA at 1.8V
Microchip Technology ATTINY88-MU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology ATTINY88-MU.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-VFQFN Exposed Pad | |
| Number of Pins | 32Pins | |
| Manufacturer Package Identifier | 32M1-A | |
| Data Converters | A/D 8x10b | |
| Number of I/Os | 28I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | AVR® ATtiny | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 32Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | SMD/SMT | |
| Terminal Position | QUAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 5V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 12MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | ATTINY88 | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Supply Voltage-Min (Vsup) | 4.5V | |
| Interface | 2-Wire, I2C, I2S, SPI | |
| Memory Size | 8kB | |
| Oscillator Type | Internal | |
| RAM Size | 512 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8V~5.5V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | AVR | |
| Peripherals | Brown-out Detect/Reset, POR, WDT | |
| Program Memory Type | FLASH |
| Product Attribute | Attribute Value | |
|---|---|---|
| Core Size | 8-Bit | |
| Program Memory Size | 8KB 4K x 16 | |
| Connectivity | I2C, SPI | |
| Bit Size | 8 | |
| Has ADC | YES | |
| DMA Channels | NO | |
| Data Bus Width | 8b | |
| Density | 64 kb | |
| EEPROM Size | 64 x 8 | |
| Number of ADC Channels | 8ADC Channels | |
| Number of PWM Channels | 2PWM Channels | |
| Number of I2C Channels | 1I2C Channel | |
| Height | 1mm | |
| Length | 5.1mm | |
| Width | 5.1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Block Diagram of ATTINY88-MU.
Block Diagram
| Model number | Manufacturer | Description |
| ATTINY88-AU | Atmel Corporation | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 12MHz, CMOS, PQFP32, 7 X 7 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ABA, TQFP-32 |
| ATTINY88-MMU | Atmel Corporation | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 12MHz, CMOS, PQCC28, 4 X 4 MM, 1 MM HEIGHT, 0.45 MM PITCH, GREEN, PLASTIC, VQFN-28 |
| ATTINY88-CCU | Atmel Corporation | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 12MHz, CMOS, PBGA32, 4 X 4 MM, 0.60 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, UFBGA-32 |
| ATTINY88-PU | Atmel Corporation | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 12MHz, CMOS, PDIP28, 0.300 INCH, GREEN, PLASTIC, DIP-28 |
| ATTINY88-CCUR | Atmel Corporation | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 12MHz, CMOS, PBGA32, 4 X 4 MM, 0.60 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, UFBGA-32 |
| ATTINY88-MU | Microchip Technology Inc | IC MCU 8BIT 8KB FLASH 32VQFN |
The following diagrams show the ATTINY88-MU Package.
Top View
Bottom View
Side View
