DIODE SCHOTTKY 40V 3A SMA
The B340A-13-F is a surface mount Schottky Barrier Rectifier Diode. This article will cover its datasheet, pinout, application, feature and more details about B340A-13-F.
B340A-13-F
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.42438 | $0.42 |
| 10+ | $0.40035 | $4 |
| 100+ | $0.37769 | $37.77 |
| 500+ | $0.35632 | $178.16 |
| 1000+ | $0.33615 | $336.15 |

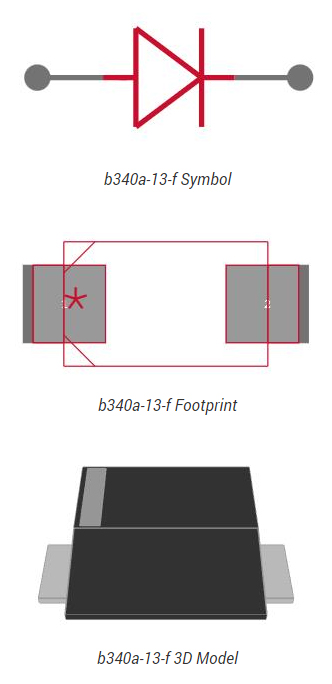

B340A-13-F SMA
Case: SMA
Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Classification 94 V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead-Free Plating (Matte-Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.064 grams (Approximate)
The B340A-13-F is a surface mount Schottky Barrier Rectifier Diode with moulded plastic case. Suitable for low voltage, high-frequency inverters, freewheeling, DC-DC converters and polarity protection applications.
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Lead-Free Finish; RoHS Compliant (Notes 1 & 2 )
Halogen and Antimony Free. “Green” Device (Notes 3 & 4 )
Qualified to AEC-Q101 Standards for High Reliability
Automotive
Power Management
B340A-13-F Package
Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analogue, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Diodes Incorporated B340A-13-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated B340A-13-F.
Diodes Incorporated B340A-13-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated B340A-13-F.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 9 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-214AC, SMA | |
| Number of Pins | 2Pins | |
| Weight | 64.013223mg | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 0.85W | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q101 | |
| Published | 2012 | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Applications | EFFICIENCY | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| HTS Code | 8541.10.00.80 | |
| Capacitance | 250pF | |
| Voltage - Rated DC | 40V | |
| Terminal Position | DUAL | |
| Terminal Form | C BEND | |
| Current Rating | 3A | |
| Base Part Number | B340 | |
| Pin Count | 2 | |
| Polarity | Standard | |
| Voltage | 40V | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Current | 3A | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500μA @ 40V | |
| Output Current | 3A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 3A | |
| Forward Current | 3A | |
| Operating Temperature - Junction | -55°C~150°C | |
| Forward Voltage | 500mV | |
| Max Reverse Voltage (DC) | 40V | |
| Average Rectified Current | 3A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 500μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 40V | |
| Capacitance @ Vr, F | 200pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 80A | |
| Reverse Voltage | 40V | |
| Max Forward Surge Current (Ifsm) | 80A | |
| Height | 2.1mm | |
| Length | 4.6mm | |
| Width | 2.92mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
