DIODE GPP 1A DO-41 BA159 is a 1 Amp fast recovery rectifier featuring 400~1000 Volts. This article mainly covers pinout, datasheet, features, equivalent, and other details about the BA159 diode. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
322
Sep 21, 2021
Taylor Dick
DIODE GPP 1A DO-41
BA159 is a 1 Amp fast recovery rectifier featuring 400~1000 Volts. This article mainly covers pinout, datasheet, features, equivalent, and other details about the BA159 diode. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
BA159-AP
The BA159 is a Fast Diode with a molded plastic casing that may be installed anywhere. Axial leads are solderable. The cathode end polarity is indicated by the color band. The surge current capability is high for maximum efficiency, swap quickly.
BA159 Symbol
BA159 Footprint
BA159 3D Model
Diff used Junction
Low Forward Voltage Drop
High Current Capability
High Reliability
High Surge Current Capability
Micro Commercial Co BA159-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co BA159-AP.
Micro Commercial Co BA159-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co BA159-AP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Surface Mount | NO | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Matte Tin (Sn) | |
| HTS Code | 8541.10.00.80 | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 2 | |
| JESD-30 Code | O-PALF-W2 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Standard |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 40V | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -65°C~125°C | |
| Output Current-Max | 1A | |
| Voltage - DC Reverse (Vr) (Max) | 1000V | |
| Current - Average Rectified (Io) | 1A | |
| Reverse Recovery Time | 250ns | |
| Rep Pk Reverse Voltage-Max | 1000V | |
| Capacitance @ Vr, F | 15pF @ 4V 1MHz | |
| RoHS Status | RoHS Compliant |
Aerospace
Defense
Military

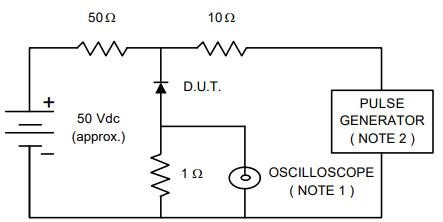

BA159 Test Circuit
BA157, BA158, BA159D, PR1007G, STTH108, STTH110RL, CMF05, BYT11-1000, BYT11-800, MR817, MR818, SRP100K, RGP104
| 1N4007 | BA159 | |
| Rohs Code | No | No |
| Part Life Cycle Code | Active | Obsolete |
| Part Package Code | DO-41 | |
| Package Description | PLASTIC PACKAGE-2 | O-PALF-W2 |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | compliant |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Additional Feature | HIGH RELIABILITY | HIGH RELIABILITY |
| Case Connection | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE |
| Diode Element Material | SILICON | SILICON |
| Diode Type | RECTIFIER DIODE | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1 V | |
| JEDEC-95 Code | DO-41 | DO-41 |
| JESD-30 Code | O-PALF-W2 | O-PALF-W2 |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | 1 |
| Number of Terminals | 2 | 2 |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | 1 A |
| Package Body Material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package Shape | ROUND | ROUND |
| Package Style | LONG FORM | LONG FORM |
| Rep Pk Reverse Voltage-Max | 1000 V | 1000 V |
| Surface Mount | NO | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | WIRE | WIRE |
| Terminal Position | AXIAL | AXIAL |
| Base Number Matches | 1 | 46 |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Reverse Recovery Time-Max | 0.5 µs | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |

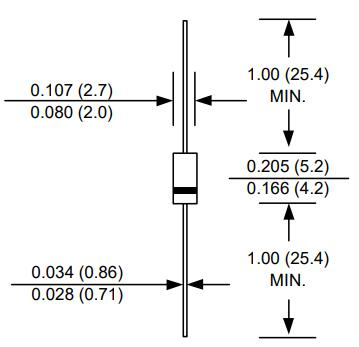

BA159 Dimensions
Founded in 1991, Micro Commercial Components Corp. (MCC) is a manufacturer of high-quality discrete semiconductors to the consumer markets. It provides diodes, rectifiers, transistors, MOSFETs, voltage regulators, and protection devices.
Download datasheets and manufacturer documentation for Micro Commercial Co BA159-AP.
Download datasheets and manufacturer documentation for BA159-AP
