DIODE ARRAY SCHOTTKY 30V SOT23-3
BAT54A is a 200mA surface mount Schottky Barrier Diode. This article mainly describes datasheet, pinout, benefits and other details about BAT54A.
BAT54A-7-F
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.12365 | $0.12 |
| 10+ | $0.11665 | $1.17 |
| 100+ | $0.11005 | $11.01 |
| 500+ | $0.10382 | $51.91 |
| 1000+ | $0.09794 | $97.94 |
BAT54A is a 200mA surface mount Schottky Barrier Diode in SOT23 package. This kind of diode offers low turn-on voltage and fast switching capability, which is designed with PN Junction Guard Ring for Transient and ESD Protection. It totally lead-free finish and RoHS compliant, ”Green” device.
Symbol

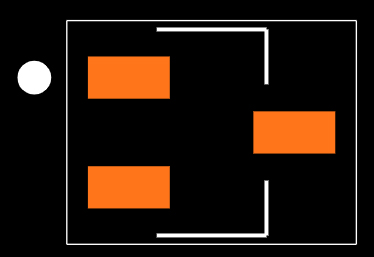

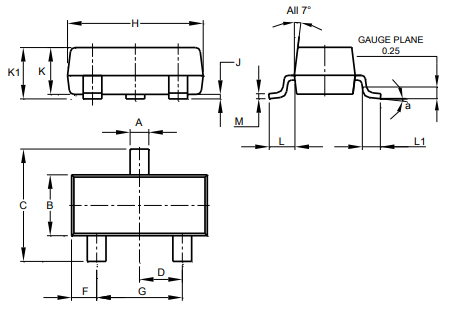

Footprint
Diodes Incorporated BAT54A-7-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated BAT54A-7-F.
Diodes Incorporated BAT54A-7-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated BAT54A-7-F.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 15 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Weight | 7.994566mg | |
| Diode Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| Packaging | Tape & Reel (TR) | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Additional Feature | HIGH RELIABILITY |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8541.10.00.70 | |
| Capacitance | 10pF | |
| Power Rating | 200mW | |
| Voltage - Rated DC | 30V | |
| Max Power Dissipation | 200mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 200mA | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | BAT54A | |
| Pin Count | 3 | |
| Reference Standard | AEC-Q101 | |
| Voltage | 30V | |
| Element Configuration | Common Anode | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Current | 2A | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 2μA @ 25V | |
| Power Dissipation | 200mW | |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Current | 100mA | |
| Operating Temperature - Junction | -65°C~150°C | |
| Current - Average Rectified (Io) | 200mA DC | |
| Forward Voltage | 800mV | |
| Max Reverse Voltage (DC) | 30V | |
| Average Rectified Current | 200mA | |
| Reverse Recovery Time | 5 ns | |
| Peak Reverse Current | 2μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 30V | |
| Peak Non-Repetitive Surge Current | 600mA | |
| Diode Configuration | 1 Pair Common Anode | |
| Max Forward Surge Current (Ifsm) | 600mA | |
| Height | 1mm | |
| Length | 2.9mm | |
| Width | 1.3mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Low Turn-on Voltage
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
BAT54, BAT54C, BAT54S

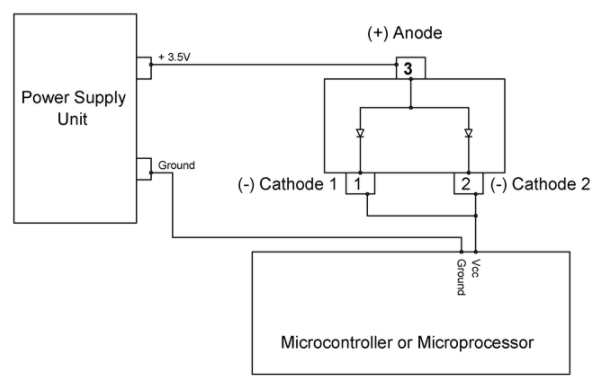

BAT54A can be operated and installed in rectifier and protection circuit like any other diodes. The features of BAT54A are as followed.
Conduction in the forward bias direction (anode connected to positive voltage, cathode connected to ground)
Only leakage currents up to 0.1mA flow in the opposite direction (cathode connected to positive voltage, anode connected to ground)
During forward bias, a maximum of 1V appears at both ends of the device, and during reverse bias, the total supply voltage appears at both ends of the device.
Voltage regulators
AC-DC filters
Switching applications
Protection circuits
Line detectors
Device protection
