High Tech Pet Collar Battery Hack - B3V1A vs CR2430 Batteries
Batteries Non-Rechargeable (Primary) CR STANDARD
Non-rechargeable Lithium 3.0 volt CR2430 batteries are button/coin-cell batteries that are commonly used in watches, fitness wearable electronics, automobile keys, remote controllers, healthcare devices, dog collars, backup batteries, and other applications. This article will introduce details about the CR2430 battery.
CR2430
CR2430 coin cells have a diameter of 24.5mm and a height of 5.0mm. They're non-rechargeable lithium batteries with a long shelf life that makes storing a breeze. CR2430 batteries have a 300mAh capacity and a temperature range of -30 to +60 degrees Celsius.
This battery model works for brands of cameras, calculators, and other handheld electronic devices that use this size of the battery and has higher power than equivalent models of zinc batteries, Users can stock up and keep a regular supply on hand because the product has a long shelf life of up to 10 years.
CR2430 Battery
Can be used in a wide range of temperatures (-30°C to +60°C)
Self-discharge is very low; long shelf life of up to 10 years
High voltage (3V)
No mercury added
A full lineup for use in a wide variety of applications
Murata Electronics CR2430 technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics CR2430.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 15 Weeks | |
| Weight | 4.3g | |
| Operating Temperature (Max.) | 70°C | |
| Operating Temperature (Min.) | -30°C | |
| Voltage Rated | 3V | |
| Size / Dimension | 0.96Dia x 0.12 H 24.5mmx3.0mm | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Reach Compliance Code | compliant | |
| Termination Style | Requires Holder | |
| Approval Agency | UL | |
| Storage/Refrigeration Temperature | 50°F~77°F 10°C~25°C | |
| Terminal Type | BUTTON(-), FLAT(+) | |
| Battery Chemistry | Lithium Manganese Dioxide |
| Product Attribute | Attribute Value | |
|---|---|---|
| Battery Cell Size | Coin 24.5mm | |
| Capacity | 300mAh | |
| Discharge Rate | 200μA | |
| Battery Type | PRIMARY | |
| Diameter | 24.5mm | |
| Height | 3mm | |
| RoHS Status | Non-RoHS Compliant |
Automotive
Smart Key/Keyless entry
Door sill strip
IoT
Tracking devices
Sensors
Security
Medical
Thermometers
Home electrical appliances/Multifunctional printer
Electronic price tags, POS systems
DL2430 battery, ECR2430 battery, KCR2430 battery, KECR2430 battery, BR2430 battery, KL2430 battery, LM2430 battery, ML2430 battery

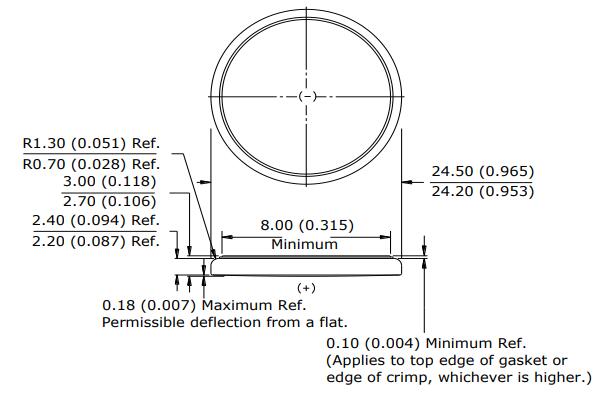

Battery CR2430 Dimensions
Murata is a leading enterprise that is committed to designing, manufacturing, and providing advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Our innovations can be discovered in an extensive range of applications containing mobile phones, home appliances, and automotive applications to energy management systems and healthcare devices.
Download datasheets and manufacturer documentation for CR2430
