BAV199 is an epitaxial, medium-speed switching, double diode in a small SOT23 Surface-Mounted Device (SMD) plastic package. This article is going to explain details about the BAV199 diode.
BAV199W-7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.15909 | $0.16 |
| 10+ | $0.15008 | $1.5 |
| 100+ | $0.14159 | $14.16 |
| 500+ | $0.13357 | $66.79 |
| 1000+ | $0.12601 | $126.01 |
BAV199 Pinout
The BAV199 is an epitaxial medium-speed switching double diode in a small SOT323 surface-mounted device SMD plastic package. The diodes are connected in series. It is used for low leakage current applications in surface-mounted circuits.
BAV199 Footprint
Diodes Incorporated BAV199W-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated BAV199W-7.
Diodes Incorporated BAV199W-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated BAV199W-7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-70, SOT-323 | |
| Number of Pins | 3Pins | |
| Weight | 6.010099mg | |
| Diode Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| Packaging | Tape & Reel (TR) | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8541.10.00.70 | |
| Capacitance | 2pF | |
| Power Rating | 200mW | |
| Voltage - Rated DC | 85V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 140mA | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | BAV199W | |
| Pin Count | 3 | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5nA @ 75V | |
| Power Dissipation | 200mW | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 50mA | |
| Forward Current | 160mA | |
| Operating Temperature - Junction | -65°C~150°C | |
| Max Surge Current | 4A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current-Max | 0.16A | |
| Current - Average Rectified (Io) | 140mA DC | |
| Forward Voltage | 1.25V | |
| Max Reverse Voltage (DC) | 85V | |
| Average Rectified Current | 140mA | |
| Reverse Recovery Time | 3 μs | |
| Peak Reverse Current | 80nA | |
| Max Repetitive Reverse Voltage (Vrrm) | 85V | |
| Peak Non-Repetitive Surge Current | 4A | |
| Diode Configuration | 1 Pair Series Connection | |
| Max Forward Surge Current (Ifsm) | 4A | |
| Recovery Time | 3 μs | |
| Reverse Voltage (DC) | 85V | |
| Height | 1mm | |
| Length | 2.2mm | |
| Width | 1.35mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Surface Mount Package Ideally Suited for Automated Insertion
Very Low Leakage Current
Lead-Free/RoHS Compliant
“Green” Device
Qualified to AEC-Q101 Standards for High Reliability
Absolute maximum ratings (Ta=25°C)
Repetitive peak reverse voltage: VRRM , VR = 85 V
RMS Reverse Voltage: VR (RMS) = 60 V
Forward Continuous Current: IFM = 160 mA
Power Dissipation: Pd = 200 mW
Operating Temperature: Tj = 150°C
6Storage Temperature: Tsg = -65 ~ +150°C
Case: SOT323
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish ⎯ Matte Tin Finish annealed over Alloy 42 lead frame. Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (approximate)
BAV199 Low Leakage Diodes are suitable for ultra-low leakage current applications in surface-mounted circuits including high-precision instrumentation and portable electronics.
The following is the test circuit for recovery time:
BAV199 Test Circuit

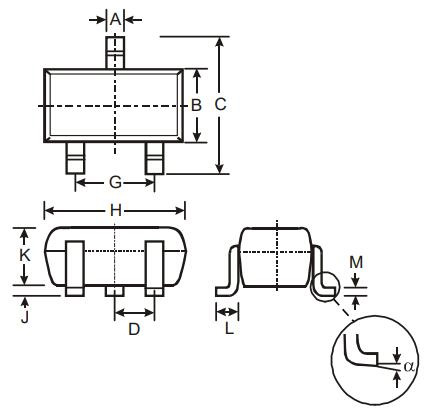

BAV199 Dimensions
