BAV99 is a Dual in series switching diode; it has two diodes connected in series inside a small SMD package. This article enforces datasheet, pinout, features, alternatives, and other details, about BAV99.
BAV99 Diodes : Datasheet, Pinout and Alternatives
DIODE ARRAY GP 70V 200MA SOT23-3 BAV99 is a Dual in series switching diode;
570
Aug 4, 2021
Nima
BAV99
3000In Stock
Min.: 1 Mult.: 1
Quick Links

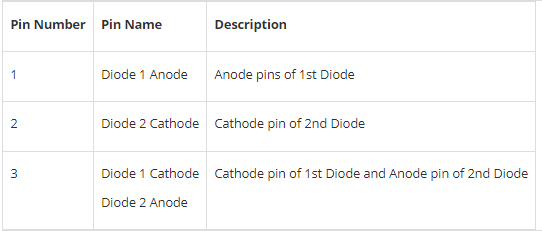

BAV99 Pinout
BAV99 Dimension
The BAV99 device is a 3-pin steering diode with a small forward, large breakdown, and low capacitance. The device consists of stacking two diodes by connecting the cathode to the anode of another and providing pins to the cathode, anode, and between the two diodes.
BAV99 Features
-
Dual in Series High-Speed Switching Diode
-
Forward Current: 250mA
-
Average Forward Current: 150mA
-
Repetitive Peak Reverse Voltage: 70V
-
Non Repetitive Peak Voltage: 100V
-
Available in SOT-23 SMD Package
-
Marking on SMD: JE
Specifications
ON Semiconductor BAV99 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BAV99.
BAV99 Tech Specifications
BAV99 Tech Specifications
ON Semiconductor BAV99 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BAV99.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 35 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | SOT-23-3 (TO-236) | |
| Weight | 25mg | |
| Packaging | Tape & Reel (TR) | |
| Published | 2014 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Capacitance | 1.5pF | |
| Voltage - Rated DC | 70V | |
| Max Power Dissipation | 350mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 200mA | |
| Base Part Number | BAV99 | |
| Element Configuration | Dual | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 2.5μA @ 70V | |
| Power Dissipation | 350mW | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA | |
| Forward Current | 200mA | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 2A | |
| Voltage - DC Reverse (Vr) (Max) | 70V | |
| Current - Average Rectified (Io) | 200mA | |
| Forward Voltage | 1V | |
| Max Reverse Voltage (DC) | 70V | |
| Average Rectified Current | 200mA | |
| Reverse Recovery Time | 6 ns |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reverse Current | 2.5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 70V | |
| Peak Non-Repetitive Surge Current | 2A | |
| Reverse Voltage | 70V | |
| Diode Configuration | 1 Pair Series Connection | |
| Max Forward Surge Current (Ifsm) | 1A | |
| Recovery Time | 6 ns | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1.2mm | |
| Length | 2.92mm | |
| Width | 3.05mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
BAV99 CAD Model
Symbol
Footprint
3D Model
BAV99 Connection Diagram
What can be BAV99 used for?
-
General-purpose Switching
-
High Speed Switching
-
Reverse Polarity Protection
-
Clipping or Clamping Circuits
-
Protection circuits

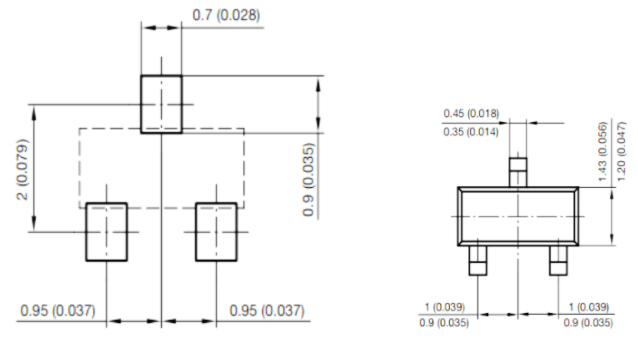

BAV99 Dimension
BAV99 Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor BAV99.
BAV99 Documents
BAV99 Documents
Download datasheets and manufacturer documentation for BAV99
PCN Obsolescence/ EOL
1Q2018 Product EOL 31/Mar/2018
PCN Assembly/Origin
Assembly Site Addition 20/Jul/2015
Frequently Asked Questions
What is BAV99?
The BAV99 device is a 3-pin steering diode with a small forward, large breakdown, and low capacitance. The device consists of stacking two diodes by connecting the cathode to the anode of another and providing pins to the cathode, anode, and between the two diodes.
What is BAV99 used for?
The BAV99 is a Dual in Series SMD Diode package, meaning there will be two diodes connected in series inside an SMD package. The Diodes can be used for small signal high-speed switching applications.
How does BAV99 work?
The BAV99 device is a 3-pin steering diode with a small forward, large breakdown, and low capacitance. The device consists of stacking two diodes by connecting the cathode of one to the anode of another and provides pins to the cathode, anode, and in between the two diodes.
FAQ
What is BAV99?
The BAV99 device is a 3-pin steering diode with a small forward, large breakdown, and low capacitance. The device consists of stacking two diodes by connecting the cathode to the anode of another and providing pins to the cathode, anode, and between the two diodes.
What is BAV99 used for?
The BAV99 is a Dual in Series SMD Diode package, meaning there will be two diodes connected in series inside an SMD package. The Diodes can be used for small signal high-speed switching applications.
How does BAV99 work?
The BAV99 device is a 3-pin steering diode with a small forward, large breakdown, and low capacitance. The device consists of stacking two diodes by connecting the cathode of one to the anode of another and provides pins to the cathode, anode, and in between the two diodes.
