BC338 NPN Transistor: Pinout, Datasheet, and Equivalents

The BC338 is an NPN bipolar transistor in the TO-92 package. Its max collector current is 800mA hence it can drive a variety of loads in electronic circuits. Its collector-emitter voltage is 30V therefore is can easily drive loads from 12V to 24V. Apart from that, with a max collector dissipation of 0.625 mW and a max current gain of 630, the BC338 can perform well in audio frequency-related applications. The max transition frequency (fT) of the BC338 transistor is 200 MHz therefore it can perform smoothly under the 200 MHz frequency band region.

The BC338 has a current gain between 100 and 630. The gain of the BC338-16 ranges from 100 to 250, BC338-25 ranges from 160 to 400, and BC338-40 ranges from 250 to 630.

Symbol

Footprint

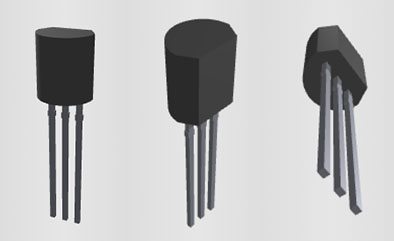

3D Model

• Transistor Type: NPN

• Package Type: TO-92

• Max Collector Current: 800 mA

• Max Collector-Emitter Voltage: 30 V

• Max Collector-Base Voltage: 25 V

• Max Emitter-Base Voltage: 5 V

• Max Collector Dissipation: 625 mW

• Transition Frequency: 100 MHz

• DC Current Gain (hFE): 100 - 630

• Storage & Operating temperature: -55 to +150 Centigrade

Rochester Electronics, LLC BC338 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC BC338.

BC337, 2N2222, 2N4401, S8050, SS9013, 2N3705, 2N3706, 2N7051, BC877

Please check the pin configuration and parameters before replacing them in your circuit.

The BC338 is designed to use in a variety of switching and amplification applications. When used as a switch or to control load it can handle a max of 800mA which is useful to control a variety of different devices in the circuit. For example, it can be used to drive high current relay switches, power transistors, high power LEDs, etc. The BC338 can also be used in audio applications like audio amplifier stages, audio preamplifier stages, etc. Due to its good collector dissipation and high DC current gain it can also be used to amplify any type of signal. With an emitter-base voltage of only 5V, the BC338 can also be used at the output of microcontrollers.

• General switching and amplification applications

• AF-Driver stages and low power output stages

• Switching loads under 800mA

• Darlington pairs

• Audio amplifier

• Audio amplifier stages

• Audio Preamplifier

• Audio Preamplifier stages

• Sensor circuits

Rochester Electronics is the largest continuing source manufacturer of semiconductors in the world. With product licensing from leading manufacturers such as Analog Devices, Altera, Cypress, Fairchild, Freescale, Infineon, Intel, NXP, Renesas, and Texas Instruments, Rochester continues to manufacture and distribute mature products. For industrial, transportation, and hi-reliability markets, product life extension is critical for long-term production and maintenance. With over 100,000 products and 15 billion units in stock, no other company compares to our selection, capabilities, or solutions.

Download datasheets and manufacturer documentation for Rochester Electronics, LLC BC338.
