TRANS PNP 45V 0.1A TO-92
BC557B is a small PNP transistor, also the silicon epitaxial planar PNP transistor. This article mainly introduces pinout, features, datasheet, and other detailed information about ON Semiconductor BC557B.
BC557BG
BC557B is a small PNP transistor, also the silicon epitaxial planar PNP transistor. The package to-92 is suitable for through-hole PCB assembly, and the NPN complementary type is BC547B.
Symbol

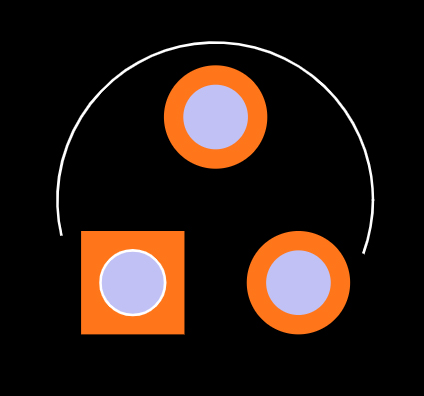

Footprint
3D Model
• Switching and Amplifier
• High Voltage: BC556, VCEO= -65V
• Low Noise: BC559, BC560
• Complement to BC546, BC547, BC548, BC549, and BC550
• Pb−Free Packages are Available
ON Semiconductor BC557BG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BC557BG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 2 days ago) | |
| Contact Plating | Copper, Silver, Tin | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Surface Mount | NO | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 45V | |
| Collector-Emitter Saturation Voltage | -300mV | |
| Number of Elements | 1 Element | |
| hFEMin | 180 | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Bulk | |
| Published | 2007 | |
| JESD-609 Code | e1 | |
| Pbfree Code | yes | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Voltage - Rated DC | -45V | |
| Max Power Dissipation | 625mW | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | -100mA | |
| Frequency | 320MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | BC557 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 625mW | |
| Transistor Application | AMPLIFIER | |
| Gain Bandwidth Product | 320MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 45V | |
| Max Collector Current | 100mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 2mA 5V | |
| Current - Collector Cutoff (Max) | 100nA | |
| Vce Saturation (Max) @ Ib, Ic | 650mV @ 5mA, 100mA | |
| Transition Frequency | 320MHz | |
| Collector Base Voltage (VCBO) | 50V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 5.33mm | |
| Length | 5.2mm | |
| Width | 4.19mm | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
| Characteristic | Symbol | Max | Unit |
| Thermal Resistance, Junction−to−Ambient | R_x0002_ JA | 200 | °C/W |
| Thermal Resistance, Junction−to−Case | R_x0002_ JC | 83.3 | °C/W |
| Part Number | Description | Manufacturer |
| BC557B-AMMOTRANSISTORS | TRANSISTOR 100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal | NXP Semiconductors |
| BC557BAMOTRANSISTORS | TRANSISTOR 100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, SPT, SC-43, 3 PIN, BIP General Purpose Small Signal | NXP Semiconductors |
| 933202620116TRANSISTORS | TRANSISTOR 100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, SPT, SC-43, 3 PIN, BIP General Purpose Small Signal | NXP Semiconductors |
| 933202620112TRANSISTORS | TRANSISTOR 100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, SPT, SC-43, 3 PIN, BIP General Purpose Small Signal | NXP Semiconductors |
| BC557B,116TRANSISTORS | BC557B | NXP Semiconductors |
| BC557B,112TRANSISTORS | BC557B | NXP Semiconductors |
| BC557B,126TRANSISTORS | BC557B | NXP Semiconductors |
| BC557B-T/RTRANSISTORS | 100mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, SC-43A, 3 PIN | NXP Semiconductors |
● Well Suitable For Tv And Home Appliance Equipment
● Small Load Switch Transistor With High Gain And Low Saturation Voltage
● Multi-Channel Data Acquisition
● Portable, Battery-Operated Systems
ON Semiconductor is committed to maintaining a distinctive, world-class quality system, which transcends all international quality standards and aims to exceed customer expectations. The Business Process Model ensures that they meet or exceed the customer's expectations and the business goals.
Download datasheets and manufacturer documentation for ON Semiconductor BC557BG.
Download datasheets and manufacturer documentation for BC557BG
