Transistor As a Switch |NPN & PNP|BC547|BC558|(Self Quarantine 6th Day)
TRANS PNP 30V 0.1A TO-92
Hello Everyone! I am glad to see you here. I welcome you on board. In this post today, I’ll be discussing the Introduction to BC558. BC558 is a bipolar junction transistor used for amplification and switching purposes. This article is about its pinout, alternatives,datasheet and other detailed information.
BC558C
BC558 is a bipolar junction transistor used for amplification and switching purposes. It belongs to the PNP transistor family and is available in a TO-92 package.
For using it as a switch to drive load it can handle 100mA of load with 30V. The collector dissipation is 500mW and maximum DC current gain is 800 therefore it can also be used as audio preamplifier purposes and audio amplification purposes.
The emitter-base voltage is -5V due to which it can also be used at the output of microcontrollers. The device manufactured in three different part numbers like BC558A, BC558B and BC558C and the only difference between these three part numbers are their HFE values which can be detected by checking the last alphabet after the number, if the last alphabet is “A” then the HFE value will be 110~220, if “B” then 200~450 and if its “C” then it will be 420~800.
Symbol
Footprint

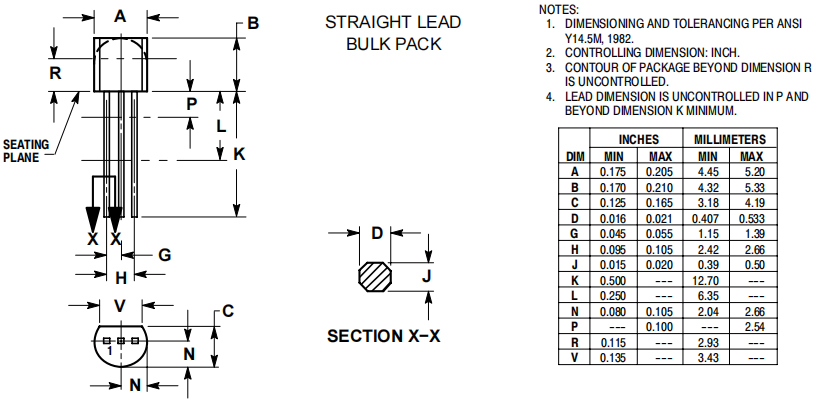

◆Package Type: TO-92
◆ Transistor Type: PNP
◆ Max Collector Current(IC): -100mA
◆ Peak Collector current (Ic) is 200mA
◆ Base Current(IB) is 200mA peak
◆ Max Collector-Emitter Voltage (VCE): -30V
◆ Max Collector-Base Voltage (VCB): -30V
◆ Max Emitter-Base Voltage (VBE): -5V
◆ Max Collector Dissipation (Pc): 500 Milliwatt
◆ Max Transition Frequency (fT): 100 MHz
◆ Minimum & Maximum DC Current Gain (hFE): 110 to 800
◆ Max Storage & Operating temperature Should be: -65 to +150Centigrade
ON Semiconductor BC558C technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BC558C.
ON Semiconductor BC558C technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BC558C.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | OBSOLETE (Last Updated: 1 week ago) | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-92-3 | |
| Weight | 200mg | |
| hFEMin | 110 | |
| Number of Elements | 1 Element | |
| Current-Collector (Ic) (Max) | 100mA | |
| Collector-Emitter Saturation Voltage | -250mV | |
| Collector-Emitter Breakdown Voltage | 30V | |
| Published | 2007 | |
| Packaging | Bulk | |
| Operating Temperature | 150°C TJ |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | Through Hole | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Voltage - Rated DC | -30V | |
| Max Power Dissipation | 500mW | |
| Current Rating | -100mA | |
| Frequency | 150MHz | |
| Base Part Number | BC558 | |
| Polarity | PNP | |
| Element Configuration | Single | |
| Power Dissipation | 500mW | |
| Power - Max | 500mW | |
| Gain Bandwidth Product | 150MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 650mV | |
| Max Collector Current | 100mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 420 @ 2mA 5V | |
| Current - Collector Cutoff (Max) | 15nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 650mV @ 5mA, 100mA | |
| Voltage - Collector Emitter Breakdown (Max) | 30V | |
| Frequency - Transition | 150MHz | |
| Collector Base Voltage (VCBO) | -30V | |
| Emitter Base Voltage (VEBO) | -5V | |
| RoHS Status | RoHS Compliant | |
| REACH SVHC | No SVHC | |
| Lead Free | Lead Free |
◆Build simple audio circuits
◆General purpose amplifier
◆Driver Modules like Relay Driver, LED driver etc..
◆ Amplifier modules like Audio amplifiers, signal Amplifier etc..
◆ Darlington pair
◆ Preamplifier
◆ Drive Load under 100mA
◆ Used for amplification and switching purposes.
◆ Used to control motor.
◆ Employed for impedance buffering.
◆ Incorporated in robotics and instrumentation projects.
◆ Used in H- Bridge circuits and current mirror circuits.
◆ Used for constructing Astable bistable and Bistable multivibrators.
◆ Used in comparator and oscillator circuits.
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for ON Semiconductor BC558C.
Download datasheets and manufacturer documentation for BC558C
