DIODES INC. - BC817-40-7-F - Bipolar (BJT) Single Transistor, NPN, 45 V, 100 MHz, 310 mW, 500 mA, 250 hFE Diodes Incorporated's BC817?40 is a 45V NPN Small Signal Transistor that is housed in the SC?59/SOT23 package.
352
Mar 15, 2022
Glenn Tracy
Transistors - NPN & PNP - Basic Introduction
DIODES INC. - BC817-40-7-F - Bipolar (BJT) Single Transistor, NPN, 45 V, 100 MHz, 310 mW, 500 mA, 250 hFE
Diodes Incorporated's BC817−40 is a 45V NPN Small Signal Transistor that is housed in the SC−59/SOT23 package. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
BC817-40-7-F
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.26918 | $0.27 |
| 10+ | $0.25394 | $2.54 |
| 100+ | $0.23957 | $23.96 |
| 500+ | $0.22601 | $113.01 |
| 1000+ | $0.21322 | $213.22 |
The following figure is the diagram of BC817-40 Pinout.
Pinout
The followings are BC817-40 Symbol and Footprint.
PCB Symbol

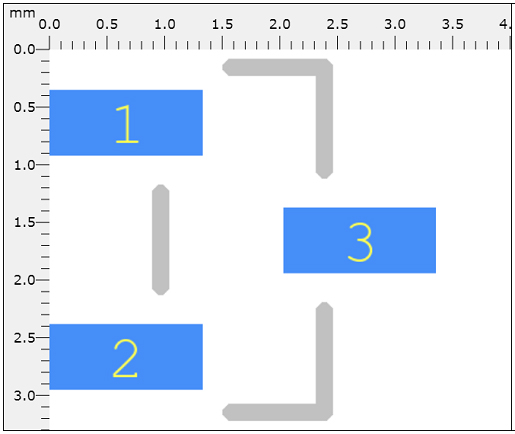

PCB Footprint
Diodes Incorporated's BC817−40 is a 45V NPN Small Signal Transistor that is housed in the SC−59/SOT23 package. This article provides you with a basic overview of the BC817-40 NPN Transistor, including its pin descriptions, features and specifications, etc., to help you quickly understand what BC817-40 is.
● Ideally Suited for Automatic Insertion
● Epitaxial Planar Die Construction
● Complementary PNP Types Available
● For switching and AF Amplifier Applications
● Totally Lead-Free & Fully RoHS Compliant
● Halogen and Antimony Free. "Green" Device
● Qualified to AEC-Q101 Standards for High Reliability
Diodes Incorporated BC817-40-7-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated BC817-40-7-F.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Weight | 7.994566mg | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 45V | |
| Collector-Emitter Saturation Voltage | 700mV | |
| Current-Collector (Ic) (Max) | 500mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | -65°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q101 | |
| Published | 2005 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Additional Feature | HIGH RELIABILITY | |
| Max Power Dissipation | 310mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Frequency | 100MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | BC817 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 350mW | |
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 100MHz | |
| Polarity/Channel Type | NPN |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 45V | |
| Max Collector Current | 800mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 100mA 1V | |
| Current - Collector Cutoff (Max) | 100nA | |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA | |
| Transition Frequency | 100MHz | |
| Max Breakdown Voltage | 45V | |
| Collector Base Voltage (VCBO) | 50V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 1mm | |
| Length | 3.05mm | |
| Width | 1.4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Model number | Manufacturer | Description |
| BC817-40-R2-00001 | PanJit Semiconductor | Small Signal Bipolar Transistor |
| BC817-40,215 | NXP Semiconductors | BC817; BC817W; BC337 - 45 V, 500 mA NPN general-purpose transistors TO-236 3-Pin |
| BC817-40TRL | NXP Semiconductors | TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal |
| BC817-40Q-7-F | Diodes Incorporated | Small Signal Bipolar Transistor, 0.5A I(C), NPN |
| BC817-40-R1-00001 | PanJit Semiconductor | Small Signal Bipolar Transistor |
| BC817-40TC | Zetex / Diodes Inc | Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN |
| BC817-40-AU-R1-000A1 | PanJit Semiconductor | Small Signal Bipolar Transistor |
| BC817.40 | Central Semiconductor Corp | Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN |
| BC817-40E6327 | Rochester Electronics LLC | 500mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR |
| BC817-40-13 | Diodes Incorporated | Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3 |
The following diagrams show the BC817-40 Package.
View A
View B
View C
The following is the Marking Information of BC817-40.
Marking Information
The following diagram shows the BC817-40 Suggested Pad Layout.
Suggested Pad Layout
Diodes Incorporated delivers high-quality semiconductor products to the world's leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers' needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Download datasheets and manufacturer documentation for BC817-40-7-F
