How to use BC847 Transistor
BC847B is a kind of NPN general-purpose transistor. This passage is going to introduce BC847B from the perspectives of description, pinout, alternatives, features, and other aspects. If you are interested in BC847B, please go ahead.
BC847B

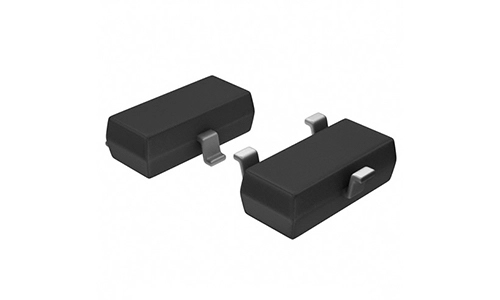

The BC847B is an NPN general-purpose Transistor in SMD plastic package.

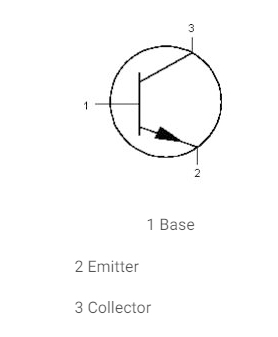

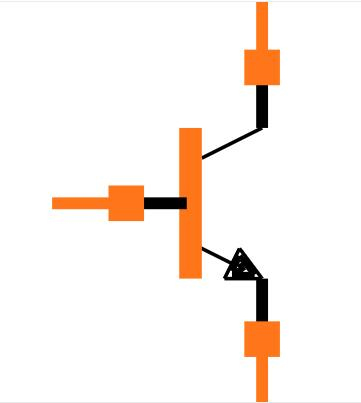

Symbol

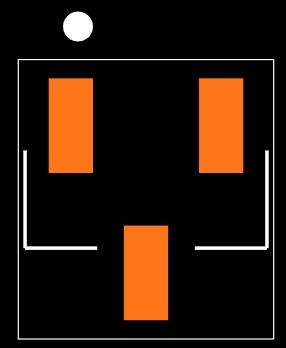

Footprint

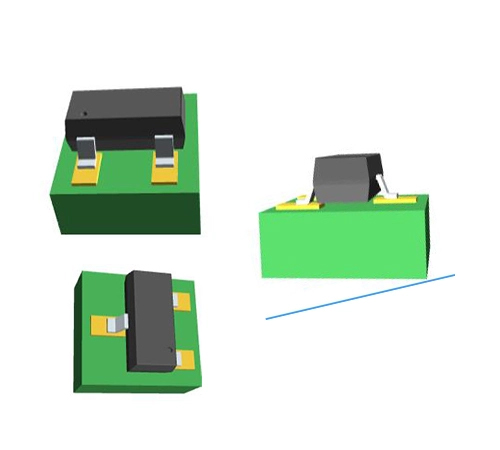

3D Models
(1) High current gain
(2) Low collector-emitter saturation voltage
(3) Low noise between 30 Hz and 15 kHz
(4) Complementary types: BC857...-BC860...(PNP)
(5) Pb-free (RoHS compliant) package
(6) Qualified according to AEC Q1011
(7) BC847BL3 is not qualified according to AEC Q101
(8) 1BC847BL3 is not qualified according to AEC Q101
STMicroelectronics BC847B technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BC847B.
STMicroelectronics BC847B technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BC847B.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Collector-Emitter Breakdown Voltage | 45V | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.95 | |
| Voltage - Rated DC | 50V | |
| Max Power Dissipation | 250mW | |
| Current Rating | 100mA | |
| Base Part Number | BC847 | |
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 600mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Collector Current | 100mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA 5V | |
| Current - Collector Cutoff (Max) | 15nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA | |
| Max Breakdown Voltage | 45V | |
| Frequency - Transition | 100MHz | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
(1) General-purpose switching and amplification
(2) For AF input stages and driver applications
(3) well suitable for portable equipment
(4) small load switch transistors with high gain and low saturation voltage

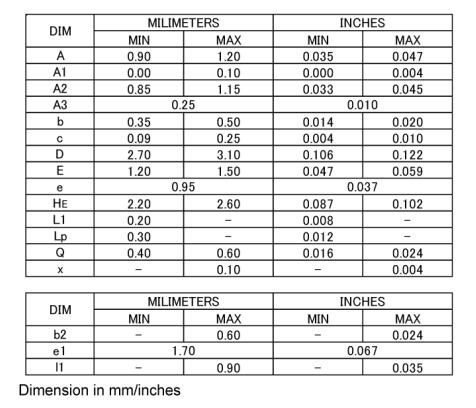

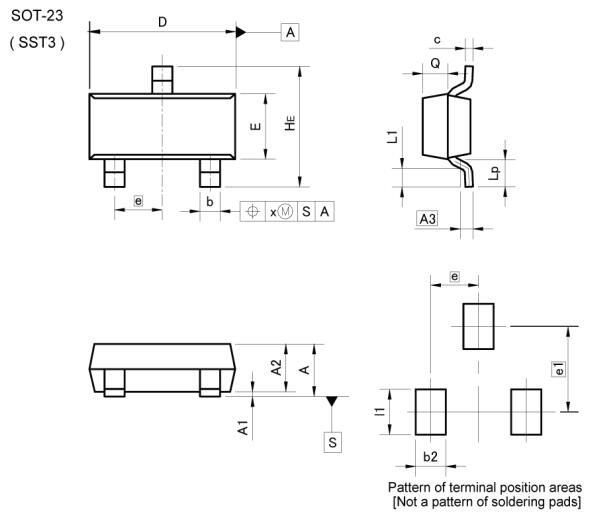

| Type number | Package version | Package name | Size (mm) | Polarity | P tot (mW) | V CEO [max] (V) | I C [max] (mA) | h FE [min] | h FE [max] |
| BC847B | SOT23 | SOT23 | 2.9 x 1.3 x 1 | NPN | 250 | 45 | 100 | 200 | 450 |
STMicroelectronics is a French-Italian multinational electronics and semiconductors manufacturer headquartered in Plan-les-Ouates near Geneva, Switzerland. The company resulted from the merger of two government-owned semiconductor companies in 1987: "Thomson Semiconductors" of France and "SGS Microelettronica" of Italy. It is commonly called "ST", and it is Europe's largest semiconductor chip maker based on revenue. While STMicroelectronics's corporate headquarters and the headquarters for the EMEA region are based in the Canton of Geneva, the holding company, STMicroelectronics N.V. is incorporated in the Netherlands.
The company's US headquarters is in Coppell, Texas. Headquarters for the Asia-Pacific region is in Singapore whilst Japan and Korea operations are headquartered in Tokyo. The company headquarters for the China region is in Shanghai.
You can replace the BC847B with the 2SC1623, 2SC2412, 2SC2712, 2SC3441, 2SC3912, 2SC3913, 2SC3914, 2SC3915, 2SC4738, 2SD601A, 2STR1160, BC817, BC846, BC846B, BC850, BC850B, BCV72, BCW66, BCX19, FMMT619, FMMT620, FMMTA05, FMMTA06, KSC1623, KST05, KST06, KTC3875, KTC3875S, MMBT100, MMBT2484, MMBT5210, MMBTA05, MMBTA06, PMBTA06, SMBTA05 or SMBTA06.
Download datasheets and manufacturer documentation for BC847B
