BCM857BS Transistor is the PNP/PNP matched double transistors. This article will unlock its datasheet, pinout, feature, application and more about BCM857BS.
BCM857BS Transistor: SOT363 Package, BCM857BS Datasheet, Pinout
TRANS 2PNP 45V 0.1A 6TSSOP BCM857BS Transistor is the PNP/PNP matched double transistors. This article will unlock its datasheet, pinout, feature, application and more about BCM857BS.
79
Jan 20, 2022
Eli Grey
BCM857BS,115
2420In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.47887 | $0.48 |
| 10+ | $0.45176 | $4.52 |
| 100+ | $0.42619 | $42.62 |
| 500+ | $0.40207 | $201.04 |
| 1000+ | $0.37931 | $379.31 |
Unit Price:$0.47887
Subtotal: $0.48
Quick Links
BCM857BS Pinout
BCM857BS Cad Model
BCM857BS Description
BCM857BS belongs to PNP /PNP matched double transistors in small Surface-Mounted Device (SMD) plastic packages. The transistors are fully isolated internally.
BCM857BS Feature
■ Current gain matching
■ Base-emitter voltage matching
■ Drop-in replacement for standard double transistors
BCM857BS Application Circuit
The following figures show the application circuit of BCM857BS.
BCM857BS Alternative
The alternatives for BCM857BS
-
BCM857BS,115
-
BCM857DS
-
BCM857BS-7-F
Specifications
Nexperia USA Inc. BCM857BS,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. BCM857BS,115.
BCM857BS,115 Tech Specifications
BCM857BS,115 Tech Specifications
Nexperia USA Inc. BCM857BS,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. BCM857BS,115.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | |
| Number of Pins | 6Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | -45V | |
| Collector-Emitter Saturation Voltage | 400mV | |
| Current-Collector (Ic) (Max) | 100mA | |
| Number of Elements | 2 Elements | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2009 | |
| Tolerance | 5% | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 | |
| Max Power Dissipation | 300mW | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Frequency | 175MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | BCM857 | |
| Pin Count | 6 | |
| Polarity | PNP | |
| Voltage | 45V | |
| Element Configuration | Dual | |
| Current | 1A | |
| Power Dissipation | 300mW | |
| Transistor Application | AMPLIFIER | |
| Test Current | 5mA | |
| Gain Bandwidth Product | 175MHz | |
| Zener Voltage | 39V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | 2 PNP (Dual) Matched Pair | |
| Collector Emitter Voltage (VCEO) | -45V | |
| Max Collector Current | 100mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA 5V | |
| Current - Collector Cutoff (Max) | 15nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 100mA | |
| Transition Frequency | 175MHz | |
| Max Breakdown Voltage | 45V | |
| Collector Base Voltage (VCBO) | 50V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 1mm | |
| Length | 2.2mm | |
| Width | 1.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
BCM857BS Package

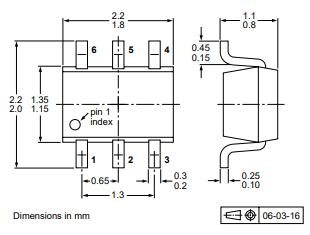

BCM857BS SOT363 Package
BCM857BS Manufacturer
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
Datasheet PDF
Download datasheets and manufacturer documentation for Nexperia USA Inc. BCM857BS,115.
BCM857BS,115 Documents
BCM857BS,115 Documents
Download datasheets and manufacturer documentation for BCM857BS,115
Frequently Asked Questions
Which transistor belongs to PNP / PNP matched double transistors in small Surface-Mounted Device (SMD) plastic packages?
BCM857BS.
What is small outline transistor?
A small outline transistor (SOT) is a family of small footprint, discrete surface mount transistors commonly used in consumer electronics. The most common SOT are SOT23 variations,[1] also manufacturers offer the nearly identical thin small outline transistor (TSOT) package, where lower height is important.
FAQ
Which transistor belongs to PNP / PNP matched double transistors in small Surface-Mounted Device (SMD) plastic packages?
BCM857BS.
What is small outline transistor?
A small outline transistor (SOT) is a family of small footprint, discrete surface mount transistors commonly used in consumer electronics. The most common SOT are SOT23 variations,[1] also manufacturers offer the nearly identical thin small outline transistor (TSOT) package, where lower height is important.
