Hello Guys! Hope you’re fine today. I welcome you on board. In this post today, I’ll walk you through the Introduction to BD136.BD136 is a medium power general-purpose transistor mainly used for switching and audio amplification purposes. This article mainly introduce its uses, price, datasheet and other detailed information about STMicroelectronic BD136.
BD136
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.62488 | $0.62 |
| 10+ | $0.58951 | $5.9 |
| 100+ | $0.55615 | $55.62 |
| 500+ | $0.52466 | $262.33 |
| 1000+ | $0.49497 | $494.97 |
BD136 is a PNP general purpose transistor mainly used for switching and amplification purpose.As a switch it can handle or drive maximum load of -1.5A continuously with -45V load voltage. It can also perform well as an amplifier thus it can be used in many audio and other type of signal amplification circuits.

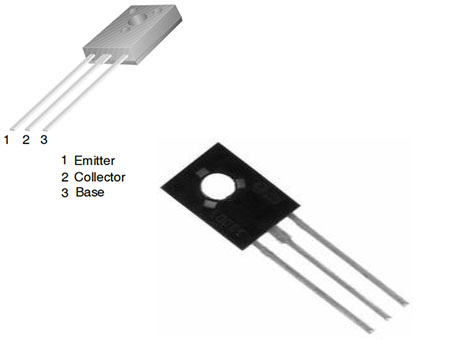

This transistor is manufactured in TO-126 package. It can handle or drive maximum collector current of -1.5A hence we cannot connect loads that consume more than 1.5A using this transistor. And the maximum pulse current is 2A but a good and suitable heatsink must be required with the transistor to operate it without an problem. It comes with three terminals named as emitter, collector and base.
Symbol

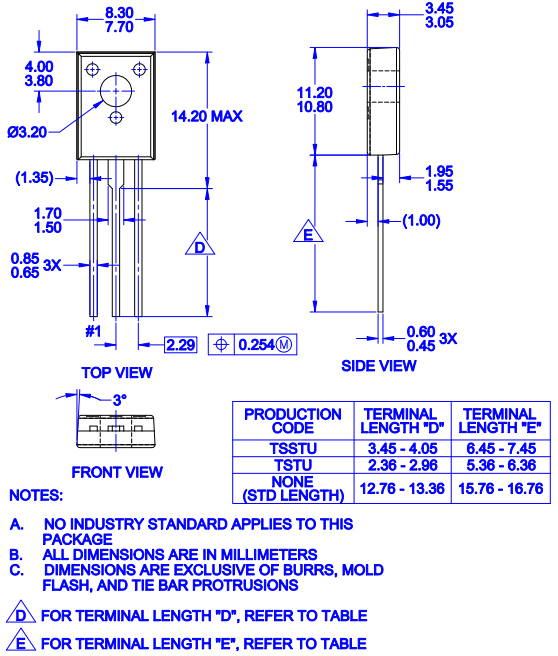

Footprint

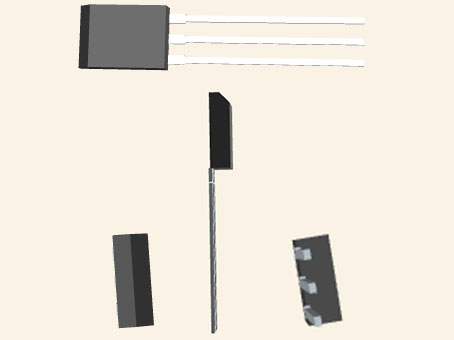

3D Model
● Transistor Type: PNP
● Collector Dissipation - 12.5 W
● Max Collector Current(IC): –5A
● DC current gain (hfe) is 25 to 250
● Collector-Base voltage (VCB) is 45V
● Collector-Emitter voltage (VCE) is 45 V
● Max Collector Dissipation (Pc): 5 Watt
● Max Emitter-Base Voltage (VEBO): –5V
● Available in To-225，TO-126 package
● Max Transition Frequency (fT): 190 MHz
● Continuous Collector current (IC) is 1.5A
● Emitter Base Breakdown Voltage (VBE) is 5V
● High DC Current Gain (hFE), typically 80 when IC=10mA
● Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

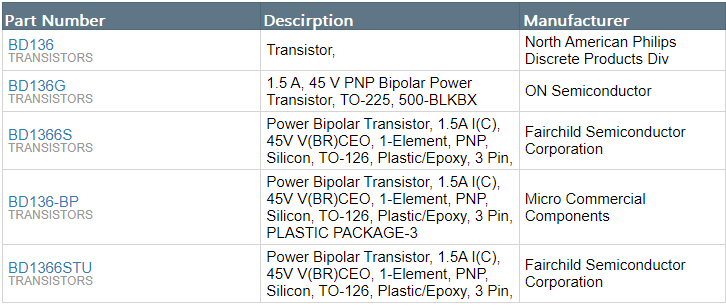

STMicroelectronics BD136 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BD136.
STMicroelectronics BD136 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BD136.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 8 months ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-225AA, TO-126-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 45V | |
| Collector-Emitter Saturation Voltage | 500mV | |
| Number of Elements | 1 Element | |
| hFEMin | 25 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Max Power Dissipation | 1.25W | |
| Base Part Number | BD136 | |
| Element Configuration | Single | |
| Power Dissipation | 1.25W | |
| Case Connection | ISOLATED | |
| Transistor Application | AMPLIFIER | |
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 45V | |
| Max Collector Current | 1.5A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 2V 150MA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Collector Cutoff (Max) | 100nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | |
| Transition Frequency | 75MHz | |
| Max Breakdown Voltage | 45V | |
| Collector Base Voltage (VCBO) | 45V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 10.8mm | |
| Length | 7.8mm | |
| Width | 2.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The BD136 is a medium power PNP transistor. It can be used to control heavy loads since it has a high collector current value of 1.5A.
Another peculiar fact about this transistor is that it comes in plastic package, while most medium power transistor are available only in metal can package.
This reduces the cost of the Transistor and also since the package is not conductive it will not be affected by other noise in the circuit. Due to this feature this transistor is widely used in amplifier applications.
So if you are looking for a medium power PNP transistor in Plastic package then this Transistor might be the right choice for you.
▲Motor Driver
▲Darlington Pair
▲Audio amplifiers
▲Load driver circuits
▲Impedance buffering.
▲Current mirror circuits.
▲Drive loads under 1.5A.
▲Audio Amplifier Stages
▲Incorporated in H- Bridge circuits.
▲Comparator and oscillator circuits.
▲Used for switching and amplification circuit
▲Constructing Astable bistable multivibrators.
▲Signal Amplifier, Power Supply and Battery Charger Circuits
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics BD136.
Download datasheets and manufacturer documentation for BD136
