BD679 Transistor: Pinout, Equivalent and Datasheet

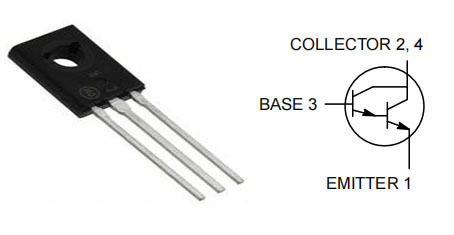

BD679 is a NPN darlington transistor available in TO-225 and TO-126 package. A darlington transistor consists two BJT transistors in a single package which are connected together in a way which results in very high output gain.

The max gain or Hfe of the transistor is 1000 which makes this transistor ideal for high gain applications. The max collector current is 4A and the max peak collector current is 6A.

The collector-emitter voltage or max load voltage of the transistor is 80V and the max collector dissipation of the transistor is 40Watt. BD679 can be used for wide variety of general applications of switching and amplification.

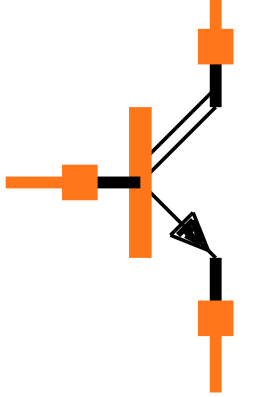

Symbol

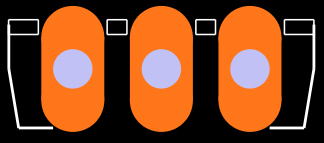

Footprint

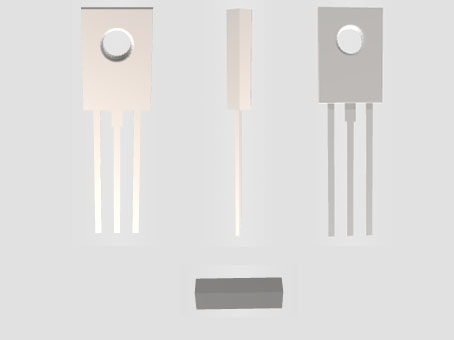

3D Model

●Package Type: TO-225, TO-126

●Pb-Free Packages are Available

●Transistor Type: NPN

●Max Collector Current(IC): 4A

●Max Peak Collector Current: 6A

●Max Collector-Emitter Voltage (VCE): 80V

●Max Collector-Base Voltage (VCB): 80V

●Max Emitter-Base Voltage (VEBO): 5V

●Max Collector Dissipation (Pc): 40 Watt

●Minimum & Maximum DC Current Gain (hFE): 1000

●Max Storage & Operating temperature: -65 to +150 Centigrade

ON Semiconductor BD679 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BD679.

BD679 can be used for any general purpose switching and amplification purposes. With max collector current of 4A it is capable to drive many loads such as motors, other transistors, relays and part of circuits. Moreover it can also be used at the output of electronic platforms such as arduino, raspberry pi etc. Other than that it can also be used to increase gain of many type of signals such as audio and other electronics signals.

■Used in BMS Circuits

■Used in Motor Driver Circuits

■Used in Battery Charger Circuits

■Used in Audio Amplifier Circuits

■Used in Audio Preamplifiers and Its Stages

■Used in Driving or Switching Loads under 4A

■Used in Medium Power Linear

■Used in Switching Application

■Used in General–Purpose Amplifier

ON Semiconductor is a semiconductor supplier company, products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices and design centers in North America, Europe, and the Asia Pacific regions. Its headquarter is in Phoenix, Arizona.
