Hello everyone, I am Rose. Today we will have a discussion about BF245. BF245 is an N-channel silicon field-effect transistors available in TO-92 package. This article mainly introduce replacement, pinout, datasheet and other detailed information about On Semiconductor BF245.
BF245B
BF245 is an N-channel silicon field-effect transistor available in TO-92 package. It is mainly designed to use as an amplifier in the VHF and UHF frequency bands and also as an audio frequency amplifier.
The transistor possesses high gain and low noise capabilities due to which it will perform well to amplify a very small and low gain signal (RF, Audio, or any other signal) to high gain with unwanted noise filtration.
These devices are manufactured in four different types which are BF245, BF245A, BF245B, and BF245C each type is slightly different from the other in Gate-Source voltage and Zero-Gate Voltage Drain Current.
Symbol

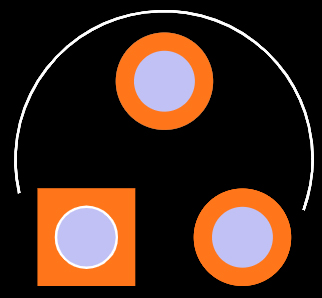

Footprint
3D Model
●Available in TO-92 package
●Transistor Type: N Channel JFET
●Voltage Applied From Drain to Source: 30V(Maximum)
●Drain to Gate Voltage Should Be: 30V(Maximum)
●Reverse Gate to Source Voltage is: –30V(Maximum)
●Continues Drain Current is: 25mA(Maximum)
●Minimum to Maximum Gate to Source Cuttoff Voltage: -0.5 to –0
●Power Dissipation is: 300mW(Maximum)
●Storage & Operating temperature Should Be: -55 to +150 Centigrade
●Low Noise & High Gain
●Frequencies up to 700 MHz.
●Interchangeability of drain and source connections
ON Semiconductor BF245B technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BF245B.
ON Semiconductor BF245B technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BF245B.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 week ago) | |
| Mount | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Weight | 200mg | |
| Breakdown Voltage / V | -30V | |
| Number of Elements | 1 Element | |
| Packaging | Bulk | |
| Published | 2009 | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| HTS Code | 8541.21.00.75 | |
| Voltage - Rated DC | 30V | |
| Current Rating (Amps) | 100mA | |
| Max Power Dissipation | 350mW | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | 240 | |
| Reach Compliance Code | not_compliant | |
| Current Rating | 10mA | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | BF245 | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Operating Mode | DEPLETION MODE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Dissipation | 350mW | |
| Transistor Application | AMPLIFIER | |
| Drain to Source Voltage (Vdss) | 15V | |
| Transistor Type | N-Channel JFET | |
| Continuous Drain Current (ID) | 15mA | |
| Gate to Source Voltage (Vgs) | -30V | |
| Drain Current-Max (Abs) (ID) | 0.1A | |
| Drain to Source Breakdown Voltage | 30V | |
| FET Technology | JUNCTION | |
| Highest Frequency Band | ULTRA HIGH FREQUENCY B | |
| Height | 4.58mm | |
| Length | 4.58mm | |
| Width | 3.86mm | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Lead Free |
BF245 transistor can be used in many applications such as mic preamplifiers, audio preamplifiers, high power audio amplifier stages, low noise audio amplifiers, RF transmitters and receivers, RF signal boosters, RF detectors, RF sensors, VHF and UHF video senders and receivers, etc.
●Used in VHF Signal Amplifier
●Used in UHF Signal Amplifier
●Used in RF Oscillators
●Used in Audio amplification and preamplification
●Used in Verity of Low-Level Signal Amplification
●Used in Sensor & Detector Circuits
●Used in LF, and DC amplifiers.
ON Semiconductor is a semiconductor supplier company. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices and design centers in North America, Europe, and the Asia Pacific regions. Its headquarter is in Phoenix, Arizona.
Download datasheets and manufacturer documentation for ON Semiconductor BF245B.
Download datasheets and manufacturer documentation for BF245B
