TRANS PNP 250V 0.05A TO-92 BF423 is a PNP bipolar junction transistor manufactured in the TO-92 plastic package. This article is going to explain pinout, datasheet, equivalents, and other details about the BF423 transistor.
1125
Mar 16, 2022
Glenn Tracy
279 Transistors BF422, BF423 e BF485
TRANS PNP 250V 0.05A TO-92
BF423 is a PNP bipolar junction transistor manufactured in the TO-92 plastic package. This article is going to explain pinout, datasheet, equivalents, and other details about the BF423 transistor.
BF423
The BF423 transistor is a PNP bipolar junction transistor with a TO-92 plastic packaging. The transistor's pins are organized as follows: The transistor's first pin is the emitter, the second pin is the collector, and the third pin is the base.
The BF423 transistor's maximum collector current is 50mA, its maximum collector to emitter voltage is -250V, its maximum collector to base voltage is -250V, its minimum DC current gain is 50, its maximum collector dissipation is 830mW, and its maximum transition frequency is 60 MHz, though some manufacturers make it with a transition frequency of 100MHz (fT).

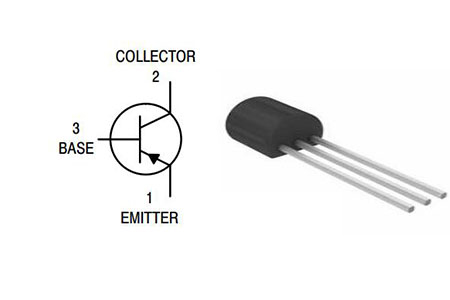

BF423 Pinout

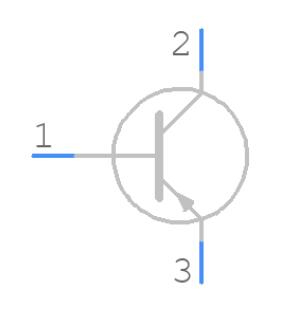

BF423 Symbol

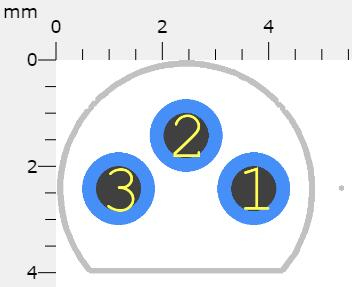

BF423 Footprint
ON Semiconductor BF423 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BF423.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 week ago) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Surface Mount | NO | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 250V | |
| Collector-Emitter Saturation Voltage | -500mV | |
| Current-Collector (Ic) (Max) | 500mA | |
| Number of Elements | 1 Element | |
| hFEMin | 50 | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Bulk | |
| Published | 2005 | |
| JESD-609 Code | e0 | |
| Pbfree Code | no |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| HTS Code | 8541.21.00.95 | |
| Voltage - Rated DC | -250V | |
| Max Power Dissipation | 830mW | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | 240 | |
| Reach Compliance Code | not_compliant | |
| Current Rating | -50mA | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | BF423 | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified |
| Product Attribute | Attribute Value | |
|---|---|---|
| Element Configuration | Single | |
| Power Dissipation | 830mW | |
| Transistor Application | AMPLIFIER | |
| Gain Bandwidth Product | 60MHz | |
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 500mV | |
| Max Collector Current | 500mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 25mA 20V | |
| Current - Collector Cutoff (Max) | 10nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 2mA, 20mA | |
| Transition Frequency | 60MHz | |
| Collector Base Voltage (VCBO) | -250V | |
| Emitter Base Voltage (VEBO) | 5V | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Lead Free |
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.83 W
Maximum Collector -Base Voltage |Vcb|: 250 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 1.6 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Noise Figure, dB: -
Package: TO92
High voltage application
Monitor equipment application
TV and monitor class B video circuitry
Switching circuits
And many other general-purpose and high voltage applications
BF422, BF422A, BF422L, BF422P, BF422P3, BF422S, BF422W, BF422W3, 2N2222, BF423A , BF423L, BF423P, BF423P3, BF423S, BF423W, BF423W3, BF424
This BF423 transistor can be utilized in TV and monitor class B video output circuits, but it is not restricted to these applications; it can also be used in AC doorbells and a number of other AC applications.
| Attribute | Description |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |

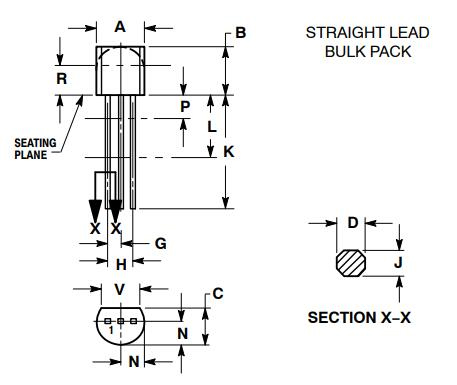

BF423 Package Outlines
onsemi (formerly ON Semiconductor until August 5, 2021) is an American semiconductor supplier company, formerly in the Fortune 500, but dropping into the Fortune 1000 (ranked 512) in 2020. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power applications.
Download datasheets and manufacturer documentation for BF423
