Trans GP BJT NPN 4V 0.03A 4-Pin(3 Tab) SOT-343 T/R
The BF888H6327XTSA1 is a high-performance bipolar NPN RF transistor.
BF888H6327XTSA1 NPN RF Transistor：Datasheet, Pinout and Features
Trans GP BJT NPN 4V 0.03A 4-Pin(3+Tab) SOT-343 T/R
52
Aug 6, 2021
Kent Chaplin
BF888H6327XTSA1
360000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.89778 | $0.9 |
| 10+ | $0.84696 | $8.47 |
| 100+ | $0.79902 | $79.9 |
| 500+ | $0.75379 | $376.9 |
| 1000+ | $0.71113 | $711.13 |
Unit Price:$0.89778
Subtotal: $0.9
Quick Links
BF888H6327XTSA1 Pinout
BF888H6327XTSA1 CAD Modle

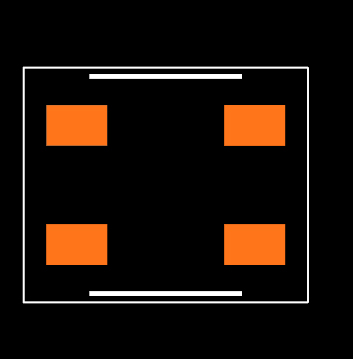

Footprint
BF888H6327XTSA1 Description
The BF888H6327XTSA1 is a 4V 0.03A 4 pin high-performance bipolar NPN RF transistor, available in the SOT-343 T/R package.
BF888H6327XTSA1 Features
• High transducer gain of typ. 14 dB @ 25 mA,6 GHz
• Low minimum noise figure of typ. 0.85 dB @ 6GHz
• High output compression of typ. 11 dBm @ 25 mA
• Pb-free (RoHS compliant) package
• For a wide range of non-automotive applications
- 2nd and 3rd LNA stage and mixer stage in LNB
- 5.8 GHz analog/digital cordless phone
- Satellite radio SDARS
- WLAN, WiMAX, UWB
Specifications
Infineon Technologies BF888H6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies BF888H6327XTSA1.
BF888H6327XTSA1 Tech Specifications
BF888H6327XTSA1 Tech Specifications
Infineon Technologies BF888H6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies BF888H6327XTSA1.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Package / Case | SOT-343 | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2010 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 4Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Additional Feature | LOW NOISE | |
| Max Power Dissipation | 160mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Frequency | 47GHz | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| JESD-30 Code | R-PDSO-G4 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity | NPN | |
| Configuration | SINGLE | |
| Power Dissipation | 160mW | |
| Case Connection | EMITTER | |
| Transistor Application | SWITCHING | |
| Collector Emitter Voltage (VCEO) | 4V | |
| Max Collector Current | 30mA | |
| Transition Frequency | 47000MHz | |
| Collector Base Voltage (VCBO) | 13V | |
| Emitter Base Voltage (VEBO) | 1.2V | |
| RoHS Status | ROHS3 Compliant |

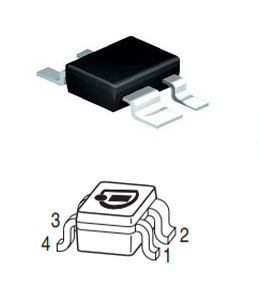

BF888H6327XTSA1 Package
BF888H6327XTSA1 Manufacturer
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics. Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, analogue integrated circuits, and discrete semiconductor products.
Datasheet PDF
Download datasheets and manufacturer documentation for Infineon Technologies BF888H6327XTSA1.
BF888H6327XTSA1 Documents
BF888H6327XTSA1 Documents
Download datasheets and manufacturer documentation for BF888H6327XTSA1
Other Related Documents
Part Number Guide
ConflictMineralStatement
Infineon-company-51.pdf
Frequently Asked Questions
What is BF888H6327XTSA1?
The BF888H6327XTSA1 is a 4V 0.03A 4 pin high-performance bipolar NPN RF transistor, available in the SOT-343 T/R package.
What is the transition frequency of BF888H6327XTSA1?
The transition frequency of BF888H6327XTSA1 is 47000 MHz.
When did BF888H6327XTSA1 publish?
It was published in 2010.
What is NPN Transistor?
NPN transistors are a type of bipolar transistor with three layers that are used for signal amplification. It is a device that is controlled by the current. A negative-positive-negative transistor is denoted by the abbreviation NPN. ... In an NPN transistor, the flow of electrons is what causes it to conduct.
What is a NPN transistor used for?
Another common application for NPN transistors is to use them as an amplifier, in which a small increase in the input voltage induces a large change in the output voltage. NPN transistors are used for this purpose in almost all phones electronic devices in which sound amplification or reproduction is required.
FAQ
What is BF888H6327XTSA1?
The BF888H6327XTSA1 is a 4V 0.03A 4 pin high-performance bipolar NPN RF transistor, available in the SOT-343 T/R package.
What is the transition frequency of BF888H6327XTSA1?
The transition frequency of BF888H6327XTSA1 is 47000 MHz.
When did BF888H6327XTSA1 publish?
It was published in 2010.
What is NPN Transistor?
NPN transistors are a type of bipolar transistor with three layers that are used for signal amplification. It is a device that is controlled by the current. A negative-positive-negative transistor is denoted by the abbreviation NPN. ... In an NPN transistor, the flow of electrons is what causes it to conduct.
What is a NPN transistor used for?
Another common application for NPN transistors is to use them as an amplifier, in which a small increase in the input voltage induces a large change in the output voltage. NPN transistors are used for this purpose in almost all phones electronic devices in which sound amplification or reproduction is required.
