BFS20 is NPN medium frequency transistor. This article will cover its pinout, datasheet, feature and more details about BFS20.
BFS20 BJT Transistor: SOT23, BFS20 Datasheet, Pinout
TRANS NPN 20V 0.025A SOT23 BFS20 is NPN medium frequency transistor. This article will cover its pinout, datasheet, feature and more details about BFS20.
104
Feb 3, 2022
Steward Hudson
BFS20,235
321400In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.29929 | $0.3 |
| 10+ | $0.28235 | $2.82 |
| 100+ | $0.26637 | $26.64 |
| 500+ | $0.25129 | $125.65 |
| 1000+ | $0.23707 | $237.07 |
Unit Price:$0.29929
Subtotal: $0.3
Quick Links

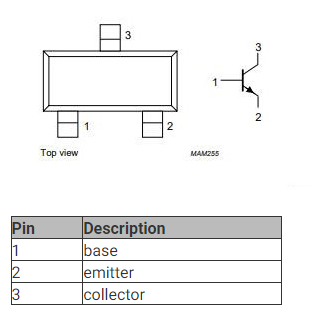

BFS20 Pinout

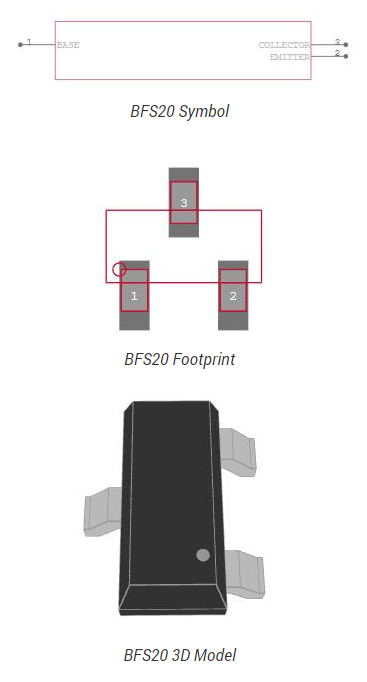

BFS20 CAD Model
BFS20 Description
BFS20 is an NPN medium frequency transistor in a SOT23 plastic package.
BFS20 Feature
• IC(max) = 25 mA
• VCEO(max) = 20 V
• Very low feedback capacitance (typ. 350 fF).
BFS20 Application
• IF and VHF thick and thin-film circuit applications.

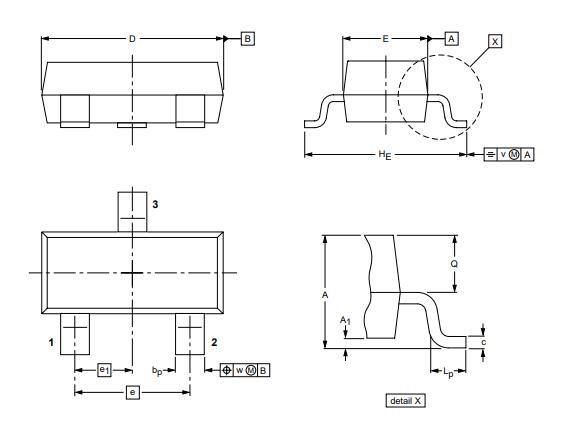

BFS20 Package
BFS20 Manufacturer
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting
Specifications
Nexperia USA Inc. BFS20,235 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. BFS20,235.
BFS20,235 Tech Specifications
BFS20,235 Tech Specifications
Nexperia USA Inc. BFS20,235 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. BFS20,235.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 20V | |
| Number of Elements | 1 Element | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q101 | |
| Published | 2009 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Max Power Dissipation | 250mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Frequency | 450MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | BFS20 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 250mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gain Bandwidth Product | 450MHz | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 20V | |
| Max Collector Current | 25mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 7mA 10V | |
| Current - Collector Cutoff (Max) | 100nA ICBO | |
| Transition Frequency | 450MHz | |
| Max Breakdown Voltage | 20V | |
| Collector Base Voltage (VCBO) | 30V | |
| Emitter Base Voltage (VEBO) | 4V | |
| Continuous Collector Current | 25mA | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
Datasheet PDF
BFS20,235 Documents
BFS20,235 Documents
Download datasheets and manufacturer documentation for BFS20,235
Datasheets
BFS20
BFS20,235-Nexperia-datasheet-79783867.pdf
BFS20,235-NXP-Semiconductors-datasheet-8326639.pdf
PCN Design/Specification
Resin Hardener 02/Jul/2013
RohsStatement
NXP-Semiconductors-company-12.pdf
Frequently Asked Questions
What is an NPN medium frequency transistor in a SOT23 plastic package?
BFS20.
What is the function of BJT?
As with all transistors, the basic function of a BJT is typically to function as a switch or to amplify, filter, and rectify power. Bipolar transistors are current-controlled and operated devices, meaning that a much smaller base current causes a larger current to flow from emitter to collector.
What is BJT and its working?
A Bipolar Junction Transistor (also known as a BJT or BJT Transistor) is a three-terminal semiconductor device consisting of two p-n junctions which are able to amplify or magnify a signal. It is a current controlled device. The three terminals of the BJT are the base, the collector and the emitter.
FAQ
What is an NPN medium frequency transistor in a SOT23 plastic package?
BFS20.
What is the function of BJT?
As with all transistors, the basic function of a BJT is typically to function as a switch or to amplify, filter, and rectify power. Bipolar transistors are current-controlled and operated devices, meaning that a much smaller base current causes a larger current to flow from emitter to collector.
What is BJT and its working?
A Bipolar Junction Transistor (also known as a BJT or BJT Transistor) is a three-terminal semiconductor device consisting of two p-n junctions which are able to amplify or magnify a signal. It is a current controlled device. The three terminals of the BJT are the base, the collector and the emitter.
