BLM15AG102SN1D 100 MHz Ferrite Bead 0402[FAQ]: Datasheet, Features, and Equivalent Circuit

Murata's BLM15AG102SN1D chip ferrite beads are designed to suppress high-frequency noise in typical signal line applications. These chip ferrite beads are made to reduce the chance of resonance and produce a clean signal waveform. Because EMIFIL chip ferrite beads don't need to be connected to the ground, they can be utilized in circuits with unstable ground lines. The external electrodes' nickel barrier construction provides good solder heat resistance. Because the BLM15AG series ferrite beads generate impedance at low frequencies, they can efficiently suppress noise over a wide frequency range (30MHz to several hundred MHz).

• At noise frequencies, the chip ferrite beads BLM series is designed to behave almost like a resistor, drastically reducing the probability of resonance and leaving signal waveforms undistorted.

• Because the BLM series does not require a connection to the ground, it is useful in circuits without stable ground links.

• The external electrodes' nickel barrier construction provides good solder heat resistance.

• From the comparatively low frequencies, the BLM A series generates an impedance.

• In a wide frequency range, the BLM A series is effective in noise suppression (30MHz to several hundred MHz).

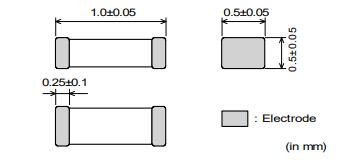

BLM15AG102SN1D Dimensions

BLM15AG102SN1D Equivalent Circuit

• Industrial

• Power Management

• Consumer Electronics

• Portable Devices

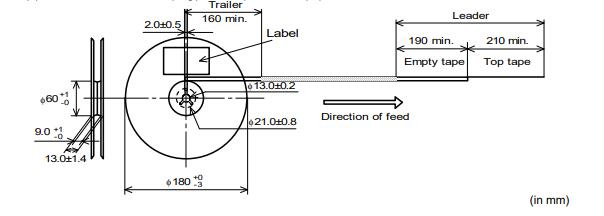

BLM15AG102SN1D Package information
