Ferrite Beads and Chips MURATA - BLM18PG121SN1D - Ferrite Bead, 0603 [1608 Metric], 120 ohm, 2 A, BLM18P Series, 0.05 ohm, ± 25%
BLM18PG121SN1D belongs to The Murata BLM18PG series. This article will cover its datasheet, feature, application and more details about BLM18PG121SN1D. Welcome your RFQ!
BLM18PG121SN1D
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.09967 | $0.1 |
| 500+ | $0.07328 | $36.64 |
| 1000+ | $0.06107 | $61.07 |
| 2000+ | $0.05603 | $112.06 |
| 5000+ | $0.05236 | $261.8 |
| 10000+ | $0.04871 | $487.1 |
| 15000+ | $0.04711 | $706.65 |
| 50000+ | $0.04632 | $2316 |
BLM18PG121SN1D Symbol
BLM18PG121SN1D Footprint
BLM18PG121SN1D 3D Model
BLM18PG121SN1D belongs to The Murata BLM18PG series. The Murata BLM18PG series are EMIFIL chip ferrite beads for suppressing high-frequency noise in power line applications. These chip ferrite beads are designed for reducing the possibility of resonance to provide undistorted signal waveform. EMIFIL chip ferrite beads do not require connection to the ground so they are effectively used in circuits without stable ground lines. The nickel barrier structure of the external electrodes provides excellent solder heat resistance. BLM18PG series can be used in high current circuits due to its low DC resistance and can match power lines to a maximum of 6 A DC.
EIA 0603 standard chip size
Miniaturized ferrite beads
Effective at low impedance line
Available in selective impedance range values at 100MHz
Operating temperature range from -55°C to 125°C
Industrial
Power Management
Consumer Electronics
Portable Devices
The alternatives for BLM18PG121SN1D:
BLM18KG121TN1D
742792625
BLM18PG471SN1D
Operating Temperature: -55°C to +125°C
Storage Temperature : -55°C to +125°C
BLM18PG121SN1D Operating Temperature
The following figure shows the equivalent circuit of BLM18PG121SN1D
BLM18PG121SN1D Equivalent Circuit
Murata Electronics BLM18PG121SN1D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics BLM18PG121SN1D.
Murata Electronics BLM18PG121SN1D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics BLM18PG121SN1D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 0603 (1608 Metric) | |
| Number of Pins | 2Pins | |
| Material | Ferrite, Steel | |
| Core Material | Ferrite | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | EMIFIL®, BLM18 | |

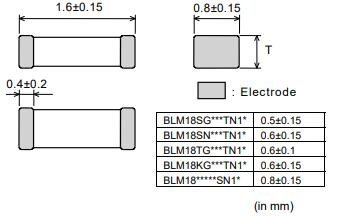

| Size / Dimension | 0.063Lx0.032W 1.60mmx0.80mm | |
| Tolerance | 25% | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Resistance | 50mOhm | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| HTS Code | 8504.50.80.00 | |
| Shielding | Unshielded | |
| Number of Functions | 1Function | |
| Depth | 800μm | |
| Construction | Chip Bead | |
| Current Rating | 2A | |
| Frequency | 100MHz | |
| Case Code (Metric) | 1608 | |
| Case Code (Imperial) | 0603 | |
| Test Frequency | 100MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Impedance | 120Ohm | |
| Max DC Current | 2A | |
| Filter Type | Power Line | |
| DC Current | 2A | |
| Number of Lines | 1Line | |
| DC Resistance (DCR) (Max) | 50mOhm | |
| Impedance @ Frequency | 120Ohm @ 100MHz | |
| Height | 800μm | |
| Width | 0.8mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Murata is a global leader in the design, manufacture and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.
