Getting Started | BME680 Temperature, Humidity, Pressure, Air Quality w/ Arduino ESP8266 | BRK-00019
SENSOR RH PRESSURE TEMP VOC
BME680 is a digital 4-in-1 sensor with gas, humidity, pressure and temperature measurement based on proven sensing principles. This article mainly covers pinout, datasheet, features, applications and more details about BME680.
BME680
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $11.59204 | $11.59 |
| 10+ | $10.93589 | $109.36 |
| 100+ | $10.31688 | $1031.69 |
| 500+ | $9.7329 | $4866.45 |
| 1000+ | $9.18198 | $9181.98 |

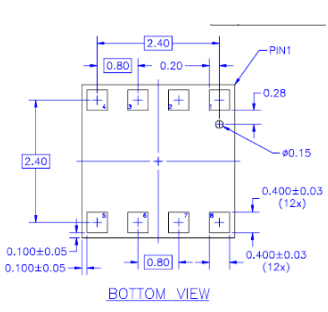

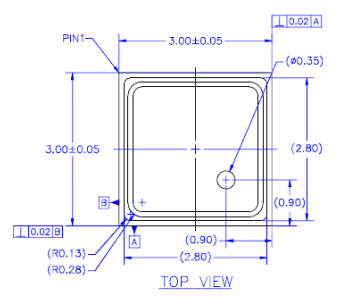

The BME680 is a digital 4-in-1 sensor with gas, humidity, pressure and temperature measurement based on proven sensing principles. The sensor module is housed in an extremely compact metal-lid LGA package with a footprint of only 3.0 × 3.0 mm² with a maximum height of 1.00 mm (0.93 ± 0.07 mm). Its small dimensions and its low power consumption enable the integration in battery-powered or frequency-coupled devices, such as handsets or wearables.
Symbol
Footprint
3D Model
Bosch Sensortec BME680 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BME680.
Bosch Sensortec BME680 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BME680.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| HTS Code | 8542.39.00.01 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | BOTTOM | |
| Terminal Form | BUTT | |
| Number of Functions | 1Function | |
| Reach Compliance Code | unknown | |
| JESD-30 Code | S-XBGA-B8 | |
| Output Type | I2C, SPI | |
| Interface | I2C, SPI | |
| Max Supply Voltage | 3.6V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Supply Voltage | 1.2V | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Accuracy | 3 % | |
| Sensor Type | Gas, Humidity, Pressure, Temperature | |
| Height | 1mm | |
| RoHS Status | ROHS3 Compliant |
Package 3.0 mm x 3.0 mm x 0.93 mm metal lid LGA
Digital interface I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V VDDIO interface voltage range: 1.2 V to 3.6 V
Current consumption 2.1 µA at 1 Hz humidity and temperature 3.1 µA at 1 Hz pressure and temperature 3.7 µA at 1 Hz humidity, pressure and temperature 0.09‒12 mA for p/h/T/gas depending on operation mode 0.15 µA in sleep mode
Operating range -40‒+85 °C, 0‒100% r.H., 300‒1100 hPa
Individual humidity, pressure and gas sensors can be independently enabled/disabled
The product is RoHS compliant, halogen-free, MSL1
Indoor air quality
Home automation and control
Internet of things
Weather forecast
GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)
Indoor navigation (change of floor detection, elevator detection)
Outdoor navigation, leisure and sports applications
Vertical velocity indication (rise/sink speed)
Bosch Sensortec GmbH is a fully owned subsidiary of Robert Bosch GmbH dedicated to the world of consumer electronics; offering a complete portfolio of micro-electro-mechanical systems (MEMS) based sensors and solutions that enable mobile devices to feel and sense the world around them. Bosch Sensortec develops and markets a broad portfolio of MEMS sensors, solutions and systems for applications in smart phones, tablets, wearable devices, and various products within the IoT (Internet of Things).
Download datasheets and manufacturer documentation for Bosch Sensortec BME680.
Download datasheets and manufacturer documentation for BME680
