BMI088 Series 3.6 V 6 Axis Digital Output Accelerometer Motion Sensor - LGA-16
BMI088 is an inertial measurement unit (IMU) for the detection of movements and rotations in 6 degrees of freedom(6DoF). This article mainly covers its datasheet, pinout, feature, comparison, and more details about BMI088
BMI088
BMI088 Pinout
Symbol
BMI088 Symbol
Footprint
BMI088 Footprint

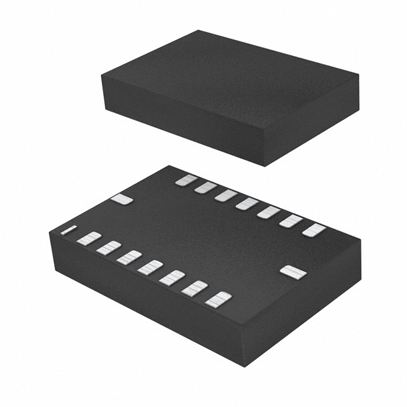

3D Model
BMI088 Footprint
BMI088 is an inertial measurement unit (IMU) for the detection of movements and rotations in 6 degrees of freedom(6DoF). It combines the functionality of two inertial sensors in one device: an advanced triaxial 16 -bit gyroscope and a versatile, leading-edge triaxial 16 -bit accelerometer.
BMI088 is designed to meet all requirements for high-performance consumer applications in harsh vibration environments such as those encountered in drones and robotics applications. The IMU is designed to effectively suppress vibrations above a few hundred Hz that could occasionally occur due to resonances on the PCB or the structure of the total system. The sensor has an extended measurement range of up to +24 g to avoid signal clipping under strong signal exposure.
|
Noise density (typ.) |
(A): 175 μg/√Hz |
|
Bandwidths (progr.) |
5 Hz … 523Hz |
|
Selectable output data rates |
12.5 Hz ... 2 kHz |
|
Digital inputs/outputs |
SPI, I²C, |
|
Supply voltage (VDD) |
2.4 ~3.6 V |
|
I/0 supply voltage (VDDIO) |
1.2 ~3.6 V |
|
Temperature range |
-40 ~+85°C |
|
Current consumption (full operation) |
5.15 mA |
|

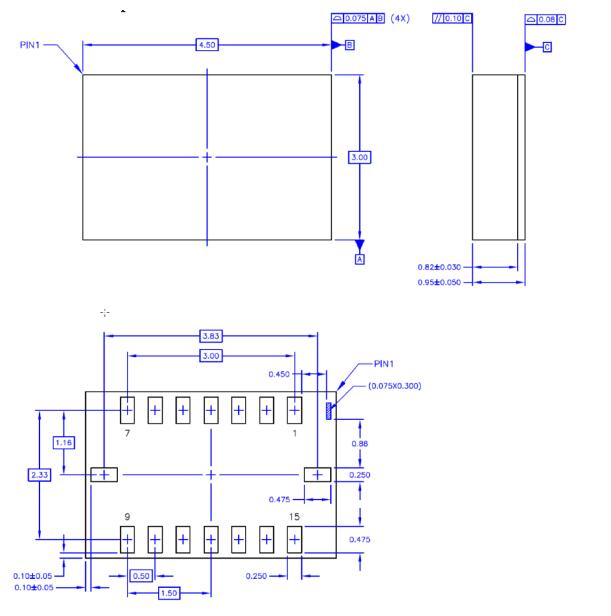

LGA package |
3 x 4.5 x 0.95 mm³ |
Drones
Robotics

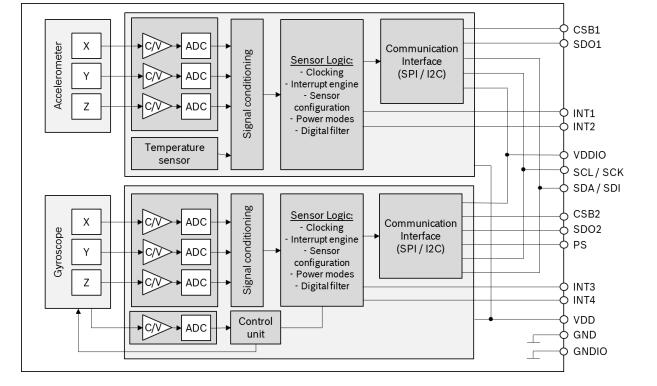

The following figure shows the basic building blocks of the BMI088:
BMI088 Block Diagram
Connection diagram SPI
Connection diagram I2C
The BMI088 supports two serial digital interface protocols for communication as a slave with a host
device: SPI and I2C. The active interface is selected by the state of the Pin#07 (PS) 'protocol select pin:
PS = 'VDDIO' selects I2C
PS = 'GND' selects SPI
Bosch Sensortec GmbH is a fully owned subsidiary of Robert Bosch GmbH dedicated to the world of consumer electronics; offering a complete portfolio of micro-electro-mechanical systems (MEMS) based sensors and solutions that enable mobile devices to feel and sense the world around them. Bosch Sensortec develops and markets a broad portfolio of MEMS sensors, solutions and systems for applications in smartphones, tablets, wearable devices, and various products within the IoT (Internet of Things).
Bosch Sensortec BMI088 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BMI088.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-VFLGA Module | |
| Operating Temperature | -40°C~85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Output Type | I2C, SPI |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensor Type | Accelerometer, Gyroscope, 6 Axis | |
| RoHS Status | ROHS3 Compliant |
Download datasheets and manufacturer documentation for BMI088
