BMM150 Series 3.6 V Surface Mount Three-Axis Geomagnetic Sensor - WLCSP-12
The BMM150 is a standalone geomagnetic sensor for consumer market applications. This article mainly covers datasheet, pinout, applications, features, and other details about BMM150.
BMM150
Symbol

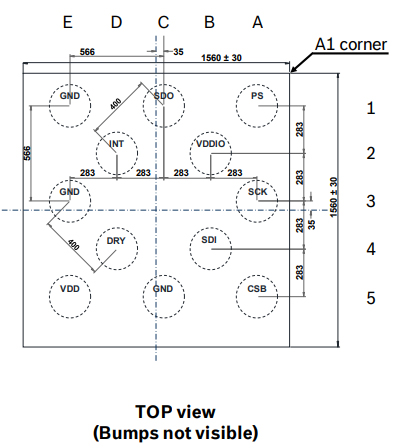

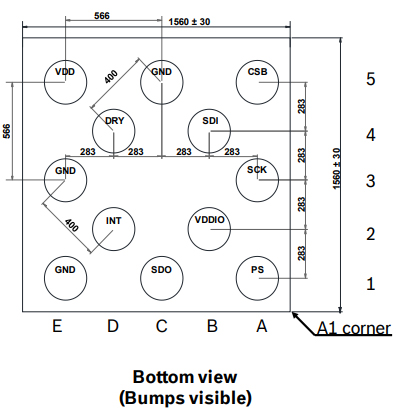

Footprint
3D Model
The BMM150 is a standalone geomagnetic sensor for consumer market applications. It allows measurements of the magnetic field in three perpendicular axes. Based on Bosch’s proprietary FlipCore technology, the performance and features of BMM150 are carefully tuned and perfectly match the demanding requirements of all 3-axis mobile applications such as electronic compass, navigation, or augmented reality.
Bosch Sensortec BMM150 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BMM150.
Bosch Sensortec BMM150 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BMM150.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-XFBGA, WLCSP | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 2012 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 12Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 1.62V~3.6V | |
| Current - Supply (Max) | 20mA | |
| Body Length or Diameter | 1.56mm | |
| Body Breadth | 1.56 mm | |
| Output Type | I2C, SPI | |
| Operating Supply Voltage | 3.6V | |
| Termination Type | SOLDER | |
| Bandwidth | 10Hz | |
| Resolution | 13 b | |
| Linearity | 1 % |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensing Method | Hall Effect | |
| Sensing Range | ±1.3mT (X,Y), ±2.5mT (Z) | |
| Ambient Temperature Range High | 85°C | |
| Axis | X, Y, Z | |
| Magnetic Field Range-Min | 1.2 mT | |
| Magnetic Field Range-Max | 2.5 mT | |
| Number of Axes | 3Axes | |
| Height | 595μm | |
| RoHS Status | ROHS3 Compliant |
BMM150 is a low-power and low-noise 3-axis digital geo-magnetic sensor to be used in eCompass applications. The 12- pin wafer level chip scale package (WLCSP) with a footprint of only 1.56 x 1.56 mm² and 0.60 mm height provides the highest design flexibility to the developer of mobile devices.
Magnetic heading information
Tilt-compensated electronic compass for map rotation, navigation and augmented reality
Gyroscope calibration in 9-DoF applications for mobile devices
In-door navigation, e.g. step counting in combination accelerometer
Gaming
Devoted to consumer electronics worldwide, Bosch Sensortec (fully owned by Robert Bosch GmbH as a subsidiary firm) provides a portfolio of MEMS(micro-electro-mechanical systems) based solutions and chips for applications in wearable devices, smartphones, tablets, and a number of products in the field of IoT(Internet of Things). With their great effort, more and more mobile devices are able to sense the world.
Download datasheets and manufacturer documentation for Bosch Sensortec BMM150.
Download datasheets and manufacturer documentation for BMM150
