BMP180 Digital Pressure Sensor: Datasheet, Pinout, Application

Symbol

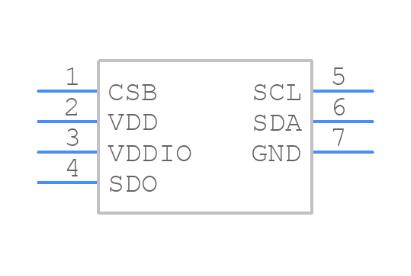

BMP180 Symbol

Footprint

BMP180 Footprint

3D Model

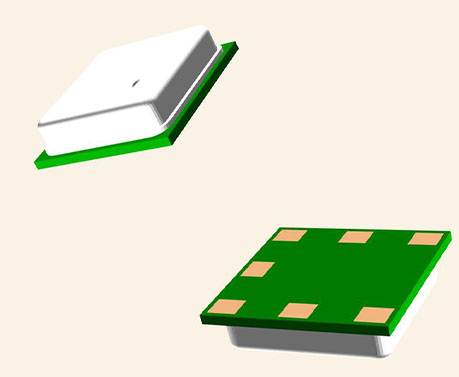

BMP180 3D Model

The BMP180 is the function compatible successor of the BMP085, a new generation of high precision digital pressure sensors for consumer applications. The ultra-low power, low voltage electronics of the BMP180 is optimized for use in mobile phones, PDAs, GPS navigation devices and outdoor equipment. With a low altitude noise of merely 0.25m at fast conversion time, the BMP180 offers superior performance. The I2C interface allows for easy system integration with a microcontroller. The BMP180 is based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability.

Bosch Sensortec BMP180 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BMP180.

• Pressure range: 300 ... 1100hPa (+9000m ... -500m relating to sea level)

• Supply voltage: 1.8 ... 3.6V (VDD)

• 1.62V ... 3.6V (VDDIO)

• Package: LGA package with metal lid

• Small footprint: 3.6mm x 3.8mm

• Super-flat: 0.93mm height

• Low power: 5µA at 1 sample / sec. in standard mode

• Low noise: 0.06hPa (0.5m) in ultra low power mode

• 0.02hPa (0.17m) advanced resolution mode

- Temperature measurement included

- I

• 2C interface

- Fully calibrated

- Pb-free, halogen-free and RoHS compliant,

- MSL 1

• Enhancement of GPS navigation (dead-reckoning, slope detection, etc.)

• In- and out-door navigation

• Leisure and sports

• Weather forecast

• Vertical velocity indication (rise/sink speed)

The BMP180 is designed to be connected directly to a microcontroller of a mobile device via the I2C bus. The pressure and temperature data have to be compensated by the calibration data of the E 2PROM of the BMP180.

The BMP180 consists of a piezo-resistive sensor, an analogue to digital converter and a control unit with E2PROM and a serial I2C interface. The BMP180 delivers the uncompensated value of pressure and temperature. The E2PROM has stored 176 bits of individual calibration data. This is used to compensate offset, temperature dependence and other parameters of the sensor.

· UP = pressure data (16 to 19 bit)

· UT = temperature data (16 bit)

BMP180 Typical application circuit

Devoted to consumer electronics worldwide, Bosch Sensortec (fully owned by Robert Bosch GmbH as a subsidiary firm) provides a portfolio of MEMS(micro-electro-mechanical systems) based solutions and chips for applications in wearable devices, smartphones, tablets, and a number of products in the field of IoT(Internet of Things). With their great effort, more and more mobile devices are able to sense the world.

Download datasheets and manufacturer documentation for Bosch Sensortec BMP180.
