IMU ACCEL/GYRO/MAG I2C 32BIT
The BNO080 is a System in Package (SiP) that integrates a triaxial accelerometer, triaxial gyroscope, magnetometer, and a 32-bit ARM® Cortex™-M0 microcontroller running Hillcrest’s SH-2 firmware. This article enforces datasheet, features, circuit, and other details about BNO080.
BNO080
The BNO080 is a System in Package (SiP) that integrates a triaxial accelerometer, triaxial gyroscope, magnetometer, and a 32-bit ARM® Cortex™-M0+ microcontroller running Hillcrest’s SH-2 firmware. The BNO080 is integrated into a single 28 pin LGA 3.8mm x 5.2mm x 1.1mm package. It is compatible with Android and provides a turn-key sensor hub solution, eliminating the complexity and investment associated with a discrete design.
Hillcrest Laboratories, Inc. BNO080 technical specifications, attributes, parameters and parts with similar specifications to Hillcrest Laboratories, Inc. BNO080.
Hillcrest Laboratories, Inc. BNO080 technical specifications, attributes, parameters and parts with similar specifications to Hillcrest Laboratories, Inc. BNO080.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 28-TFLGA Module | |
| Operating Temperature | -40°C~85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Output Type | I2C, SPI, UART |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensor Type | Accelerometer, Gyroscope, Magnetometer, 9 Axis | |
| RoHS Status | RoHS Compliant |
Symbol
Footprint

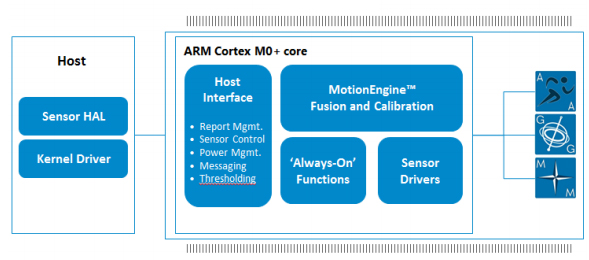

Motion Engine 9-Axis and 6-Axis Sensor Fusion: Provides raw, calibrated, and fused sensor orientation data with best in class accuracy and stability.
Application Based Fusion: Sensor fusion is tuned for the specific needs of AR, VR, and Robotics applications.
Intelligent Power Management: Manages sensor states to conserve power without sacrificing the quality of motion data.
Calibration: Support both Dynamic and Factory-Based calibration to deliver the highest performance.
Control via Ic, Spi, or Uart Interfaces: Freedom to optimize overall circuit design requirements.
Secondary Ic Interface: Allows attachment of additional environment sensors.
Always-On Capabilities: Includes software to enable low power, high accuracy step counter, and gesture recognition.
Android Compatible: Provides support for sensors defined in Android 5.x and 6.0, but can be used with any operating system.
The BNO080 can be used in many applications, but is tuned specifically for use in Virtual Reality, Augmented Reality, and Robotics applications. The BNO080 provides a head tracking solution for head-mounted displays (HMD).
CEVA TECHNOLOGIES - CEVA Technologies (NASDAQ: CEVA), is a leading global supplier of software, components, and intellectual property to enable the intelligent use of sensors in consumer electronics and IoT devices. For more than 10 years, Hillcrest Labs and Freespace? sensor processing technology has powered advanced motion controllers in a wide variety of products including Smart TVs, set-top boxes, PCs, and game consoles. Today, CEVA Hillcrest Labs products are used in the development of devices in virtual reality (VR), augmented reality (AR), robotics, TV, and motion remote control segments. Their proprietary and patented Freespace technology transforms human and machine movement into high-quality, application-ready information which enables developers and manufacturers to create everyday products that work with precision.
Download datasheets and manufacturer documentation for Hillcrest Laboratories, Inc. BNO080.
Download datasheets and manufacturer documentation for BNO080
