VISHAY BPW34 PHOTODIODE, 2NA, 900NM, RECTANGULAR BPW34 is a tiny, general-purpose PiN photodiode with high speed and high radiant sensitivity.
6886
Aug 5, 2021
Clancy
Is the BPW34 any good for Energy Harvesting? Volts? Amps?
VISHAY BPW34 PHOTODIODE, 2NA, 900NM, RECTANGULAR
BPW34 is a tiny, general-purpose PiN photodiode with high speed and high radiant sensitivity. It is commonly used in control and driver circuits. This article mainly introduce its package, pinout, datasheet and other detailed information about Vishay Semiconductor BPW34.
BPW34
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.26431 | $1.26 |
| 10+ | $1.19275 | $11.93 |
| 100+ | $1.12523 | $112.52 |
| 500+ | $1.06154 | $530.77 |
| 1000+ | $1.00145 | $1001.45 |
The BPW34 is a tiny, general-purpose PiN photodiode with high speed and high radiant sensitivity. It is commonly used in control and driver circuits. Aviliable in miniature, flat, top view, clear plastic package.
Because of it's short switching time (20nS), it can be used in isolated data communication circuits and other remote communications like TV sets, dimmers and other equipment.
Like all photo diode, the BPW34 is normally operated in series with a resistor and the current flowing though it depends on the amount of light falling on it. The intensity of light is measured in luminance. It is sensitive to visible and near infrared radiation.
This photodiode has a ton of uses, one of which is to use it is a mini solar cell to power your project. The cell is sensitive to a wide range of light wavelengths (430-1100nm), so it should produce power in a number of different settings. The rated open-circuit voltage is 350mV (900nm, 1mW/cm2 light source), and short circuit current is 47μA.
Symbol

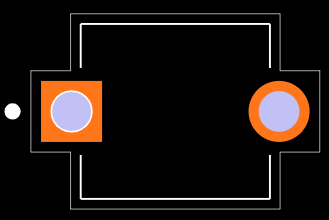

Footprint
3D Model

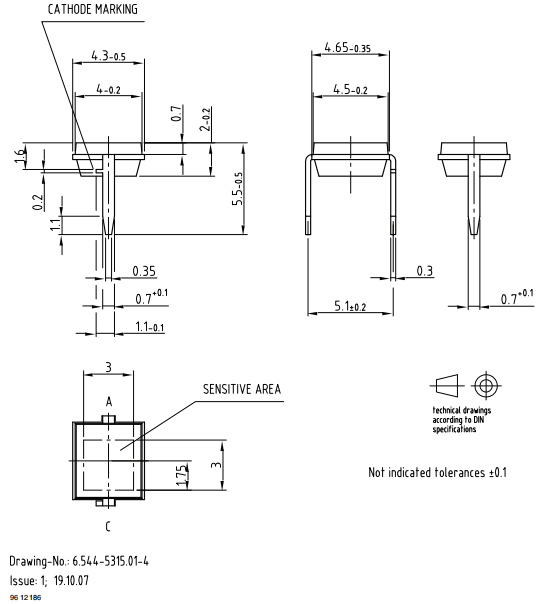

▲ Package type : leaded
▲ Package form : top view
▲ Radiant sensitive area (in mm2) : 7.5
▲ High photo sensitivity
▲ High radiant sensitivity
▲ Suitable for visible and near infrared radiation
▲ Fast response times
▲ Angle of half sensitivity: ϕ = ± 65°
▲ Lead (Pb)-free, RoHS compliant* 5.4x4.3x3.2 mm
▲ Off-state voltage : 60V
▲ Wavelength of max. photosensitivity : 900nm
▲ Transmission angle : 130o
▲ Photoelectric current : 50uA
▲ Reverse Breakdown Voltage: 60V
▲ Switching Speed: 20nS
▲ Diode Capacitance: 70pF (1MHz, Vr=0V)
▲ Open Circuit Voltage: 350mV
▲ Rise and Fall time: 100ns (each)
Vishay Semiconductor Opto Division BPW34 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division BPW34.
OSRAM Opto Semiconductors Inc. BPW34 technical specifications, attributes, parameters and parts with similar specifications to OSRAM Opto Semiconductors Inc. BPW34.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Tin | |
| Mount | PCB, Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 2-DIP (0.213, 5.40mm) | |
| Number of Pins | 2Pins | |
| Housing Material | Plastic | |
| Breakdown Voltage / V | 60V | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 100°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Capacitance | 70pF | |
| Max Power Dissipation | 150mW | |
| Polarity | Reverse | |
| Diode Type | PIN | |
| Power Dissipation | 150mW | |
| Viewing Angle | 120° | |
| Forward Current | 100mA | |
| Response Time | 20ns | |
| Voltage - DC Reverse (Vr) (Max) | 32V | |
| Rise Time | 20ns | |
| Forward Voltage | 1.3V | |
| Fall Time (Typ) | 20 ns |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 60V | |
| Reverse Breakdown Voltage | 32V | |
| Reverse Voltage (DC) | 32V | |
| Dark Current | 2nA | |
| Spectral Range | 400nm ~ 1100nm | |
| Active Area | 7mm2 | |
| Current - Dark (Typ) | 2nA | |
| Height | 2.2mm | |
| Length | 4.5mm | |
| Width | 4mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
● Switching circuits
● Isolation circuits
● Coupling circuits
● High speed photo detector
● Electronic Equipment — Industrial Automation (Machine Controls, Light
● Barriers, Vision Controls)
Vishay's product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets.
Download datasheets and manufacturer documentation for Vishay Semiconductor Opto Division BPW34.
