BQ2005S is a fast-charge IC for dual battery packs. This article covers more detailed information about BQ2005S.
BQ2005S Fast- Charge IC: Datasheet, Alternatives, Block Diagram
Switch-mode NiCd/NiMH battery charger for sequential charging of dual battery packs 20-SOIC -20 to 70 BQ2005S is a fast-charge IC for dual battery packs. This article covers more detailed information about BQ2005S.
26
Sep 9, 2021
Emma Edison
BQ2005S
3080In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.61981 | $9.62 |
| 10+ | $9.07529 | $90.75 |
| 100+ | $8.5616 | $856.16 |
| 500+ | $8.07698 | $4038.49 |
| 1000+ | $7.61979 | $7619.79 |
Unit Price:$9.61981
Subtotal: $9.62
Quick Links

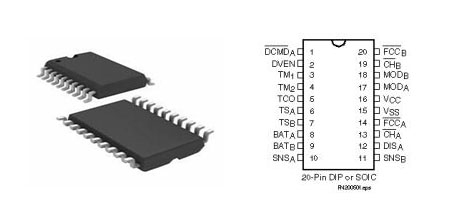

BQ2005S Pinout
BQ2005S CAD Model

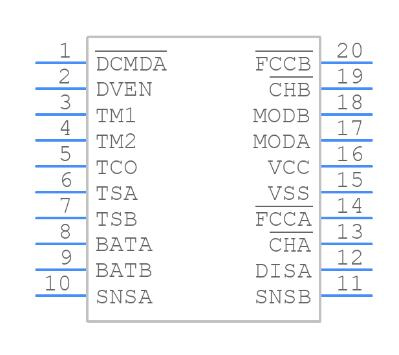

Symbol
B2005S Symbol

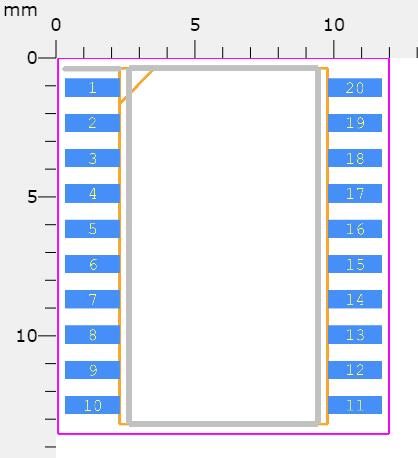

Footprint
BQ2005S Footprint

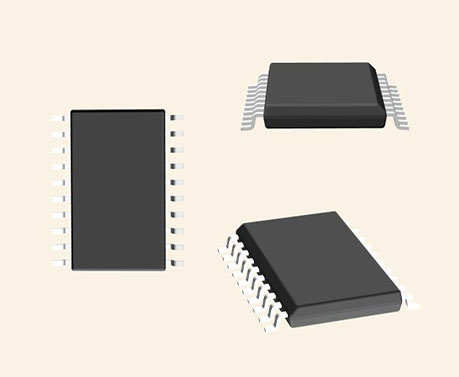

3D Model
BQ2005S 3D Model
BQ2005S Description
The BQ2005S Fast-Charge IC provides comprehensive fast charge control functions together with high-speed switching power control circuitry on a monolithic CMOS device for sequential charge management in dual battery pack applications.
Specifications
Texas Instruments BQ2005S technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments BQ2005S.
BQ2005S Tech Specifications
BQ2005S Tech Specifications
Texas Instruments BQ2005S technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments BQ2005S.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-SOIC (0.295, 7.50mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 20Pins | |
| Weight | 537.308512mg | |
| SwitchingFrequency | 300kHz | |
| Operating Temperature | -20°C~70°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 20Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Additional Feature | DUAL BATTERY FAST CHARGER | |
| HTS Code | 8542.39.00.01 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 1.27mm | |
| Base Part Number | BQ2005 | |
| Pin Count | 20 | |
| Operating Supply Voltage | 5V | |
| Input Voltage-Nom | 5V | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 4.5V | |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER | |
| Output Current | 2A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Input Voltage | 4.5V | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Nominal Input Voltage | 5.5V | |
| Switcher Configuration | PUSH-PULL | |
| Battery Chemistry | Multi-Chemistry | |
| Number of Cells | 1234Cells | |
| Programmable Features | Timer, Voltage | |
| Current - Charging | Constant Pulsed | |
| Height | 2.65mm | |
| Length | 12.8mm | |
| Width | 7.5mm | |
| Thickness | 2.35mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
BQ2005S Features
* Sequential fast charge and conditioning of two NiCd or NiMH nickel-cadmium or nickel-metal hydride battery packs
* Hysteretic PWM switch-mode current regulation or gated control of an external regulator
* Easily integrated into systems or used as a stand-alone charger
* Pre-charge qualification of temperature and voltage
* Direct LED outputs display battery and charge status
* Fast-charge termination by temperature /D time, -DV, maximum voltage, maximum temperature, and maximum time
* Optional top-off and pulse-trickle charging
BQ2005S Advantage
The advantages of BQ2005S Fast-Charge IC is below:
Integration of closed-loop current control circuitry allows the BQ2005S to be the basis of a cost-effective solution for stand-alone and system-integrated chargers for batteries of one or more cells. Switch-activated dis-charge-before-charge allows BQ2005S-based chargers to support battery conditioning and capacity determination. High-efficiency power conversion is accomplished in the BQ2005S is a hysteretic PWM controller for switch-mode regulation of the charging current. The BQ2005S may alternatively be used to gate an externally regulated charging current.
BQ2005S Alternatives
| Parts | Description | Manufacturer |
| BQ2005STRG4 POWER CIRCUITS | Switch-mode NiCd/NiMH battery charger for sequential charging of dual battery packs 20-SOIC -20 to 70 | Texas Instruments |
| BQ2005STR POWER CIRCUITS | Switch-mode NiCd/NiMH battery charger for sequential charging of dual battery packs 20-SOIC -20 to 70 | Texas Instruments |
| BQ2005S POWER CIRCUITS | Battery Charge Controller, CMOS, PDSO20, | Benchmarq Microelectronics Inc |

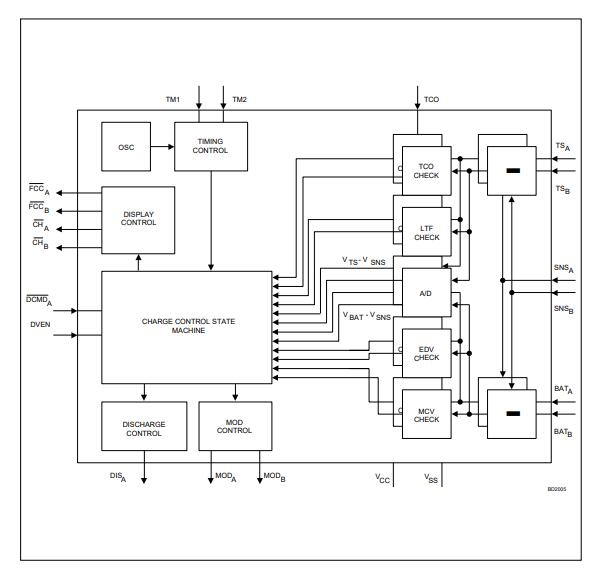

BQ2005S Block Diagram

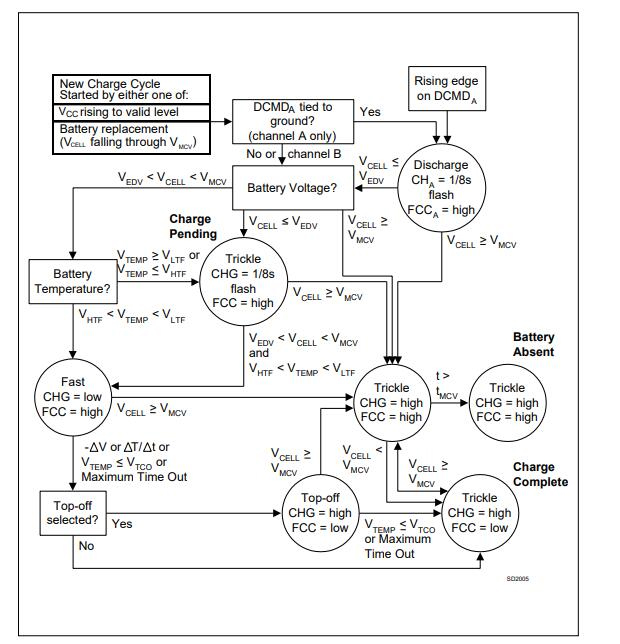

BQ2005S State Diagram
BQ2005S Dimensions
Texas Instruments (TI) is a global semiconductor firm originating in 1958 and nowadays it has over 30,000 employees who design, conduct and sell analogue and product-differentiating embedded processing components in 35 countries. Aimed at changing the world of tech, TI has put great effort into becoming the solution provider coupled with a vision.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments BQ2005S.
BQ2005S Documents
BQ2005S Documents
Download datasheets and manufacturer documentation for BQ2005S
Frequently Asked Questions
What is BQ2005S?
The bq2005s Fast-Charge IC provides comprehensive fast charge control functions together with high-speed switching power control circuitry on a monolithic CMOS device for sequential charge management in dual battery pack applications.
Does fast charge really work?
Fast charging technologies are most effective when your battery is less than 50% full but has a diminishing impact on charge time once the battery passes 80%. Incidentally, constant current charging is the least detrimental period to the battery's long-term health.
What package is BQ2005S available in?
It is available in a 20-Pin SOIC package.
How can the fast charge begin ?
The fast charge may begin with the application of the charging supply, replacement of the battery, or switch depression. For safety, fast charge is inhibited unless/until the battery temperature and voltage is within configured limits.
FAQ
What is BQ2005S?
The bq2005s Fast-Charge IC provides comprehensive fast charge control functions together with high-speed switching power control circuitry on a monolithic CMOS device for sequential charge management in dual battery pack applications.
Does fast charge really work?
Fast charging technologies are most effective when your battery is less than 50% full but has a diminishing impact on charge time once the battery passes 80%. Incidentally, constant current charging is the least detrimental period to the battery's long-term health.
What package is BQ2005S available in?
It is available in a 20-Pin SOIC package.
How can the fast charge begin ?
The fast charge may begin with the application of the charging supply, replacement of the battery, or switch depression. For safety, fast charge is inhibited unless/until the battery temperature and voltage is within configured limits.
