BQ51050BRHLR: Wireless Power Receiver
The BQ51050BRHLR is a Qi-compliant wireless power receiver with an integrated Li-Ion/LiPol battery charge controller designed for portable applications. The article is going to introduce the features, applications, and other details of the device.
37
Feb 11, 2022
Gloria Pope
BQ51050BRHLR
20000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.33342 | $4.33 |
| 10+ | $4.08813 | $40.88 |
| 100+ | $3.85672 | $385.67 |
| 500+ | $3.63842 | $1819.21 |
| 1000+ | $3.43247 | $3432.47 |
Unit Price:$4.33342
Subtotal: $4.33
Quick Links
BQ51050BRHLR Description
The BQ51050BRHLR is a Qi-compliant wireless power receiver with an integrated Li-Ion/LiPol battery charge controller designed for portable applications. The bq5105xB devices enable efficient AC-DC power conversion, a digital controller required to comply with the Qi v1.2 communication protocol, and the required control algorithms for efficient and safe Li-Ion and LiPol battery charging.

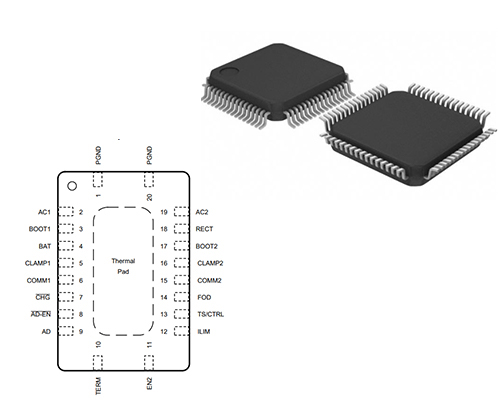

BQ51050BRHLR Pinout
BQ51050BRHLR CAD Model
Symbol

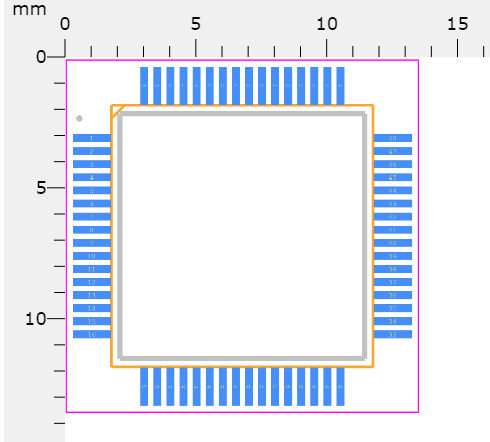

Footprint

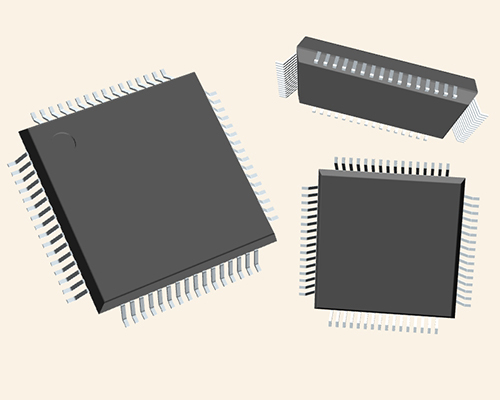

3D Model
BQ51050BRHLR Features
• Single-Stage Wireless Power Receiver and Li-Ion/Li-Pol Battery Charger
– Combines Wireless Power Receiver, Rectifier, and Battery Charger in a Single, Small Package
– 4.20-V, 4.35-V, and 4.40-V Output Voltage Options
– Supports a Charging Current up to 1.5 A
– 93% Peak AC-DC Charging Efficiency
• Robust Architecture
– 20-V Maximum Input Voltage Tolerance, With Input Overvoltage Protection
– Thermal Shutdown and Overcurrent Protection
– Temperature Monitoring and Fault Detection
• Compatible With WPC v1.2 Qi Industry Standard
• Power Stage Output Tracks Rectifier and Battery Voltage to Ensure Maximum Efficiency Across the Full Charge Cycle
• Available in Small DSGBA and VQFN Packages

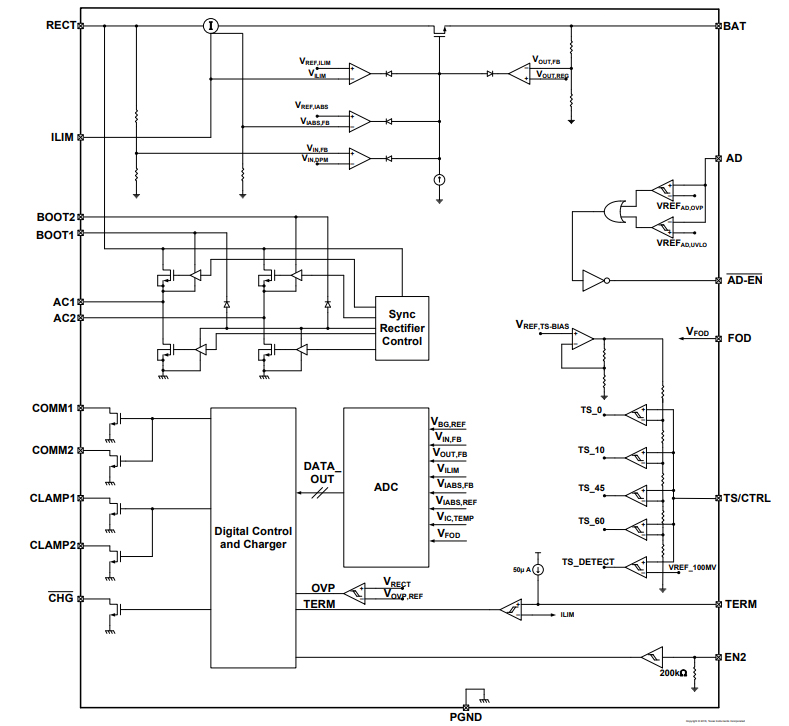

BQ51050BRHLR Functional Block Diagram

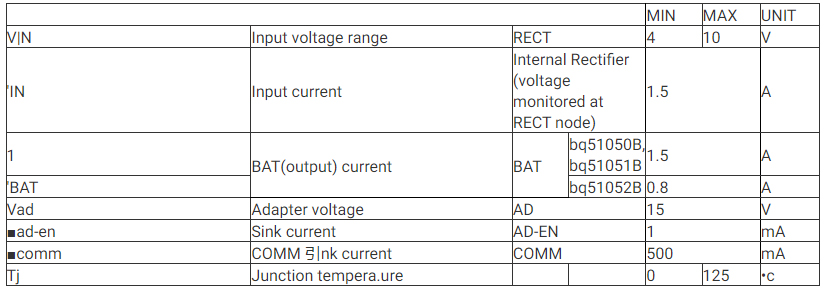

BQ51050BRHLR Recommended Operating Conditions

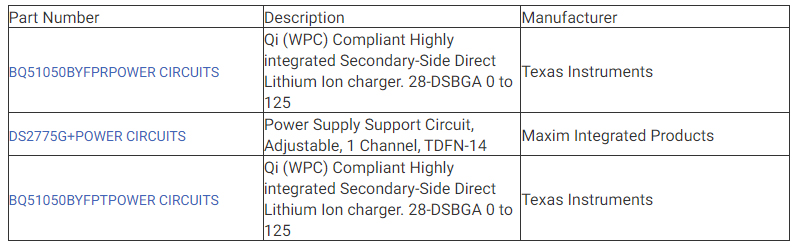

BQ51050BRHLR Equivalents
Specifications
NA BQ51050BRHLR technical specifications, attributes, parameters and parts with similar specifications to NA BQ51050BRHLR.
BQ51050BRHLR Tech Specifications
BQ51050BRHLR Tech Specifications
Texas Instruments BQ51050BRHLR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments BQ51050BRHLR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-VFQFN Exposed Pad | |
| Number of Pins | 20Pins | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 20Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Applications | Wireless Power Receiver | |
| HTS Code | 8542.39.00.01 | |
| Voltage - Supply | 4V~10V | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | BQ51050 | |
| Qualification Status | Not Qualified | |
| Output Voltage | 4.2V | |
| Power Supplies | 4/10V | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Supply Current | 8mA | |
| Output Current | 1.5A | |
| Logic Function | Receiver | |
| Supply Current-Max (Isup) | 10mA | |
| Threshold Voltage | 15 | |
| Height | 1mm | |
| Length | 4.5mm | |
| Width | 3.5mm | |
| Thickness | 900μm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
BQ51050BRHLR Applications
• Battery Packs
• Cell Phones and Smart Phones
• Headsets
• Portable Media Players
• Other Handheld Devices

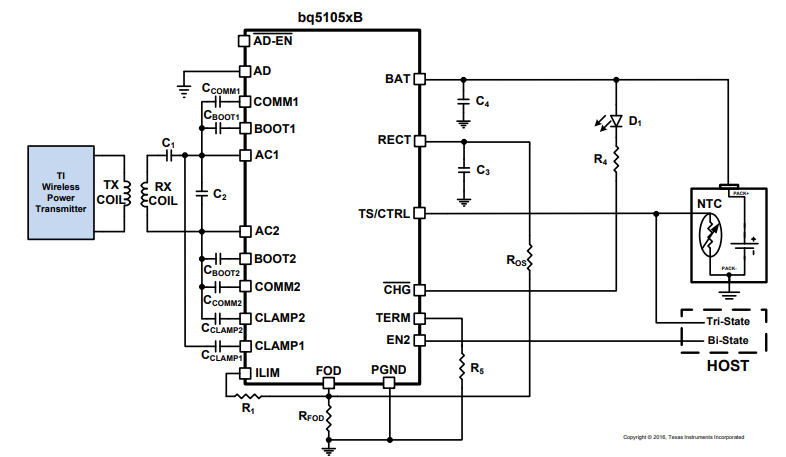

BQ51050BRHLR Typical Application Circuit
BQ51050BRHLR Typical Application Circuit

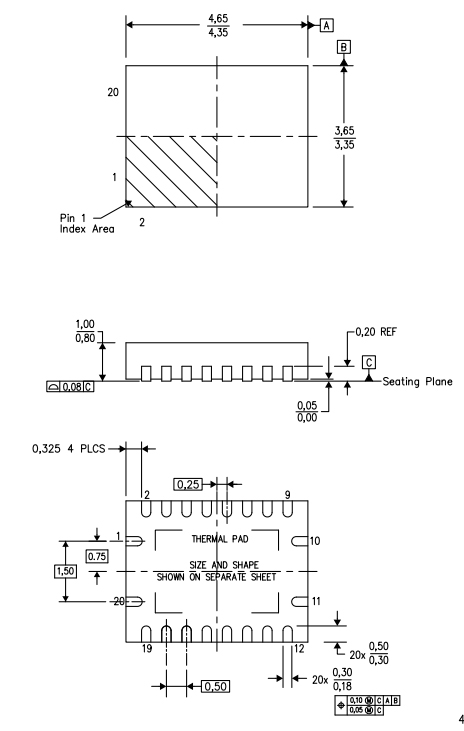

BQ51050BRHLR Package
BQ51050BRHLR Manufacturer
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Datasheet PDF
BQ51050BRHLR Documents
BQ51050BRHLR Documents
Download datasheets and manufacturer documentation for BQ51050BRHLR
Frequently Asked Questions
What is BQ51050BRHLR?
The BQ51050BRHLR is a Qi-compliant wireless power receiver with an integrated Li-Ion/LiPol battery charge controller designed for portable applications. The bq5105xB devices enable efficient AC-DC power conversion, a digital controller required to comply with the Qi v1.2 communication protocol, and the required control algorithms for efficient and safe Li-Ion and LiPol battery charging.
What is the recommended operating temperature of the component?
-40°C~105°C TA.
What is the package of the device?
20-VFQFN Exposed Pad.
What is the component’s number of pins?
20.
FAQ
What is BQ51050BRHLR?
The BQ51050BRHLR is a Qi-compliant wireless power receiver with an integrated Li-Ion/LiPol battery charge controller designed for portable applications. The bq5105xB devices enable efficient AC-DC power conversion, a digital controller required to comply with the Qi v1.2 communication protocol, and the required control algorithms for efficient and safe Li-Ion and LiPol battery charging.
What is the recommended operating temperature of the component?
-40°C~105°C TA.
What is the package of the device?
20-VFQFN Exposed Pad.
What is the component’s number of pins?
20.
