How to make a simple LED light sensor (MOSFET transistor BS170, LEDs as photovoltaic cells)
FAIRCHILD SEMICONDUCTOR BS170.....MOSFET Transistor, N Channel, 500 mA, 60 V, 1.2 ohm, 10 V, 2.1 V
Hi fellas, I am back to give you a post about electronic components BS170. BS170 is a well-known N channel MOSFET manufactured in the TO-92 package. This article mainly introduces pinout, equivalent, datasheet, and other detailed information about On Semiconductor BS170.
BS170
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.67961 | $0.68 |
| 10+ | $0.64114 | $6.41 |
| 100+ | $0.60485 | $60.49 |
| 500+ | $0.57061 | $285.3 |
| 1000+ | $0.53831 | $538.31 |
BS170 is a well-known N channel MOSFET manufactured in the TO-92 package. produced using Fairchild's proprietary high-density DMOS cell technology.
This ultra-high-density process is designed to minimize resistance in the state while providing robust, reliable, and fast switching performance.
It can be used for both switching and amplification purposes. When used as a switch it can drive a load of 500mA. It is able to perform fast switching and capable to switch load in around 7 nanoseconds due to which it can be used in high-speed circuits.
It can also perform well on low voltage due to which it is an ideal MOSFET to use in portable and battery-operated applications. Other than that it can also be used as an amplifier and you can use it in your audio amplifier circuits and also for any general-purpose signal amplification requirements.
It is also suitable for low voltage and low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Symbol

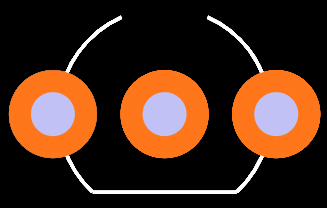

Footprint

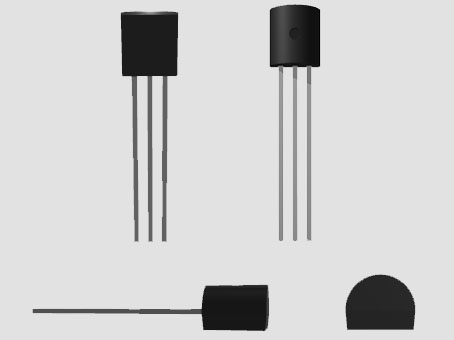

3D Model
-Available in a TO-92 package
-Transistor Type: N Channel
-Voltage Applied From Drain to Source: 60V(Maximum)
-Gate to Source Voltage Should Be: ±20V(Maximum)
-Continues Drain Current is: 500mA(Maximum)
-Pulsed Drain Current is: 500mA(Maximum)
-Power Dissipation is: 830mW(Maximum)
-Voltage Required to Conduct: 0.8V(Minimum)
-Storage & Operating temperature Should Be: -55 to +150 Celsius
-Pb-Free device
-Low Offset and Error Voltage
-Easily Driven Without Buffer
-High-Density Cell Design to Minimize ON-state Resistance-RDS(ON)
-Voltage Controlled Small Signal Switch
-High Saturation Current Capability
-Rugged and Reliable
-Fast Switching (TON = 4ns)
ON Semiconductor BS170 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BS170.
ON Semiconductor BS170 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BS170.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 11 Weeks | |
| Contact Plating | Copper, Silver, Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-92-3 | |
| Weight | 4.535924g | |
| Current - Continuous Drain (Id) @ 25℃ | 500mA Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 830mW Ta | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Bulk | |
| Published | 2005 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Resistance | 5Ohm | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Voltage - Rated DC | 60V | |
| Current Rating | 500mA | |
| Base Part Number | BS170 | |
| Voltage | 60V | |
| Element Configuration | Single | |
| Current | 5A | |
| Power Dissipation | 830mW | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 200mA, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 1mA | |
| Input Capacitance (Ciss) (Max) @ Vds | 40pF @ 10V | |
| Drain to Source Voltage (Vdss) | 60V | |
| Vgs (Max) | ±20V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Continuous Drain Current (ID) | 500mA | |
| Threshold Voltage | 2.1V | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain to Source Breakdown Voltage | 60V | |
| Input Capacitance | 24pF | |
| Drain to Source Resistance | 5Ohm | |
| Rds On Max | 5 Ω | |
| Nominal Vgs | 2.1 V | |
| Height | 5.33mm | |
| Length | 5.2mm | |
| Width | 4.19mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
BS170 can be used for any general-purpose switching and amplification purposes, it can be used as a switch to drive loads under 500mA which is enough drain current to drive most of the relays, lamps, LEDs, etc. Additionally, it can also be used at the output of microcontrollers and platforms like Arduino and raspberry pi to drive loads.
On the other hand, it can also be used as an audio amplifier, in audio amplifier stages, low-level signal amplification, etc. Wiring the MOSFETs are almost the same as we wire BJT transistors. In MOSFETs, the Gate is used to control the transistor whereas in BJT it is Base, but the BJTs are current control devices and MOSFETs are voltage control devices. And the gate in MOSFETs requires a small amount of voltage to control current through its Drain to Source.
In this circuit, we are just turning ON/OFF an LED using BS170 n-channel MOSFET. Here, the Gate and Drain terminal is connected through a 5v DC source, and LED is connected to the Source. As the gate pulse is applied by turning ON the switch, MOSFET conducts current through Drain to Source, and LED starts glowing. LED remains ON until the gate pulse is applied. As the gate pulse is removed LED turns OFF.
-Used in Fast Switching
-Used in Switching or driving loads under 500mA
-Used in Audio Amplification & Pre Amplification
-Used in Output of Microcontrollers
-Used in Output of ICS
-Used in Various types of signal amplification
-Used in Electronic Equipment — Industrial Automation (Machine Controls, Light Barriers, Vision Controls)
-Used in Battery operated systems
-Used in Solid-state relays
-Used in Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
-Used in Direct Logic-Level Interface: TTL/CMOS
ON Semiconductor is a semiconductor supplier company. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices, and design centers in North America, Europe, and the Asia Pacific regions. Its headquarter is in Phoenix, Arizona.
Download datasheets and manufacturer documentation for ON Semiconductor BS170.
Download datasheets and manufacturer documentation for BS170
