BSS138-7-F N-Chanel MOSFET: BSS138-7-F, Datasheet, Pinout

MOSFET N-CH 50V 200MA SOT23-3 BSS138-7-F is an N-CHANNEL Enhancement Mode MOSFET. This article mainly covers its datasheet, pinout, alternatives and more details about BSS138-7-F.

Mar 15, 2022

Glenn Tracy

Choosing Switching MOSFET for 3.3v powered system

MOSFET N-CH 50V 200MA SOT23-3

BSS138-7-F is an N-CHANNEL Enhancement Mode MOSFET. This article mainly covers its datasheet, pinout, alternatives and more details about BSS138-7-F.

BSS138-7-F

69000In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$0.19496	$0.19
10+	$0.18393	$1.84
100+	$0.17352	$17.35
500+	$0.1637	$81.85
1000+	$0.15443	$154.43

Unit Price:$0.19496

Subtotal: $0.19

Quick Links

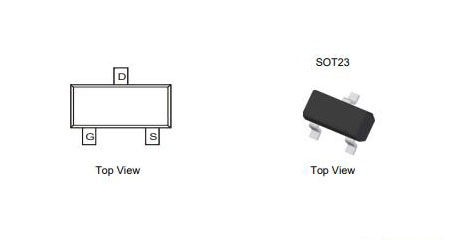

BSS138-7-F PInout

BSS138-7-F Pinout

BSS138-7-F Equivalent Circuit

The following circuit shows the equivalent circuit of BSS138-7-F:

BSS138-7-F Equivalent Circuit

BSS138-7-F CAD Model

Symbol

BSS138-7-F Symbol

Footprint

BSS138-7-F Footprint

BSS138-7-F Description

BSS138-7-F MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

BSS138-7-F Feature

 Low On-Resistance
 Low Gate Threshold Voltage
 Low Input Capacitance
 Fast Switching Speed
 Low Input/Output Leakage
 For automotive applications requiring specific change control

BSS138-7-F Application

 System/Load Switch

BSS138-7-F Alternatives

The alternatives for BSS138-7-F:

BSS138LT1G
BSS138-T
UBSS138
UBSS138TA
BSS138T2

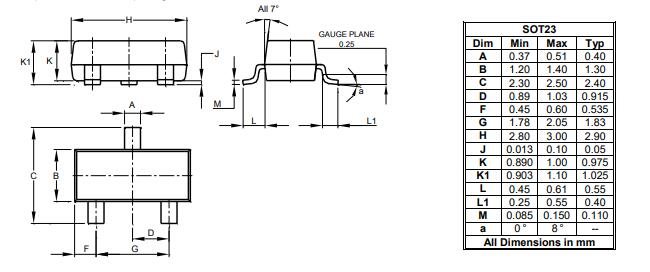

BSS138-7-F Package

BSS138-7-F Package

BSS138-7-F Manufacturer

Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analogue, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.

Specifications

BSS138-7-F Tech Specifications

Diodes Incorporated BSS138-7-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated BSS138-7-F.

Product Attribute	Attribute Value
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Number of Pins	3Pins
Weight	7.994566mg
Transistor Element Material	SILICON
Current - Continuous Drain (Id) @ 25℃	200mA Ta
Drive Voltage (Max Rds On, Min Rds On)	10V
Number of Elements	1 Element
Power Dissipation (Max)	300mW Ta
Turn Off Delay Time	20 ns
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2003
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Product Attribute	Attribute Value
Number of Terminations	3Terminations
ECCN Code	EAR99
Resistance	3.5Ohm
Additional Feature	HIGH RELIABILITY, LOW THRESHOLD
Voltage - Rated DC	50V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Current Rating	200mA
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	3
Qualification Status	Not Qualified
Number of Channels	1Channel
Voltage	50V
Element Configuration	Single
Current	2A
Operating Mode	ENHANCEMENT MODE
Power Dissipation	300mW
Turn On Delay Time	20 ns
FET Type	N-Channel

Product Attribute	Attribute Value
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	3.5 Ω @ 220mA, 10V
Vgs(th) (Max) @ Id	1.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 10V
Rise Time	10ns
Vgs (Max)	±20V
Fall Time (Typ)	25 ns
Continuous Drain Current (ID)	200mA
Threshold Voltage	1.2V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	50V
Nominal Vgs	1.2 V
Feedback Cap-Max (Crss)	8 pF
Height	1mm
Length	2.9mm
Width	1.3mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
