MOSFET N-CH 50V 220MA SOT-23

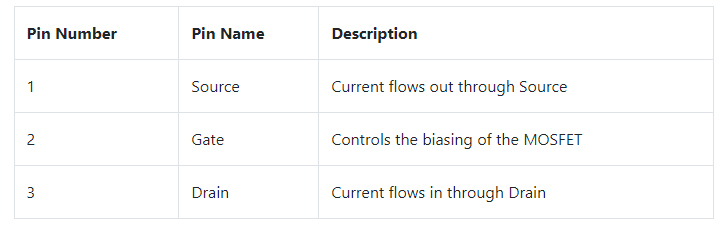

The BSS138 is a compact Logic Level N-Channel Mosfet. BSS138 has very low threshold voltage of 0.5V and hence can be used with any low voltage application circuits and for level shifting applications. This article mainly covers pinout, datasheet, features and other details of BSS138.
BSS138
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.35766 | $0.36 |
| 10+ | $0.33741 | $3.37 |
| 100+ | $0.31831 | $31.83 |
| 500+ | $0.30029 | $150.15 |
| 1000+ | $0.2833 | $283.3 |
BSS138 is an SMD Package Logic Level N-Channel MOSFET with low on-state resistance (3.5Ω) and low input capacitance (40 pF). This product has been designed to minimize on-state resistance while providing rugged, reliable, and fast switching performance. The BSS138 is particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.

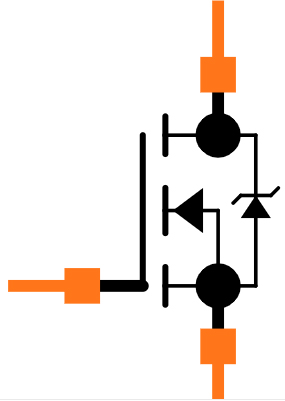

Symbol

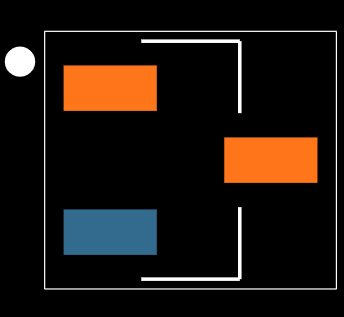

Footprint
ON Semiconductor BSS138 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BSS138.
ON Semiconductor BSS138 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BSS138.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | SOT-23-3 | |
| Weight | 30mg | |
| Current - Continuous Drain (Id) @ 25℃ | 220mA Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 360mW Ta | |
| Turn Off Delay Time | 20 ns | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2002 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | SMD/SMT | |
| Resistance | 6Ohm | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Voltage - Rated DC | 50V | |
| Current Rating | 220mA | |
| Base Part Number | BSS138 | |
| Element Configuration | Single | |
| Power Dissipation | 360mW | |
| Turn On Delay Time | 2.5 ns | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 220mA, 10V | |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA | |
| Input Capacitance (Ciss) (Max) @ Vds | 27pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 2.4nC @ 10V | |
| Rise Time | 9ns | |
| Drain to Source Voltage (Vdss) | 50V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 9 ns | |
| Continuous Drain Current (ID) | 220mA | |
| Threshold Voltage | 1.3V | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain to Source Breakdown Voltage | 50V | |
| Dual Supply Voltage | 50V | |
| Input Capacitance | 27pF | |
| Drain to Source Resistance | 3.5Ohm | |
| Rds On Max | 3.5 Ω | |
| Nominal Vgs | 1.3 V | |
| Height | 930μm | |
| Length | 2.92mm | |
| Width | 1.3mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
0.22 A, 50 V. RDS(ON) = 3.5Ω @ VGS = 10 V RDS(ON) = 6.0Ω @ VGS = 4.5 V
High density cell design for extremely low RDS(ON)
Rugged and Reliable
Compact industry standard SOT-23 surface mount package
Low current and Low Voltage switching applications
Logic Level Shifters
DC-DC converts
eMobility applications
Application where low on-state resistance is required.
Power management applications
