BSS138LT1G Power MOSFET: Pinout, Datasheet, and Applications

MOSFET N-CH 50V 200MA SOT-23 The BSS138LT1G is an N-channel Power MOSFET designed for use in DC-to-DC converters,

116

Jul 18, 2021

Sam Marshall

Working of a Logic Level Shifter

MOSFET N-CH 50V 200MA SOT-23

The BSS138LT1G is an N-channel Power MOSFET designed for use in DC-to-DC converters, power management in portable and battery-powered products.

BSS138LT1G

549000In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$0.2381	$0.24
10+	$0.22462	$2.25
100+	$0.21191	$21.19
500+	$0.19992	$99.96
1000+	$0.1886	$188.6

Unit Price:$0.2381

Subtotal: $0.24

Quick Links

BSS138LT1G Description

The BSS138LT1G is an N-channel Power MOSFET designed for use in DC-to-DC converters, power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.

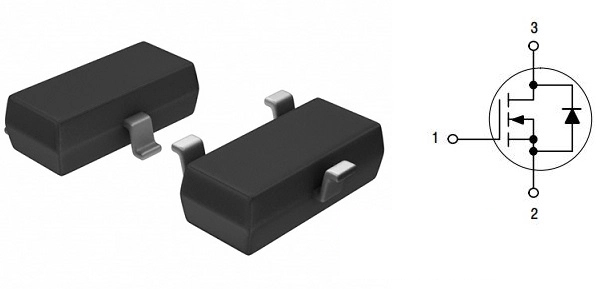

BSS138LT1G Pinout

BSS138LT1G CAD Model

Symbol

Footprint

3D Model

BSS138LT1G Features

Low threshold voltage (VGS(th): 0.5 V−1.5 V) makes it ideal for low voltage applications
Miniature SOT−23 surface mount package saves board space
BVSS prefix for automotive and other applications requiring unique site and control change requirements; AEC−Q101 qualified and PPAP capable
PB−free, halogen free/BFR free and RoHS compliant

Specifications

ON Semiconductor BSS138LT1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BSS138LT1G.

BSS138LT1G Tech Specifications

ON Semiconductor BSS138LT1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BSS138LT1G.

Product Attribute	Attribute Value
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	14 Weeks
Contact Plating	Tin
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Number of Pins	3Pins
Transistor Element Material	SILICON
Current - Continuous Drain (Id) @ 25℃	200mA Ta
Drive Voltage (Max Rds On, Min Rds On)	5V
Number of Elements	1 Element
Power Dissipation (Max)	225mW Ta
Turn Off Delay Time	20 ns
Operating Temperature	-55°C~150°C TJ
Packaging	Cut Tape (CT)
Published	2005
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active

Product Attribute	Attribute Value
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3Terminations
ECCN Code	EAR99
Resistance	3.5Ohm
Voltage - Rated DC	50V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Current Rating	200mA
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	3
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	225mW
Turn On Delay Time	20 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	3.5 Ω @ 200mA, 5V
Vgs(th) (Max) @ Id	1.5V @ 1mA

Product Attribute	Attribute Value
Halogen Free	Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Vgs (Max)	±20V
Continuous Drain Current (ID)	200mA
Threshold Voltage	1.5V
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	0.2A
Drain to Source Breakdown Voltage	50V
Nominal Vgs	1.5 V
Feedback Cap-Max (Crss)	5 pF
Height	1.01mm
Length	3.04mm
Width	1.4mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

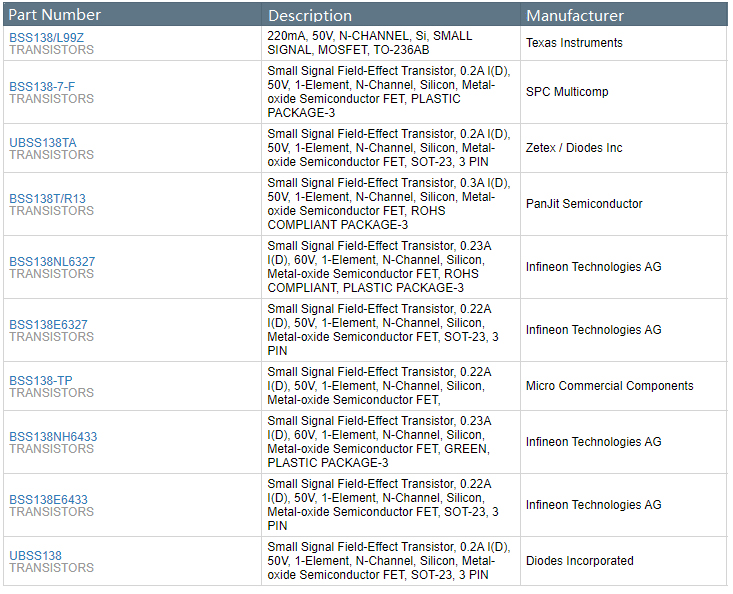

View Similar

BSS138LT1G Functional Alternatives

DC-DC converters
Printers
PCMCIA cards
Power management in portable and battery-powered products such as computers
Cellular and cordless telephones

BSS138LT1G Package

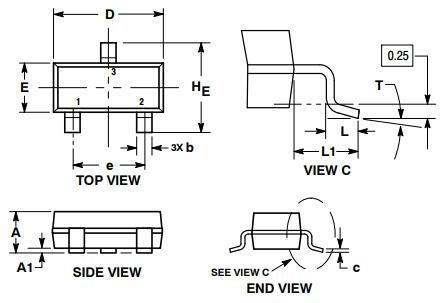

BSS138LT1G Package Outline

BSS138LT1G Mechanical Data

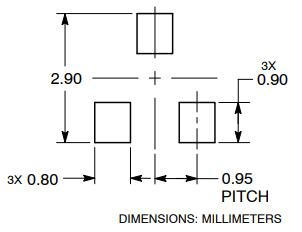

BSS138LT1G Recommended Soldering Footprint

BSS138LT1G Manufacturer

ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
