BT134 Series Triacs: Pinout, Datasheet, BT134 vs. BT136

BT134 Pinout

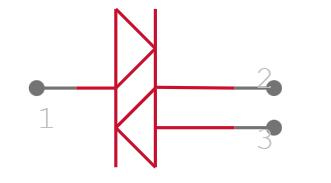

Symbol

BT134 Symbol

Footprint

BT134 Footprint

3D Model

BT134 3D Model

BT134 series is planar passivated very sensitive gate four quadrant triac s in a SOT82 plastic package intended for use in general-purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants. This "series D  " triac "is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

• Compact package

• Direct interfacing to logic level ICs

• Direct interfacing to low power gate drive circuits

• High blocking voltage capability

• Low holding current for low current loads and lowest EMI at commutation

• Planar passivated for voltage ruggedness and reliability

• Triggering in all four quadrants

• Very sensitive gate

• General purpose low power motor control

• Home appliances

• Industrial process control

BT134 Package

WeEn Semiconductors Co., Ltd, is the global joint venture between  NXP Semiconductors  N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January 2016 with the business and operations centre located in Shanghai, China. WeEn Semiconductors is registered in Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.

WeEn Semiconductors BT134-600D,127 technical specifications, attributes, parameters and parts with similar specifications to WeEn Semiconductors BT134-600D,127.
