TRIAC SENS GATE 600V 4A TO220AB The BT136 is TRIAC with 4A maximum terminal current. This post mainly covers datasheet, pinout, circuit, equivalents, use, and other details about BT136 Triac. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome your RFQ!
2008
Sep 23, 2021
Wendy Francis
BT136 BASIC WORKING OF BT136 TRIAC
TRIAC SENS GATE 600V 4A TO220AB
The BT136 is TRIAC with 4A maximum terminal current. This post mainly covers datasheet, pinout, circuit, equivalents, use, and other details about BT136 Triac. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome your RFQ!
BT136-600E/02,127
The BT136 is TRIAC with 4A maximum terminal current. The BT136's gate threshold voltage is likewise very low, allowing it to be driven by digital circuits. TRIACs are often utilized for switching AC applications since they are bi-directional switching devices.

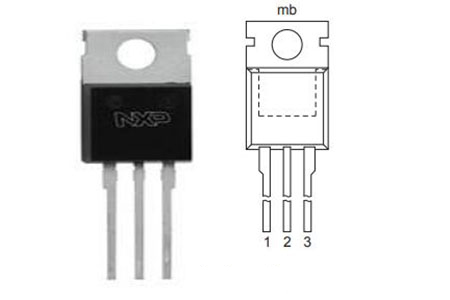

| Pin Number | Pin Name | Description |
| 1 | Main Terminal 1 | Connected to Phase or neutral of AC mains |
| 2 | Main Terminal 2 | Connected to Phase or neutral of AC mains |
| 3 | Gate | Used to trigger the SCR. |

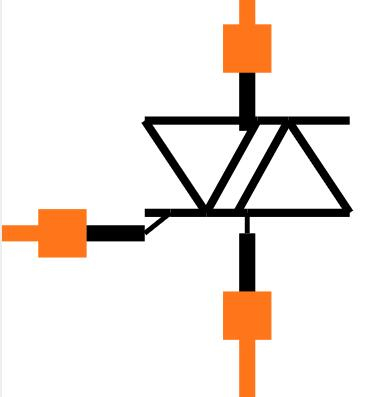

BT136 Symbol

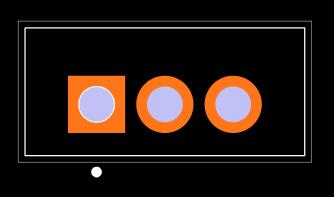

BT136 Footprint
NXP USA Inc. BT136-600E/02,127 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. BT136-600E/02,127.
NXP USA Inc. BT136-600E/02,127 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. BT136-600E/02,127.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Surface Mount | NO | |
| Voltage-Off State | 600V | |
| Operating Temperature | 125°C TJ | |
| Packaging | Tube | |
| Published | 2011 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Base Part Number | BT136 | |
| Pin Count | 3 | |
| Configuration | Single | |
| Trigger Device Type | TRIAC | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25A 27A | |
| Current - Gate Trigger (Igt) (Max) | 10mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Hold (Ih) (Max) | 15mA | |
| Current - On State (It (RMS)) (Max) | 4A | |
| Repetitive Peak Off-state Voltage | 600V | |
| Leakage Current (Max) | 0.5mA | |
| Triac Type | Logic - Sensitive Gate | |
| Holding Current-Max | 15mA | |
| Source Url Status Check Date | 2013-06-14 00:00:00 | |
| RoHS Status | ROHS3 Compliant |
High blocking voltage capability
Low holding current for low current loads and lowest EMI at commutation
Planar passivized for voltage ruggedness and reliability
Sensitive gate
Triggering in all four quadrants
General Purpose Switching
AC Light dimmers
Strode lights
AC motor speed control
Noise coupling circuits
Controlling AC loads using MCU/MPU
Ac/DC Power control
BT139, BTA16, BT169, Q4008
BT136 Circuit
The TRIAC in this circuit is controlled by the switch; when the switch is pressed, the TRIAC closes the connection between the AC bulb and the AC mains. For this to happen, the TRIAC's gate pin must be exposed to a voltage larger than the threshold gate voltage, as well as a current greater than the gate trigger current. This will activate the TRIAC.
Because the TRIAC and SCR have many of the same features, the TRIAC will not turn off when the gate voltage is removed, just like the SCR. To switch off the SCR again, we need a particular form of circuit called a commutation circuit. Normally, this commutation is accomplished by lowering the load current (forced commutation) to a level lower than the holding current. To put it another way, the TRIAC will stay on only as long as the load current exceeds the TRIAC's holding current.

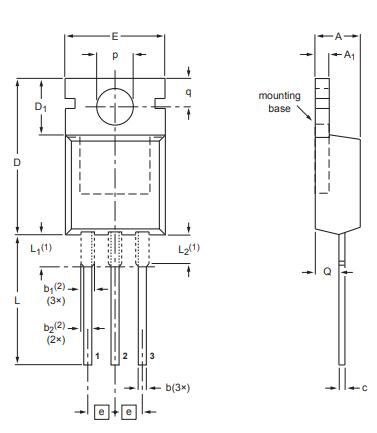

BT136 Package Dimensions
NXP Semiconductors is dedicated to providing secure connectivity solutions for embedded applications. The company has 45,000 employees in more than 35 countries and has been operating, with its experience and expertise, for more than 60 years. As a leader in this field, NXP is driving innovation in the secure connected vehicle, end-to-end security & privacy, and smart connected solutions markets, with the hope of making lives easier, better, and safer free scale Semiconductor parts are now a part of the NXP family
Download datasheets and manufacturer documentation for NXP USA Inc. BT136-600E/02,127.
Download datasheets and manufacturer documentation for BT136-600E/02,127
