Thyristors - TRIACs TRIAC 600V 16A TO220AB
BT139 triac is passivated, sensitive gate triac in a plastic envelope, intended for use in general-purpose bidirectional switching and phase control applications. This article mainly introduces features, pinout, datasheet and other information about WeEn Semiconductors BT139.
BT139-600,127
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.53206 | $1.53 |
| 10+ | $1.44534 | $14.45 |
| 100+ | $1.36353 | $136.35 |
| 500+ | $1.28635 | $643.18 |
| 1000+ | $1.21354 | $1213.54 |
BT139 from WeEn Semiconductors is a 4Q triac. Four quadrants planar passivated triac in a SOT78 (TO-220AB) plastic package for applications demanding high bidirectional transient and blocking voltage capabilities as well as good thermal cycling performance.
Pinout
| Pin Number | Pin Name | Description |
| 1 | T1 | main terminal 1 |
| 2 | T2 | main terminal 2 |
| 3 | G | gate |
| mb | T2 | mounting base; main terminal 2 |
The followings are BT139 Symbol, Footprint and 3D Model.
Symbol
Footprint

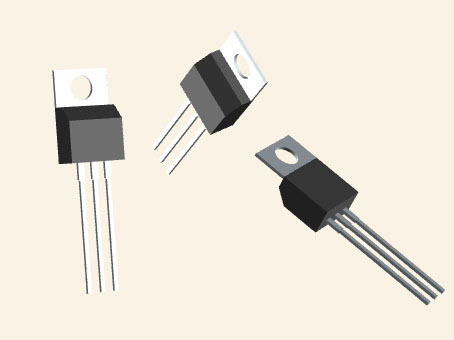

3D Model
• High Blocking Voltage Capability
• Planar Passivated for Voltage Ruggedness and Reliability
• Less Sensitive Gate for High Noise Immunity
• Triggering in All Four Quadrants
WeEn Semiconductors BT139-600,127 technical specifications, attributes, parameters and parts with similar specifications to WeEn Semiconductors BT139-600,127.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Surface Mount | NO | |
| Number of Elements | 1 Element | |
| Voltage-Off State | 600V | |
| Operating Temperature | 125°C TJ | |
| Packaging | Tube | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| HTS Code | 8541.30.00.80 | |
| Base Part Number | BT139 | |
| Reference Standard | IEC-60134 | |
| JESD-30 Code | R-PSFM-T3 | |
| Configuration | Single | |
| Case Connection | MAIN TERMINAL 2 | |
| JEDEC-95 Code | TO-220AB | |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 155A 170A | |
| Current - Gate Trigger (Igt) (Max) | 35mA | |
| Current - Hold (Ih) (Max) | 45mA | |
| Current - On State (It (RMS)) (Max) | 16A | |
| Repetitive Peak Off-state Voltage | 600V | |
| Triac Type | Standard | |
| RoHS Status | RoHS Compliant |

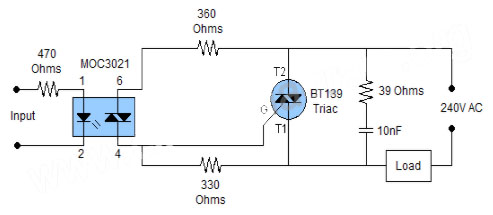

This article outlines a basic solid-state relay project that can be used to replace electromagnetic relays. The circuit can readily drive a 1000 watt AC load. You can use a higher value triac, such as BTA41 or similar, to drive more load. Any traic you use will require a proper heat sink.
solid state relay
There are several advantages to employing a solid-state relay over an electromagnetic relay. A few of the most important advantages are dependability, quick switching speed, output current control, noise reduction, low current drive (minimum 5mA), and low voltage drive (as low as 3.6V DC).
Only a BT139 triac, a MOC3021 optocoupler, and a few additional discrete components are used in the circuit. The input can come from any device, such as microcontrollers, CMOS ICs, Arduino , and so on.
| Part Number | Description | Manufacturer |
| BT139B-600FTRIGGER DEVICES | 600V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-263AB, PLASTIC, D2PAK-3 | NXP Semiconductors |
| Q6016NH4TRIGGER DEVICES | Alternistor TRIAC, 600V V(DRM), 16A I(T)RMS, TO-263AB, TO-263, D2PAK-3 | Littelfuse Inc |
| BT139B-600F/T3TRIGGER DEVICES | TRIAC, 600 V, 16 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-263AB, PLASTIC, D2PAK-3 | NXP Semiconductors |
| BT139B-600ETRIGGER DEVICES | 600V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-263AB, PLASTIC, D2PAK-3 | NXP Semiconductors |
| BT139B-600E,118TRIGGER DEVICES | BT139B-600E | NXP Semiconductors |
| T1635-600G-TRTRIGGER DEVICES | 16A Snubberless™ Triacs in D2PAK | STMicroelectronics |
| 934048050118TRIGGER DEVICES | 600V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, PLASTIC, D2PAK-3 | NXP Semiconductors |
| BT139B-600F,118TRIGGER DEVICES | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3/2 | WeEn Semiconductor Co Ltd |
| 934048490118TRIGGER DEVICES | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3 | WeEn Semiconductor Co Ltd |
| BT139B-600G,118TRIGGER DEVICES | BT139B-600G | NXP Semiconductors |
• General Purpose Motor Controls
• General Purpose Switching
• Motor Drive & Control
• Power Management
• Consumer Electronics
• Portable Devices
• Industrial

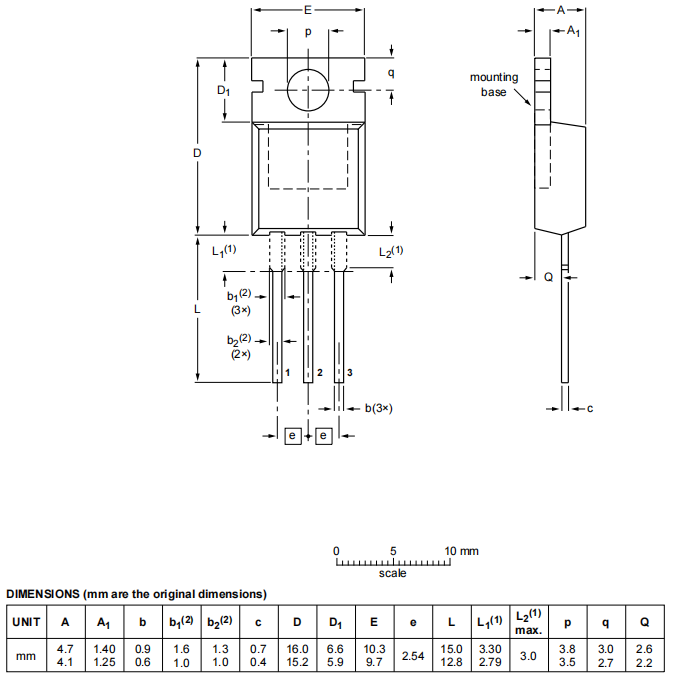

The following figure is the Package of BT139.
Package
WeEn Semiconductors Co., Ltd is a Chinese semiconductor company based in Shang , China. It was created in January 2016 and is registered in Nanchang, China. In Jilin, Shanghai, Hong Kong, the United Kingdom, and other places, it has expanded its subsidiaries and branches. WeEn is committed to provide a broad range of innovative bipolar power products based on their cutting-edge bipolar power technology. Silicon controlled rectifiers, power diodes, high voltage transistors, and silicon carbide are among the goods that are widely utilized in markets such as automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management. They want to improve China's development by making manufacturing more intelligent and cost-effective.
Download datasheets and manufacturer documentation for BT139-600,127
