BTA12 is a 12 A Snubberless™, logic level and standard triacs. This article mainly introduces features, pinout, datasheet and other detailed information about STMicroelectronics BTA12.

BTA12-700BRG

80In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $2.34671$2.35
10+ $2.21388$22.14
100+ $2.08856$208.86
500+ $1.97034$985.17
1000+ $1.85881$1858.81
Unit Price:$2.34671
Subtotal: $2.35
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

BTA12 Description

The BTA12 triac family consists of glass passivated PNPN devices with good performance.

These components are appropriate for general-purpose applications that demand a high surge current capacity. Phase control and static switching on inductive or resistive loads are examples of applications.

BTA12 Pinout

The Pinout of BTA12 is shown as follows.

Pinout

BTA12 CAD Model

The followings are BTA12 Footprint and 3D Model.

Footprint

3D Model

BTA12 Features

• High Surge Current Capability

• Commutation: (dV/dt)c > 5 V/µs

• High Commutation (4Q) or Extremely High Commutation (3Q) Capability

• Low Thermal Resistance with Clip Bonding

• Low Thermal Resistance Insulating Ceramic for Insulated BTA

• UL1557 Certified BTA Series (File ref: 81734)

•  RoHS  (2002/95/EC) Compliant Packaging

• Medium Current Triac

Specifications

BTA12-700BRG Tech Specifications

STMicroelectronics BTA12-700BRG technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BTA12-700BRG.

Product Attribute Attribute Value
Factory Lead Time19 Weeks
Contact PlatingTin
MountThrough Hole
Mounting TypeThrough Hole
Package / CaseTO-220-3
Number of Pins3Pins
Weight6.000006g
Operating Temperature-40°C~125°C TJ
PackagingTube
Part StatusActive
Moisture Sensitivity Level (MSL)Not Applicable
Product Attribute Attribute Value
ECCN CodeEAR99
Voltage - Rated DC700V
Current Rating12A
Base Part NumberBTA12
ConfigurationSingle
Max Repetitive Reverse Voltage (Vrrm)700V
RMS Current (Irms)12A
Hold Current50mA
Trigger Device TypeTRIAC
Voltage - Gate Trigger (Vgt) (Max)1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm)120A 126A
Product Attribute Attribute Value
Current - Gate Trigger (Igt) (Max)50mA
Leakage Current (Max)0.5mA
Critical Rate of Rise of Off-State Voltage-Min100V/us
Triac TypeStandard
On-State Voltage-Max1.5V
Critical Rate of Rise of Commutation Voltage-Min10V/us
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

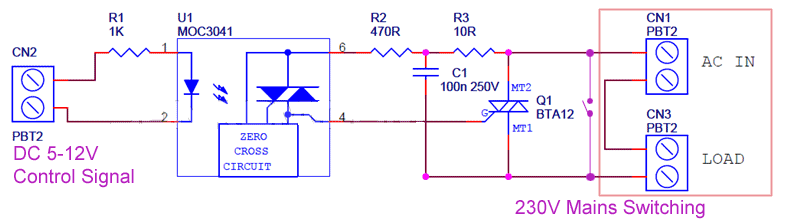

BTA12 Typical Application

The following figure is to switch AC mains.

Typical Application

BTA12-600B Equivalent

BTA16600B, BTA12800B, BTA16600B, BTA16800B, BTA20600B, BTA20800B, BTA24600B, BTA24800B.

BTA12 Alternatives

Part Number Description Manufacturer
Q8012LH5TRIGGER DEVICES Alternistor TRIAC, 800V V(DRM), 12A I(T)RMS, TO-220AB, ROHS COMPLIANT, PLASTIC, ISOLATED TO-220AB, 3 PIN Littelfuse Inc
Q7012LH5TRIGGER DEVICES Alternistor TRIAC, 700V V(DRM), 12A I(T)RMS, TO-220AB, THERMOTAB-3 Littelfuse Inc
MAC212A10FPTRIGGER DEVICES 800V, 12A, 4 QUADRANT LOGIC LEVEL TRIAC, PLASTIC, TO-220FP, 3 PIN onsemi

BTA12 Applications

• ON/OFF

• Phase angle function in applications such as static relays

• Light dimmers and appliance motors speed controllers

• The snubberless versions (BTA/BTB...W and T12 series)

• The BTA series provides an insulated tab (rated at 2500 V RMS)

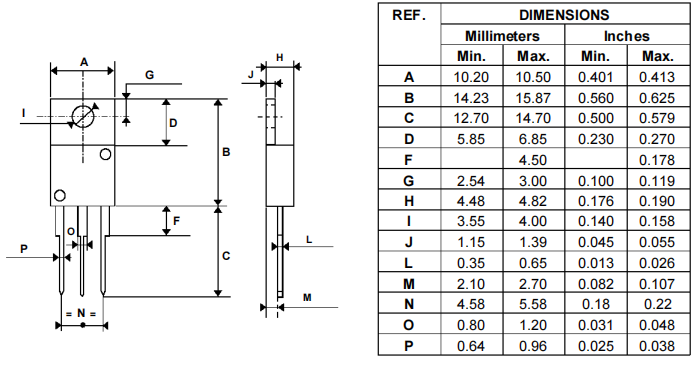

BTA12 Package

The following figure is the Package of BTA12 Package.



Package

BTA12 Manufacturer

STMicroelectronics, headquartered in Plan-les-Ouates, Switzerland, near Geneva, is a multinational electronics and semiconductors firm. The company was created in 1987 by the merger of two government-owned semiconductor companies: "Thomson Semiconductors" in France and "SGS Microelettronica" in Italy. It is known as "ST" and is the most profitable semiconductor chip producer in Europe. While the corporate headquarters and EMEA regional offices of STMicroelectronics are in Geneva, the holding company, STMicroelectronics N.V., is based in the Netherlands.

Datasheet PDF

BTA12-700BRG Documents

Download datasheets and manufacturer documentation for BTA12-700BRG

Frequently Asked Questions

1.Can the BTA12600B and BTA12800B be replaced?
When the voltage does not exceed 600V, they can be replaced with each other. It is necessary to pay attention to the replacement of the triode. Instead of using all the parameters of the triode, only some of the parameters are used. Therefore, the first replacement principle is to look at the function. For example, the triode used for high-frequency small-signal amplification mainly depends on the frequency of use of the triode. Second, look at the magnification. If it is used for low-frequency and high-power amplification, it mainly depends on the power, Uce (withstand voltage), Ice (maximum current) of the transistor, and secondly, the frequency of the transistor. For example, audio amplifier circuits have no requirements for frequency; power amplifiers and power supply circuits must pay attention to parameters such as Pcm and Vcb0; high frequency/intermediate frequency amplifiers and oscillation circuits must pay attention to the number of frequencies.
2.Can BTA12-600B and BTA12-600C be used in common?
The main data of BTA12-600B and BTA12-600C are the same, but some indicators are different. The maximum trigger current of BTA12-600B is 50MA; BTA12-600C is 25MA; The dv/dt voltage rise rate tolerance is also different, B-400 volts/microsecond; C-200 volts/microsecond. If the voltage change rate is not large in your application, or if it is zero-crossing conduction, the two can be used in common. If you use the occasion where the instantaneous voltage rise rate is very high, consider increasing the resistance and capacitance absorption, which can also be used universally.
3.Can the triac BTA12-600B be turned off?
Not only triacs, general unidirectional SCRs and standard SCRs can only control its turn-on, and turn-off is when the current flowing through it is small to a certain value (maintenance current ), and this will turn off the control pole naturally when there is no additional signal, so the thyristor is a bit more troublesome in use. When you want to turn it off when it is used in DC, you have to give it It can only be completed after it creates a condition that is smaller than its maintenance current.
4. What type of devices does the BTA12 triac family consist of?
Glass passivated PNPN devices with good performance.
5. What type of current capacity does the BTA12 triac require?
High surge current capacity.
6. What are examples of a BTA12 triac?
Phase control and static switching on inductive or resistive loads.
FAQ
1.Can the BTA12600B and BTA12800B be replaced?
When the voltage does not exceed 600V, they can be replaced with each other. It is necessary to pay attention to the replacement of the triode. Instead of using all the parameters of the triode, only some of the parameters are used. Therefore, the first replacement principle is to look at the function. For example, the triode used for high-frequency small-signal amplification mainly depends on the frequency of use of the triode. Second, look at the magnification. If it is used for low-frequency and high-power amplification, it mainly depends on the power, Uce (withstand voltage), Ice (maximum current) of the transistor, and secondly, the frequency of the transistor. For example, audio amplifier circuits have no requirements for frequency; power amplifiers and power supply circuits must pay attention to parameters such as Pcm and Vcb0; high frequency/intermediate frequency amplifiers and oscillation circuits must pay attention to the number of frequencies.
2.Can BTA12-600B and BTA12-600C be used in common?
The main data of BTA12-600B and BTA12-600C are the same, but some indicators are different. The maximum trigger current of BTA12-600B is 50MA; BTA12-600C is 25MA; The dv/dt voltage rise rate tolerance is also different, B-400 volts/microsecond; C-200 volts/microsecond. If the voltage change rate is not large in your application, or if it is zero-crossing conduction, the two can be used in common. If you use the occasion where the instantaneous voltage rise rate is very high, consider increasing the resistance and capacitance absorption, which can also be used universally.
3.Can the triac BTA12-600B be turned off?
Not only triacs, general unidirectional SCRs and standard SCRs can only control its turn-on, and turn-off is when the current flowing through it is small to a certain value (maintenance current ), and this will turn off the control pole naturally when there is no additional signal, so the thyristor is a bit more troublesome in use. When you want to turn it off when it is used in DC, you have to give it It can only be completed after it creates a condition that is smaller than its maintenance current.
4. What type of devices does the BTA12 triac family consist of?
Glass passivated PNPN devices with good performance.
5. What type of current capacity does the BTA12 triac require?
High surge current capacity.
6. What are examples of a BTA12 triac?
Phase control and static switching on inductive or resistive loads.
